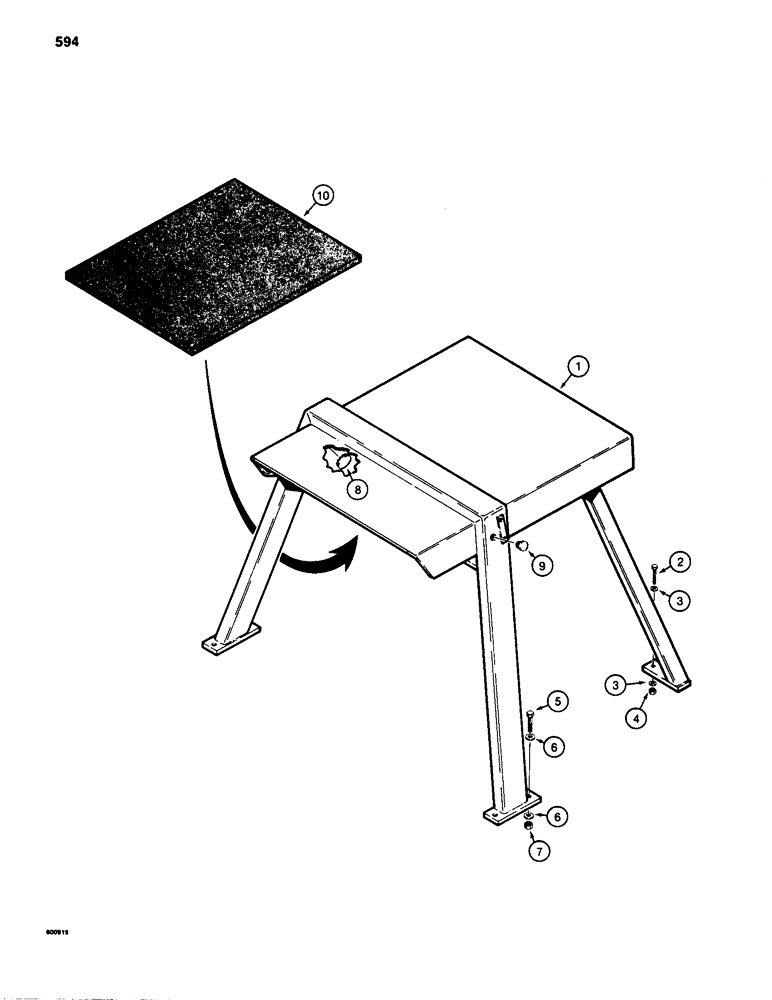

Запчасти Case 580SD (594) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

ROPS CANOPY - machinery item, see Figure 002 for ordering

1шт.

ROPS canopy - DO NOT use 480F ROPS on 580D (the 580D has a higher test weight and mounting would also need to be modified).

1шт.

WHOLEGOODS# D101451. SUBS TO COMPONENTS NOW. D125597 IS THE BARE ROPS FRAME.

1шт.

2

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

196-16

WASHER,.521" x 1" x .179", HDN

- 1/2", hardened, plated

8шт.

4

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

4шт.

5

113-739

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex head, 3/4" - 10 NC x 2-1/4", grade 8, plated

4шт.

6

196-31

WASHER

- 3/4", hardened, plated

8шт.

7

129-138

NUT,3/4"-10, G8

4шт.

8

205-72

HOLE PLUG BUTTON,3"

PLUG - button, steel, (76 mm) diameter, if used 3"

2шт.

9

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16" (30 mm) diameter, if used

2шт.

10

D84558

ROOF

PAD - noise reduction, canopy roof

1шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl. ounces (680 ml), not shown

1шт.
