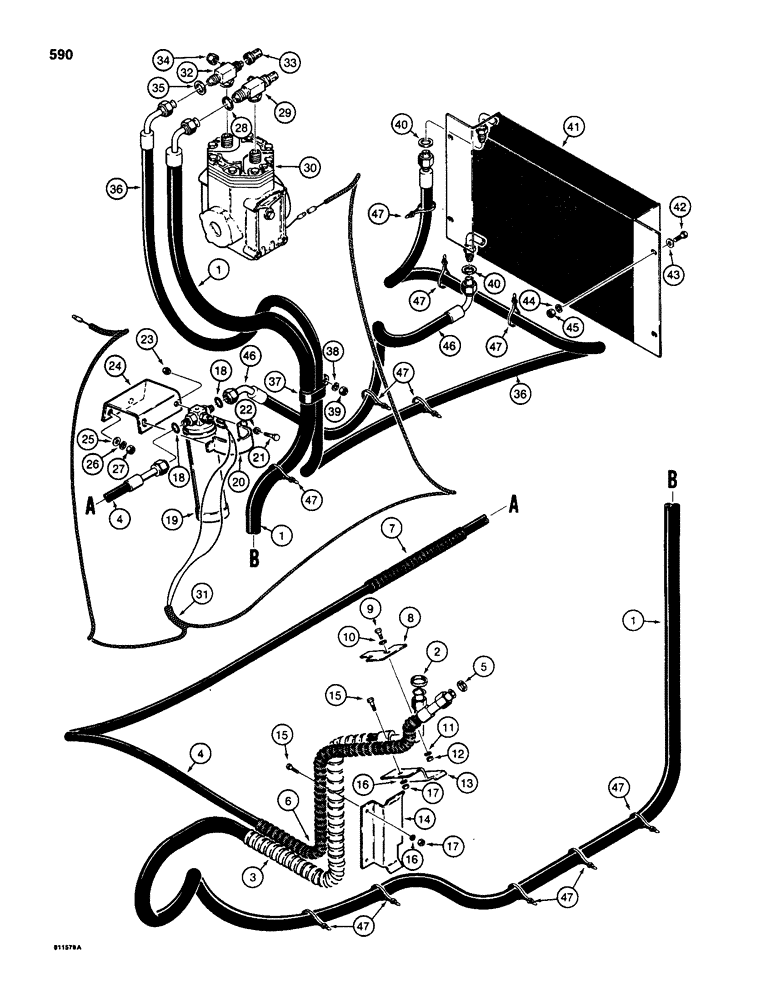

Запчасти Case 580SD (590) - AIR CONDITIONING LINES, WITH HOSES UNDER RIGHT-HAND FENDER (09) - CHASSIS/ATTACHMENTS

1

D120958

HOSE

-, Serial Range: cab-compressor

1шт.

2

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" OD tube end

1шт.

3

D121040

GUARD

- hose

1шт.

4

D121170

HOSE ASSY.

HOSE -, Serial Range: cab-receiver-drier

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

6

D121039

GUARD

SLEEVE - hose, under fender

1шт.

7

D94363

CONDUIT

GUARD - hose, front, under floor plate

1шт.

8

D92587

PLATE

- cover, right-hand fender

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

D120968

BRACKET

- hose retaining, upper

1шт.

14

D120967

BRACKET

- hose retaining, lower

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

18

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose, at receiver-drier

2шт.

19

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioner

1шт.

20

A61193

CLAMP

- receiver-drier mounting

1шт.

21

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

1шт.

24

D120070

BRACKET

- receiver-drier mounting

1шт.

25

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

2шт.

28

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" OD tube

1шт.

29

A42937

VALVE

- compressor inlet, 5/8" port, right-hand

1шт.

30

REF

INSTRUCTION

COMPRESSOR - air conditioner, parts list Figure 96, mounting parts Figure 100

1шт.

31

D122139

HARNESS

- air conditioner

1шт.

32

A145699

VALVE

- compressor, outlet, 1/2" port, left-hand, Includes: Ref. 33 and 34

1шт.

33

A42944

CAP

- sleeve valve stem

1шт.

34

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - seal, hex, valve stem

1шт.

35

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" OD tube

1шт.

36

D84795

HOSE

-, Serial Range: compressor-condenser

1шт.

37

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hoses, at engine manifold

1шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

40

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

41

D84781

CONDENSER

- coil, refrigerant cooler

1шт.

42

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

43

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

46

D84791

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

47

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
