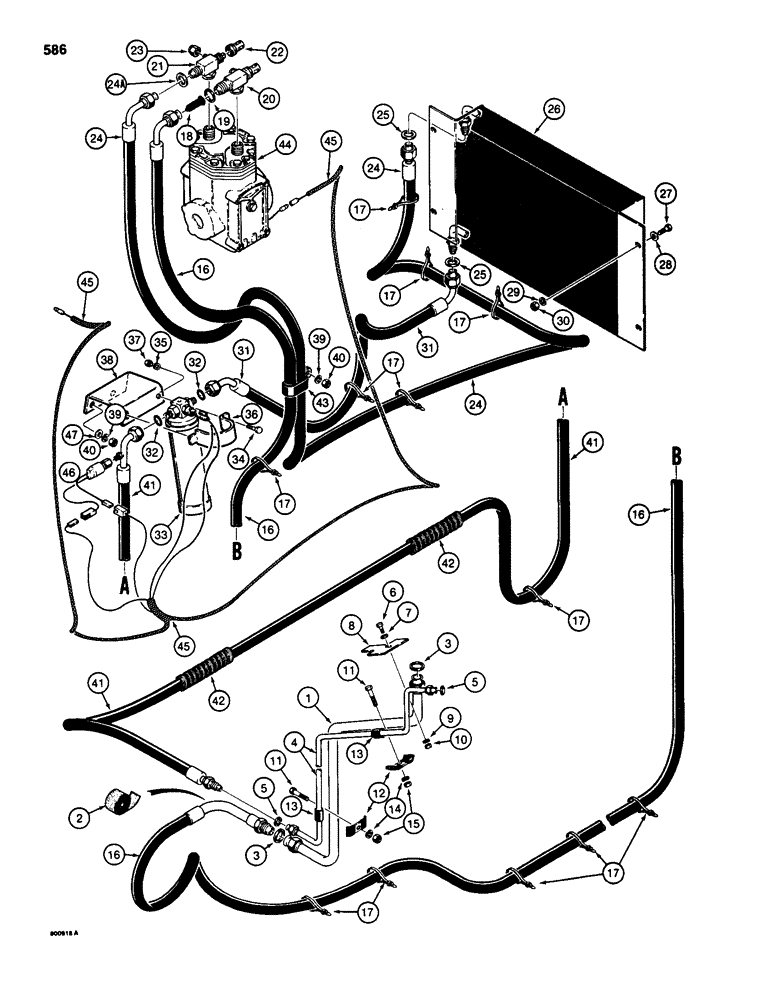

Запчасти Case 580SD (586) - AIR CONDITIONING LINES, WITH TUBES UNDER RIGHT-HAND FENDER (09) - CHASSIS/ATTACHMENTS

1

D87547

TUBE - from cab, 3/4" OD

1шт.

2

A42902

SEALING STRIP

TAPE - cork, insulating, bulk roll, 30 ft (914 cm) long

1шт.

3

222-996

GASKET,3/4 Tube, Fl, Copper

- copper, 3/4" OD tube

2шт.

4

D87549

TUBE - to cab, 3/8" OD

1шт.

Some models used a special hose in place of Ref. 4 and 41. On these models, order D121170 hose and discard Ref. 46, which is not required.

1шт.

5

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

8

D92587

PLATE

- cover, right-hand fender

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

12

D40236

CLAMP

- tubes

2шт.

13

REF

INSTRUCTION

INSULATOR - tubes, rubber, cut from A21562, bulk hose, see below

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

16

D84801

TUBE ASSY.

HOSE -, Serial Range: cab-compressor

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

D87966

FILTER SCREEN

SCREEN - filter, hose to air compressor, if used

1шт.

19

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" OD tube

1шт.

20

A42937

VALVE

- compressor, inlet, 5/8" port

1шт.

21

A145699

VALVE

- compressor, outlet, 1/2" port, Includes: Ref. 22 and 23

1шт.

22

A42944

CAP

- sleeve, valve stem

1шт.

23

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - steal, hex, valve stem

1шт.

24

D84795

HOSE

-, Serial Range: compressor-condenser

1шт.

24a

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" tube OD

1шт.

25

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.

26

D84781

CONDENSER

- coil, refrigerant cooler

1шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

A21562

HOSE,0.38" ID x 25.00"

0.38" ID x 25.00', Bulk

1шт.

31

D84791

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

32

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose

2шт.

33

A76312

RECEIVER-DRYER

RECEIVER-DRIER - air conditioner

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

A61193

CLAMP

- receiver-drier mounting

1шт.

37

9635082

NUT,5/16" - 18, Gr 5

1шт.

38

D120070

BRACKET

- receiver-drier mounting

1шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

41

D84802

HOSE, Serial Range: --cab

1шт.

Some models used a special hose in place of Ref. 4 and 41. On these models, order D121170 hose and discard Ref. 46, which is not required.

1шт.

42

D94363

CONDUIT

GUARD - hose

2шт.

43

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-style

1шт.

44

REF

INSTRUCTION

COMPRESSOR - air conditioner, parts list Figure 96; mounting parts Figure 100

1шт.

45

NSS

NOT SOLD SEPARAT

HARNESS - air conditioner, order Ref. 31 on Figure 590 and discard Ref. 46 which is not required

1шт.

46

A65779

SWITCH

- high pressure cutout, if used, see below

1шт.

47

195-521

WASHER,5/16", SAE

- flat, 3/8", plated

2шт.
