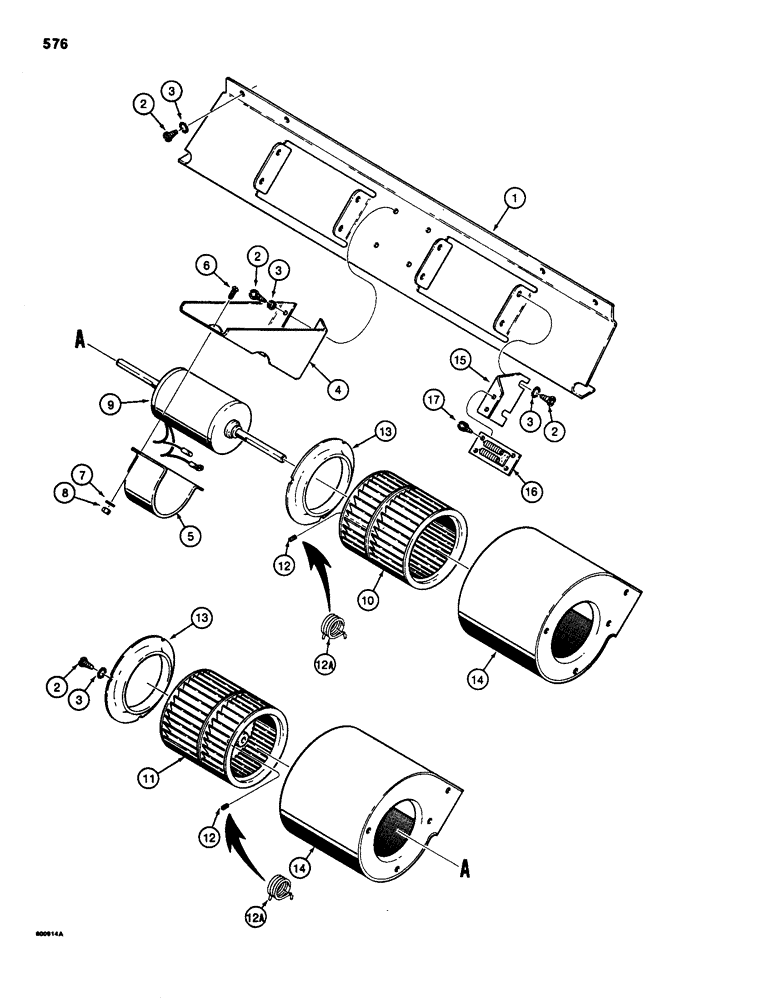

Запчасти Case 580SD (576) - CAB BLOWER, WITH METAL FAN HOUSING, IF USED (09) - CHASSIS/ATTACHMENTS

1

F44730

BRACKET

- mounting, blower

1шт.

2

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2", plated

16шт.

3

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

16шт.

4

F44729

BRACKET

- mounting, motor to blower bracket

1шт.

5

F44728

CLAMP

-, Serial Range: motor-bracket

1шт.

6

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

MACHINE SCREW - Phillips head, No. 10 - 24 NC x 1/2", plated

4шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

4шт.

9

F96901

MOTOR, ELECTRIC

MOTOR - blower, 12 volt

1шт.

10

F42776

BLOWER

FAN - blower, right-hand, uses set screw (Ref. 12), if used

1шт.

10

F45020

BLOWER,Fan, RH

FAN - blower, right-hand, uses spring clip (Ref. 12A), if used

1шт.

11

F42777

FAN

- blower, left-hand, uses set screw (Ref. 12), no longer available, order F45021 fan

1шт.

11

F45021

BLOWER,Fan

FAN - blower, left-hand, uses spring clip (Ref. 12A)

1шт.

12

84-45

SET SCREW,Hex Soc, 1/4"-28 x 5/16"

- hex socket, cup point, 1/4" - 28 NF x 5/16", if used

2шт.

12a

F44948

SPRING

CLIP - spring, fan, if used

2шт.

13

F63655

RETAINER

COVER - ring, fan end

2шт.

14

F96724

HOUSING

- fan, metal

2шт.

15

F41976

BRACKET

- resistor mounting

1шт.

16

F44900

RESISTOR

- blower, 12 volt

1шт.

17

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2", plated

2шт.
