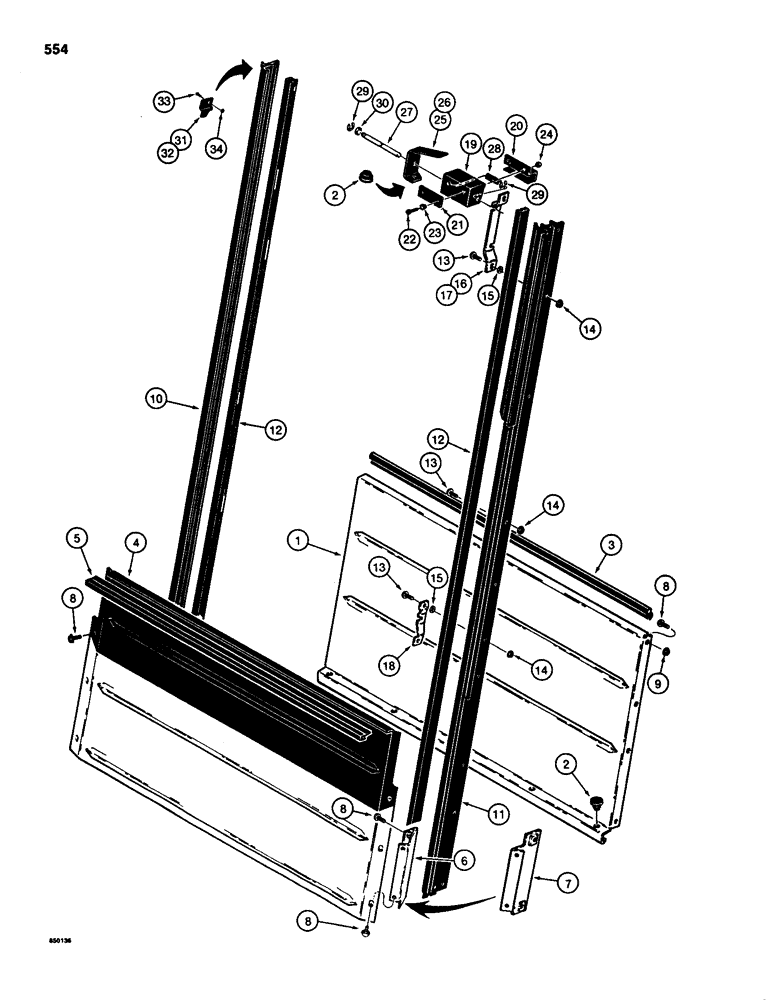

Запчасти Case 580SD (554) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F42920

PANEL ASSY.

PANEL - rear window, inner

1шт.

2

L60224

BUMPER

- rubber, rear window

7шт.

3

F42780

SEAL

1шт.

4

F96709

PANEL

- rear window, outer, includes decals

1шт.

5

F44711

SEAL

- outer panel, rear window

1шт.

6

F96750

SUPPORT

BRACKET - support, outer panel, three-sided, no longer available, order F96836 bracket, Ref. 7

2шт.

7

F96836

BRACKET

- support, outer panel, two-sided

2шт.

8

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT, , Replaces any bolts and washers used previously Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

14шт.

9

131-937

FLANGE NUT,Flg, 5/16"-18

NUT - flange type, self-locking, 5/16"-18 NC, plated, replaces any other nuts used previously

4шт.

10

F96749

BRACKET

- mounting, left-hand

1шт.

11

F96748

BRACKET

- mounting, right-hand

1шт.

12

F44692

CHANNEL

- rear windows

2шт.

See IMSPROD for details... new glass panels may be required.

1шт.

13

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Replaces any bolts and washers used previously Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

14шт.

14

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , Replaces any other nuts used previously Flg, 1/4"-20

14шт.

15

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

16

F44830

BRACKET

- window retaining, top, right-hand

1шт.

17

F44831

BRACKET

- window retaining, top, left-hand

1шт.

18

F44702

BRACKET

- window retaining, lower

2шт.

19

F44698

LATCH

- window, height adjustment

4шт.

20

F45086

CHANNEL

COVER - window release spring

4шт.

21

F44707

SPACER

- window latch

4шт.

22

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

MACHINE SCREW - oval Phillips head, No. 10 - 24 NC x 3/4", plated

8шт.

23

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- black nylon, lift bracket mounting

8шт.

24

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

8шт.

25

F44700

LEVER

- window latch, left-hand

2шт.

26

F44701

LEVER

- window latch, right-hand

2шт.

27

F44699

PIN

- window latch

4шт.

28

F62245

SPRING

- window release

4шт.

29

F45340

SNAP RING,#31, Ext, E-Type

Ring, Retaining, #31, Ext, E-Type

8шт.

30

F44832

SLEEVE

- window latch pin

4шт.

31

F45084

RETAINER

- window, up position, left-hand

1шт.

32

F45083

RETAINER

- window, up position, right-hand

1шт.

33

121-134

FLANGE BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, , Replaces any bolts and washers used previously Hex Flg, 1/4"-20 x 3/4", G5, Full Thd

2шт.

34

131-1351

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , Replaces any other nuts used previously Flg, 1/4"-20

2шт.

F43086

SEAL

- bulk roll, 100 ft. (3048 cm) long

1шт.

For rear window glass, see Figure 558 or 560.

1шт.
