Запчасти Case 580SD (552) - CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

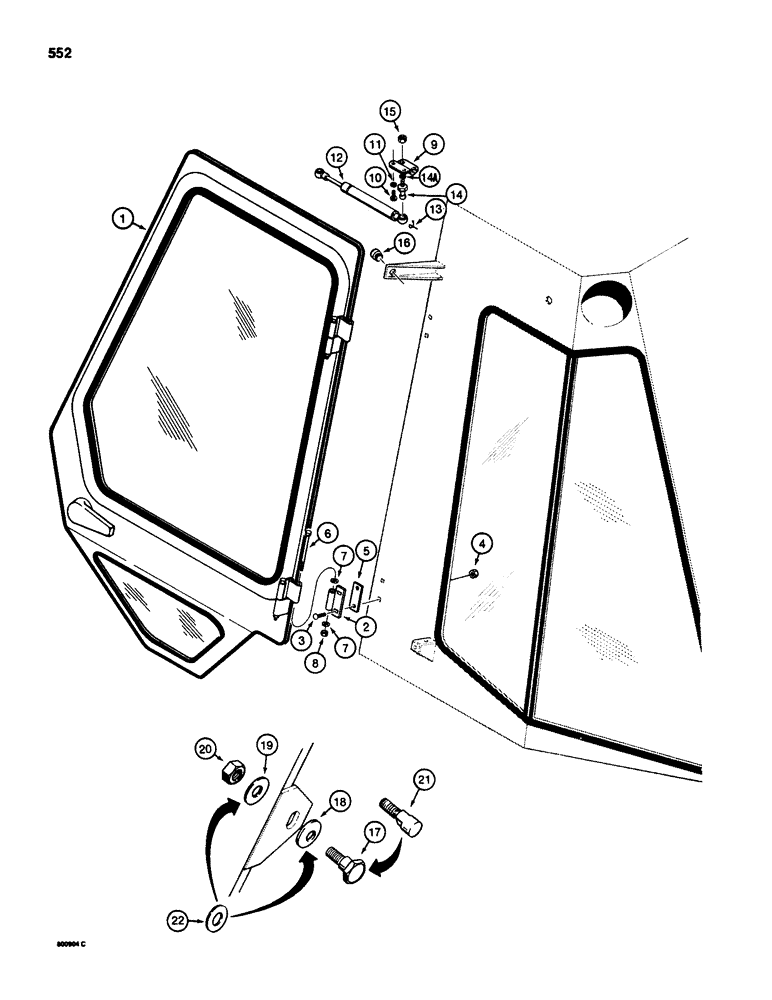

Схема запчастей Case 580SD - (552) - CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS
6
13
14a
10
15
3
4
16
20
8
12
7
14
21
1
2
9
19
7
22
11
5
17
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DOOR - cab, see Figure 550

1шт.

2

F44868

HINGE

- door

2шт.

3

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

5

F43257

PLATE

SPACER - door hinge

2шт.

6

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

7

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

THRUST WASHER - hinge

4шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

9

F44873

BRACKET

- mounting, door cylinder, may be welded to cab frame on some models

1шт.

10

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, 1/4" - 20 NC x 3/4", plated, if used

2шт.

11

192-40

LOCK WASHER,1/4"

if used 1/4"

2шт.

12

F44881

CYLINDER ASSY.

CYLINDER - door, with steel ball socket ends, replaces cylinders with plastic ends used in production on some models

1шт.

13

F44883

CLIP,DIN 71805 - S10

- lock, ball stud

2шт.

14

F44882

BALL

STUD - ball, cylinder

2шт.

14a

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

16

L60224

BUMPER

- rubber, door stop

1шт.

17

F44926

BOLT

STRIKER - door latch, no longer used, service with F45073

1шт.

18

F44748

SPRING WASHER

SPRING - Belleville, no longer used, order Ref. 22

1шт.

19

195-105

WASHER,7/16"

- flat, , plated, no longer used, order Ref. 22 7/16"

1шт.

20

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex, self-locking, 7/16" - 14 NC, plated

1шт.

21

F45073

PIN

STRIKER - door latch

1шт.

22

195-2029

WASHER,7/16" x 1 1/4" x .134"

- flat, 7/16", plated

2шт.
