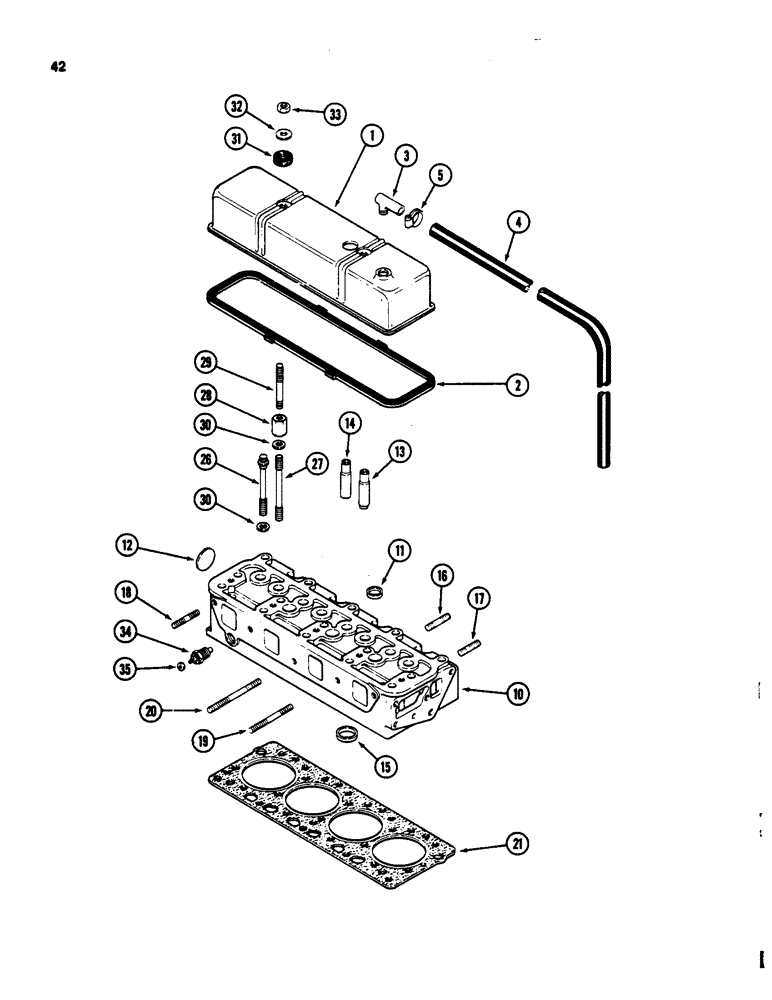

Запчасти Case 580SD (042) - CYLINDER HEAD AND COVER, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

-, Serial Range: cover-head

1шт.

3

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

4

A39570

HOSE

HOSE - breather tube (rubber)

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose to elbow, 9/16 to 1-1/16 inch (14 to 27 mm)

1шт.

10

A153261

CYLINDER BLOCK

HEAD ASSEMBLY - cylinder (Casting No. A150384) (with cast push rod holes)(See Figure 028 for water pump body), Inclues: Ref. 11 - 20

1шт.

10

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (Casting No. A155925) (with drilled push rod holes)(See Figure 028 for water pump body), Includes: Ref. 11 - 20

1шт.

11

41-1016

PLUG,Cup, 1"

- cup type, top, 1 inch (25 mm)

3шт.

12

41-1028

PLUG,Cup, 1 3/4"

- cup type, rear, 1-3/4 inch (44 mm)

1шт.

13

G2069

GUIDE

- exhaust valve, 3-1/8 inch long (79 mm) (Replaces A152489)

1шт.

14

G2068

GUIDE

- intake valve, 3-1/4 inch long (83 mm) (Replaces A152488)

1шт.

15

A39268

INSERT

- exhaust valve seat

4шт.

16

A140924

STUD

- exhaust manifold, clamps, 3/8 NC x 2-1/16 inch

3шт.

17

A29431

STUD

- exhaust manifold, ends, 3/8 NC x 1-3/4 inch

2шт.

18

A140924

STUD

- intake manifold, ends, 3/8 NC x 2-7/16 inch

2шт.

19

A153248

STUD

- intake manifold, intermediate, 3/8 NC x 4-5/16 inch

2шт.

20

A51500

STUD

- intake manifold, center, 3/8 NC x 5-5/16 inch

1шт.

21

A148745

CYLINDER HEAD GASKET

- cylinder, Serial Range: head-block

1шт.

26

A39047

12 PT SCREW

BOLT - 12 point head, head to block, 1/2 NC x 3-1/2 inch

4шт.

26

A39048

12 PT SCREW

BOLT - 12 point head, head to block, 1/2 NC x 5-1/8 inch

11шт.

26

A39049

12 PT SCREW

BOLT - 12 point head, head to block, 1/2 NC x 5-5/8 inch

2шт.

27

A36902

STUD

- cylinder head, 1/2 NC x 5-5/8 inch

2шт.

28

A51114

NUT

- head studs, 1/2 NC and 3/8 inch NC

2шт.

29

A51271

STUD

- cylinder head cover, 3/8 NC x 3-3/4 inch

2шт.

30

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 7/8 inch (22 mm)

19шт.

31

A142098

GROMMET

- cover (rubber)

2шт.

32

195-137

WASHER,13/32" x 1 1/8" x .180"

- cover nut, 13/32 x 1-1/8 x 3/16 inch (10 x 29 x 5 mm)

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Cover 3/8"-16, G5

2шт.

34

D65446

SENDER UNIT

UNIT - temperature sending

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- hex, unit terminal, No. 10 NF

1шт.
