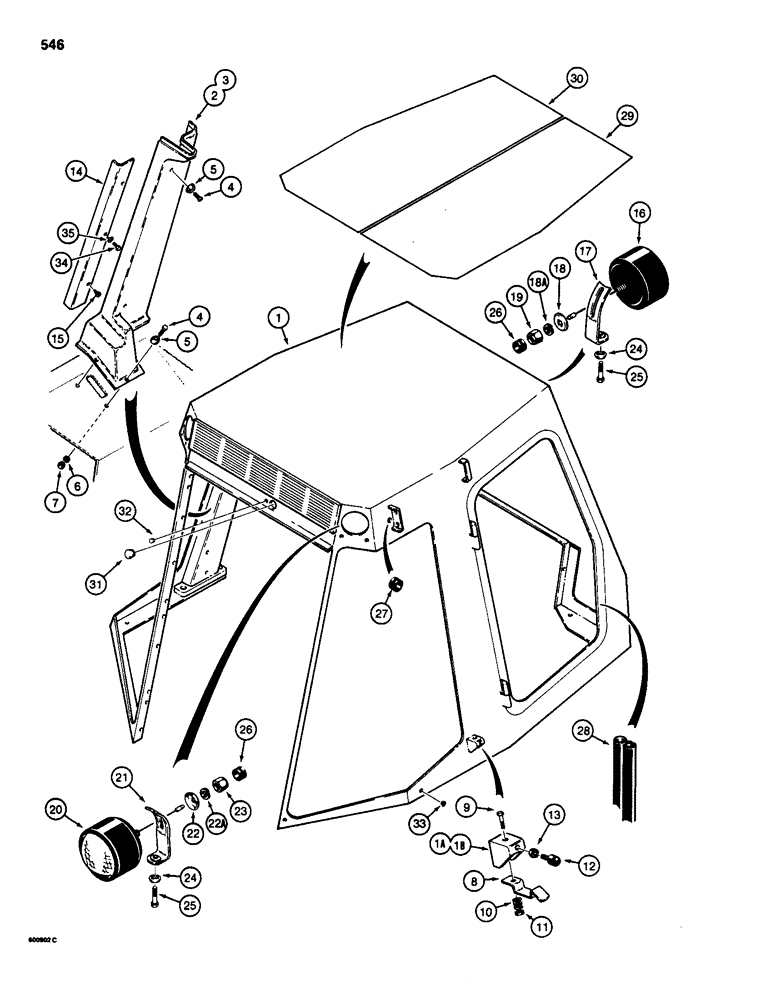

Запчасти Case 580SD (546) - CAB FRAME AND LAMPS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab, Includes: Ref. 1A and 1B

1шт.

1a

F97010

BRACKET

- window latch, right-hand

1шт.

1b

F97011

BRACKET

- window latch, left-hand

1шт.

2

D90190

COVER

- plastic, right-hand

1шт.

3

D90191

COVER

- plastic, left-hand

1шт.

4

179-160

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4", plated

8шт.

5

D91156

WASHER

- special, plated

8шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

8

F42772

LATCH

BRACKET - window latch

2шт.

9

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

10

D36669

SPRING

- bracket

2шт.

11

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

12

F44935

BUMPER

- window

2шт.

13

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

14

F44766

COVER

- metal, heater and air conditioner lines

2шт.

15

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, 1/4" - 20 NC x 5/8", plated, no longer used, replace with (1) 113-3 bolt (Ref. 34) and (1) 195-518 washer (Ref. 35) in center hole only, not required in end holes

6шт.

16

F96725

LAMP BASE

LAMP ASSEMBLY - front driving, parts list Figure 120

2шт.

17

F96727

BRACKET

- lamp mounting

2шт.

18

F44807

WASHER

- special

2шт.

18a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

20

F96726

LAMP

ASSEMBLY - rear flood, parts list Figure 120

2шт.

21

F96727

BRACKET

- lamp mounting

2шт.

22

F44807

WASHER

- special

2шт.

22a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

F42778

WASHER

- special, 5/16", with rubber seal

4шт.

25

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex head, 5/16" - 18 NC x 1", plated

4шт.

26

353-700

BUSHING

GROMMET - mounting, front and rear lamps

4шт.

27

353-704

GROMMET

- mounting, side lamps, inner and outer

4шт.

28

REF

INSTRUCTION

SEAL - right-hand window, cut to length as required from F43086, see below

1шт.

For additional lamps and lamp wiring, Figure 118; for cab wiring harness, see Figure 562.

1шт.

29

F44914

DECAL

SEAL - white vinyl, top of roof, heat deflection, used on models with air conditioning, right-hand

1шт.

30

F44915

DECAL

SEAL - white vinyl, top of roof, heat deflection, used on models with air conditioning, left-hand

1шт.

31

R46507

PLUG

- button, steel, plated, 1-7/16" hole size, if used

1шт.

32

A39890

PLUG,9/32"

- button, steel, plated, hole size, if used 9/32"

1шт.

33

353-402

PLUG,Dome, .375" hole, Nylon

(10 mm), Frame Dome, .375" hole, Nylon

2шт.

34

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Center hole only Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

35

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, center hole only

2шт.

F43086

SEAL

- bulk, 100 ft. (3048 cm) long

1шт.

For additional lamps and lamp wiring, Figure 118; for cab wiring harness, see Figure 562.

1шт.
