Запчасти Case 580SD (544) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

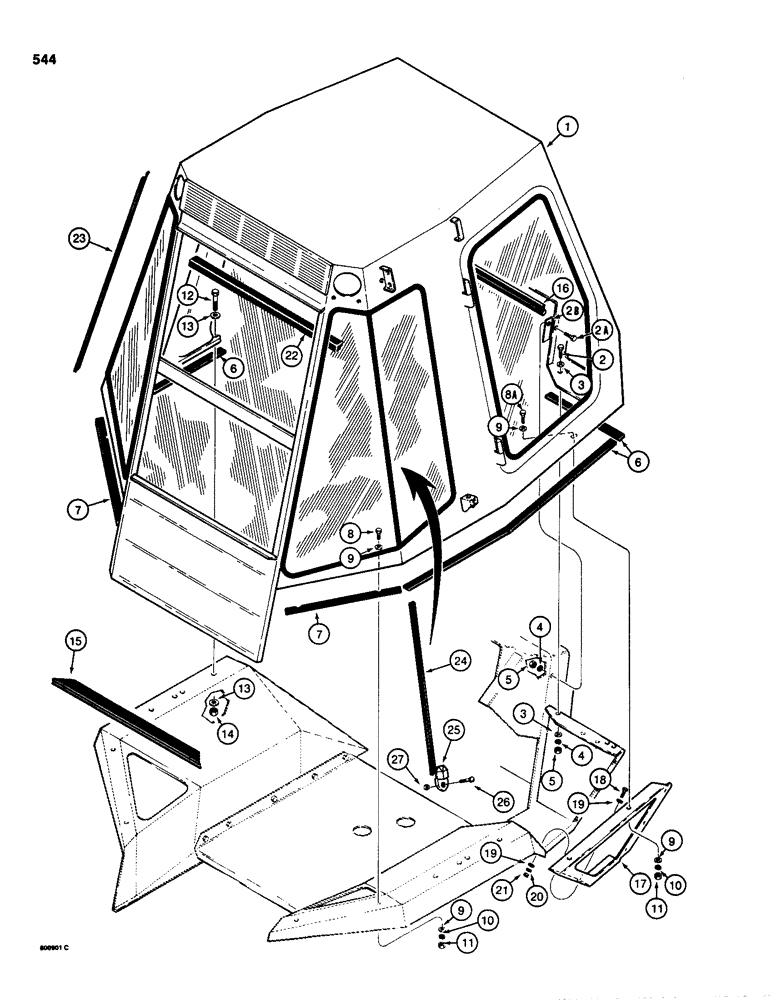

Схема запчастей Case 580SD - (544) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS
10
24
2
11
10
23
12
14
25
18
19
9
26
6
4
2b
7
3
20
27
15
9
8
5
19
22
7
8a
2a
17
5
13
11
9
21
4
16
9
1
13
3
6

Артикул

Название

Примечание

Количество

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

2a

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

If used Hex, 3/8"-16 x 1 1/2", G5

2шт.

2b

D120364

SHIM - cab to frame, if used

1шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4-6шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4-6шт.

6

D90936

BAND

SEAL - fenders and front

1шт.

7

D90935

SEALING STRIP

SEAL - rear corners

2шт.

8

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

6шт.

8a

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

16шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

11

9635082

NUT,5/16" - 18, Gr 5

8шт.

12

113-774

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8, plated

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 3/4", hardened

8шт.

14

129-138

NUT,3/4"-10, G8

4шт.

15

REF

INSTRUCTION

SEAL - rear window panel, 33-1/2" (850 mm) long, cut from D90976

1шт.

For cab glass, see Figure 558 or 560; for cab lamps, see Figure 546.

1шт.

16

REF

INSTRUCTION

SEAL - cowl, 43-5/16" (1100 mm) long, cut from F43086

1шт.

For cab glass, see Figure 558 or 560; for cab lamps, see Figure 546.

1шт.

17

D86437

PANEL ASSY.

PANEL - closure, right-hand, lower

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

11шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

F44812

SEAL

SEAL - rear, window frame, upper

1шт.

23

F44667

RUBBER

SUPPORT - glass, rear, left-hand

1шт.

24

F44668

SEAL

SUPPORT - glass, rear, right-hand

1шт.

25

F45183

BRACKET

RETAINER - glass support

4шт.

26

111-2

CARRIAGE BOLT,Short NK, 3/16"-24 x 3/4", G2

BOLT, CARRIAGE, Short NK, 3/16"-24 x 3/4", G2

4шт.

27

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

D90976

SEAL

- bulk, 295-1/4" (7500 mm) long

1шт.

For cab glass, see Figure 558 or 560; for cab lamps, see Figure 546.

1шт.

F43086

SEAL

- bulk, 100 ft. (3048 mm) long

1шт.

For cab glass, see Figure 558 or 560; for cab lamps, see Figure 546.

1шт.
