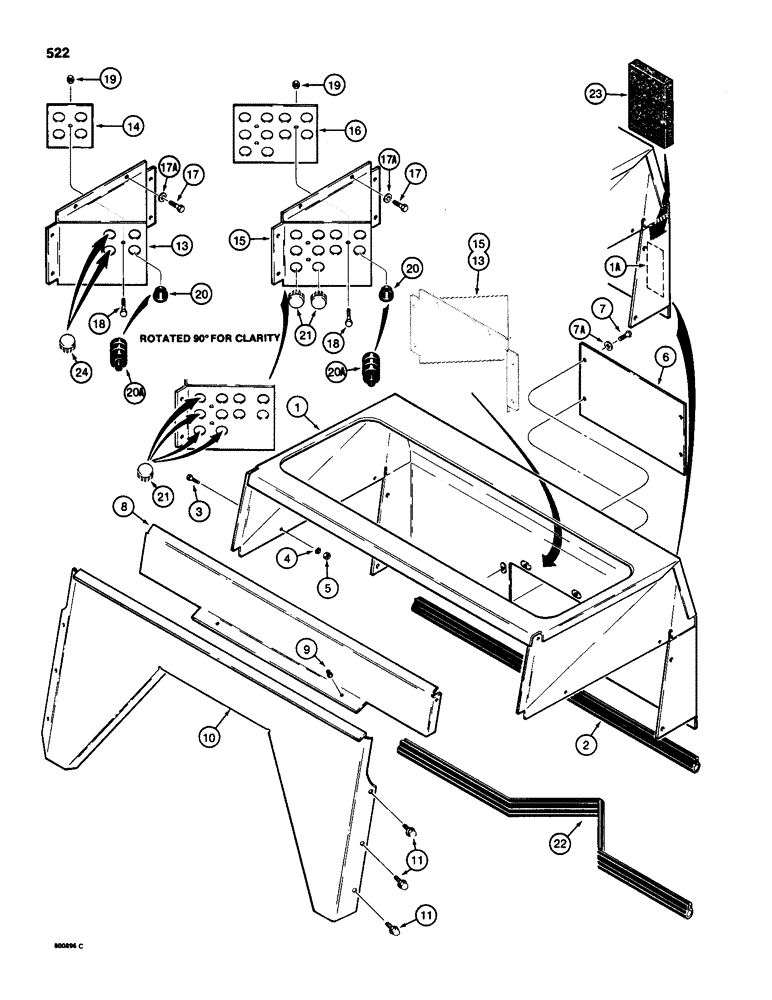

Запчасти Case 580SD (522) - REAR CLOSURE PANELS, CAB MODELS WITHOUT BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D90184

PANEL

- rear closure, if used

1шт.

1a

D125552

PANEL ASSY.

PANEL - rear closure, if used

1шт.

2

REF

INSTRUCTION

SEAL - rear closure panel, 36-7/8" (936 mm) long, cut from F43117 bulk

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

D120292

COVER

PLATE - rear closure panel, models without backhoe or three-point hitch

1шт.

7

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

7a

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

REF

INSTRUCTION

SPECIAL PARTS USED WITH THREE-POINT HITCH

1шт.

8

D90553

PANEL

COVER - inner, rear closure panel

1шт.

9

L60224

BUMPER

- window

2шт.

10

D90547

PANEL

COVER - outer, rear closure panel

1шт.

11

121-135

FLANGE BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

BOLT, , Replaces bolt with lock washer on some models Hex Flg, 5/16"-18 x 3/4", G5, Full Thd

6шт.

12

RESERVED

1шт.

13

D120199

PANEL ASSY.

COVER - hoses, used on three-point hitch models with single spool valve

1шт.

14

D120197

PLATE - support, used with D120199 cover, if used

1шт.

15

D94046

PANEL ASSY.

COVER - hoses, used on three-point hitch models with four spool valve

1шт.

16

D120095

PLATE - support, used with D94046 cover, if used

1шт.

17

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

17a

195-102

WASHER,1/4"

- flat, , plated 1/4"

6шт.

18

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

If used Hex, 5/16"-18 x 5/8", G5, Full Thd

1-3шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, 5/16" - 18 NC, plated, if used

1-3шт.

20

D120154

GROMMET

- hose, if used

4-8шт.

20a

D124404

BOOT

- cover, 2 used on single spool valve, 6 used on four spool valve, if used

2-6шт.

21

205-52

HOLE PLUG BUTTON,1 1/8"

PLUG - button, steel, 1-1/8" (29 mm) diameter, used on four spool models

2-6шт.

22

REF

INSTRUCTION

SEAL - rear closure panel, 41" (1040 mm) long, cut from D80646 bulk, used on three-point hitch models only

1шт.

23

D74213

FOAM

SEAL - foam, pressure sensitive adhesive one side, used with item 1A panel only

1шт.

24

205-52

HOLE PLUG BUTTON,1 1/8"

PLUG - button, steel, 1-1/8" (29 mm) diameter, two used on single spool valve cover, if used

2шт.

F43117

SEAL

- bulk, 100 ft. (3048 cm) long

1шт.

D80646

SEAL

- bulk, 50 ft. (1524 cm) long

1шт.
