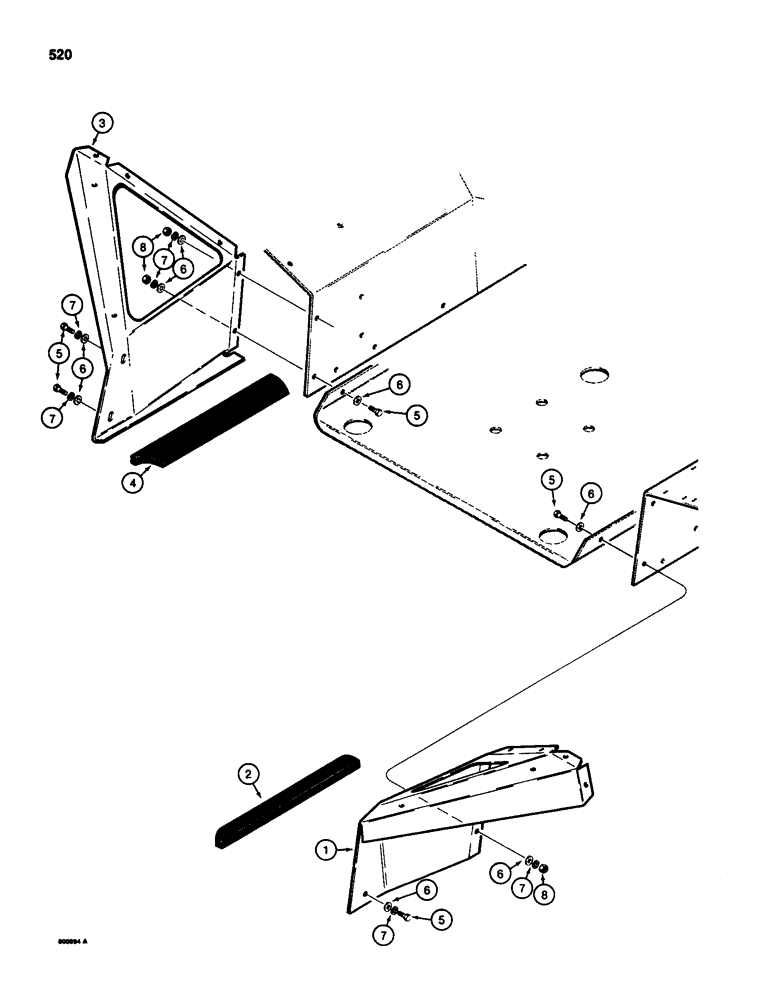

Запчасти Case 580SD (520) - REAR CLOSURE PANELS, CAB MODELS WITH BACKHOE (09) - CHASSIS/ATTACHMENTS

1

D88681

PANEL

- side closure, right-hand

1шт.

2

REF

INSTRUCTION

SEAL - right-hand panel, 19-11/16" (500 mm) long, cut from D90976, see below

1шт.

3

D88827

PANEL

- side closure, left-hand

1шт.

4

REF

INSTRUCTION

SEAL - left-hand panel, 19-11/16" (500 mm) long, cut from D90976, see below

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

6

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

24шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

14шт.

8

9635082

NUT,5/16" - 18, Gr 5

10шт.

D90976

SEAL

- bulk, 295-1/4" (7500 mm) long

1шт.
