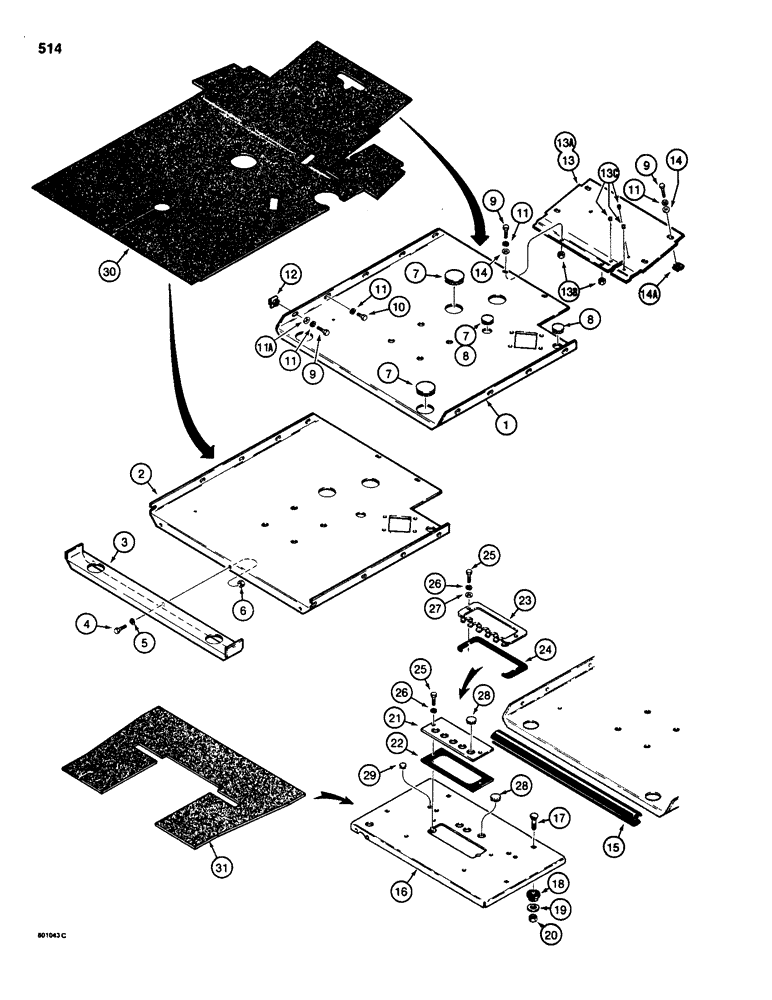

Запчасти Case 580SD (514) - FLOOR PLATES AND MATS (09) - CHASSIS/ATTACHMENTS

1

D91000

PLATE

- floor, main, models without three-point hitch, used before tractor PIN 9050156

1шт.

1

D120235

LARGE PLATE

PLATE - floor, main, models without three-point hitch, used on tractor, Start Serial: 9050156

1шт.

2

D91811

PLATE - floor, main, models with three-point hitch, used tractor, Serial Range: -9050156

1шт.

2

D120264

PLATE

- floor, main, models with three-point hitch, used on tractor, Start Serial: 9050156

1шт.

3

D91379

PLATE

- floor, extension, models with three-point hitch

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

6

9635082

NUT,5/16" - 18, Gr 5

3шт.

7

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter 3"

2-3шт.

8

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" (38 mm) diameter

1-2шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

10

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

15шт.

11a

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

9шт.

12

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

9шт.

13

D87604

FLOOR

PLATE - floor, front, with clutch cutout switch mounting bracket, no longer used, for service order D126612 floor plate, D124618 switch and D126116 washer, see Figure 112 for switch and washer

1шт.

13a

D126612

PLATE

- floor, front, without clutch cutout switch mounting bracket, Includes: Ref. 13B and 13C

1шт.

13b

D126570

NUT

- special, D126612 floor plate

2шт.

13c

D123827

NUT

- special, D126612 floor plate

3шт.

14

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

6шт.

14a

131-641

NUT

- U-type, 5/16" - 18 NC, replaces J-type nut on some models

4шт.

15

D90980

SEAL

- main and backhoe floor plates

1шт.

16

D91060

PLATE

- floor, backhoe, used with Ref. 21

1шт.

16

D124433

PLATE

- floor, backhoe, used with Refs. 23 and 24

1шт.

17

12-832

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2", Gr 2, Full Thd

- 1/2" - 13 NC x 2"

4шт.

18

R29799

SHOCK ABSORBER

INSULATOR - rubber, floor plate mounting

4шт.

19

B15606

WASHER

- flat, retaining, 1/2"

4шт.

20

131-70

NUT,1/2"-13, GB

NUT - hex, 1/2" - 13 NC, plated

4шт.

21

D89075

PLATE

- backhoe control tower, metal, if used, see Ref. 23

1шт.

22

D120483

GASKET

- sealing, for Ref. 21 only

1шт.

D121493

PLATE

AND GASKET - backhoe control tower, plastic, if used, see Refs. 21 and 22, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - backhoe control tower, plastic

1шт.

24

D121492

GASKET

- sealing, for Ref. 23 only

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, if used

2шт.

28

205-54

HOLE PLUG BUTTON,1 3/16"

PLUG - button, 1-3/16" (30 mm) diameter, if used

2шт.

29

353-403

PLUG,Dome, .437" hole, Nylon

- button, 5/8" (16 mm) diameter, If used

4шт.

30

D123202

FLOOR MAT

MAT - main floor plate, if used

1шт.

31

D123207

FLOOR MAT

MAT - backhoe floor plate, if used

1шт.
