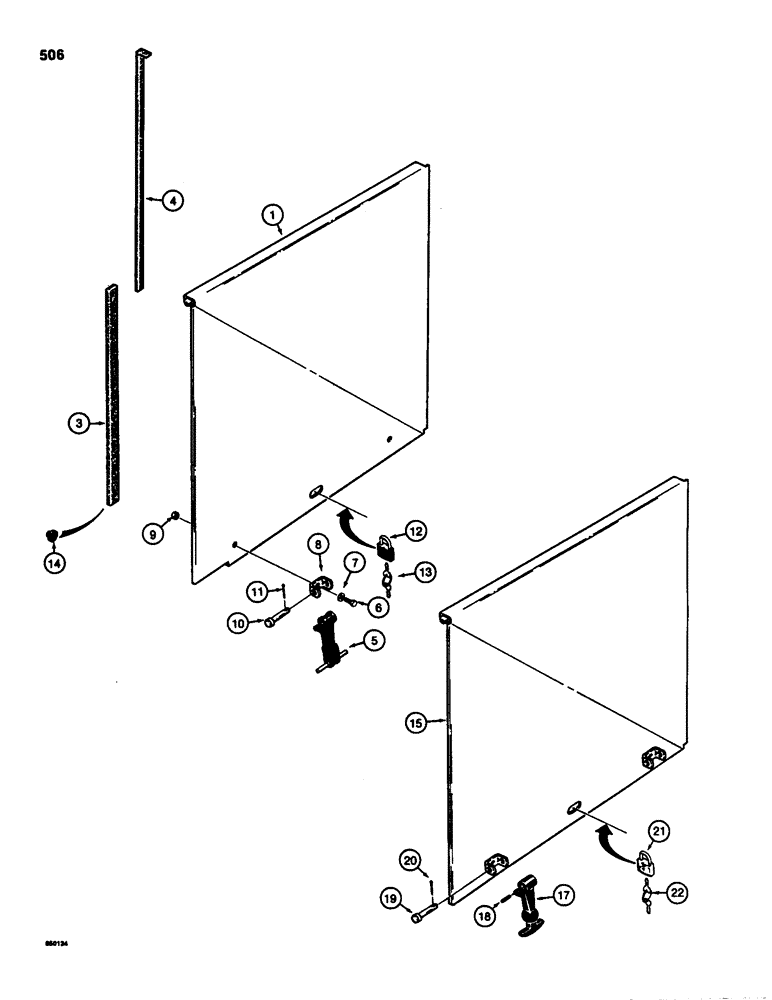

Запчасти Case 580SD (506) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

MODELS WITH BOLT-ON BRACKET

1шт.

1

D88931

PANEL

- side, engine, right-hand, no longer used, for service order D122138 panel (Ref. 15), (2) H54890 pins (Ref. 19), (2) 132-3 cotter pins Ref. 20), and (2) 138-55 roll pins (Ref. 18)

1шт.

Ref. 1 and 2 engine side panels - These panels used bolt-on anchor brackets (Ref. 8).

1шт.

2

D88932

PANEL

- side, engine, left-hand, not shown, no longer used, for service order D122113 panel (Ref. 16), (2) H54890 pins (Ref._19), (2) 132-3 cotter pins (Ref. 20), and (2) 138-55 roll pins (Ref. 18)

1шт.

Ref. 1 and 2 engine side panels - These panels used bolt-on anchor brackets (Ref. 8).

1шт.

3

D91138

STRIP

- rubber, rear of both side panels, if used, see Ref. 14

2шт.

4

D91137

STRIP

- rubber, front of both side panels, if used, see Ref. 14

2шт.

5

L47157

HOOK

- side panel retaining

4шт.

6

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

7

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, no longer used

4шт.

8

L47159

BRACKET

- anchor, side panel

4шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

10

141-66

CLEVIS PIN,5/16" x 1 13/16"

PIN - hook mounting

4шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

12

D93753

PADLOCK

- engine side panels, if used, Includes: Ref. 13

2шт.

13

R29555

KEY

- for Master padlock only

2шт.

13

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

14

L60224

BUMPER

- rubber, if used

2шт.

REF

INSTRUCTION

MODELS WITH WELDED BRACKET

1шт.

15

D122138

PANEL

- side, engine, right-hand, models with welded bracket

1шт.

Ref. 15 and 16 engine side panels - These panels have anchor brackets cut directly out of the side panel material. (the tabs are bent up from side panel material) THE SMALL PC WELDED TO THE CHASSIS THAT THE D121323 HOOK ATTACHES TO IS D123073. THE BOLT ON STYLE IS L47158

1шт.

REF 15 AND 16- SILVER PAINT THAT WAS USED FOR THE ANNIVERSARY LDR/BHOE LIMITED EDITION IS D123331 1 QT CONTAINER AND D124084 WHICH WAS THE SPRAY CAN (DUPONT #43881 AH OR DITZCO #8982. P/NS ARE NOW PT6 IN OUR SYSTEM. DLR WILL HAVE TO MATCH COLOR LOCALLY.

1шт.

16

D122113

PANEL

- side, engine, left-hand, not shown, models with welded bracket

1шт.

17

D121323

LATCH ASSY.

HOOK - side panel, models with welded bracket

4шт.

18

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Hook bushing, models with welded bracket 1/8" x 5/8", Slotted

4шт.

19

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN - hook mounting, models with welded bracket

4шт.

20

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), , Models with welded bracket 1/16" x 3/8"

4шт.

21

D93753

PADLOCK

- engine side panels, if used, models with welded bracket, Includes: Ref. 22

2шт.

22

R29555

KEY

- for Master padlock only, models with welded bracket

2шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, models with welded bracket

2шт.
