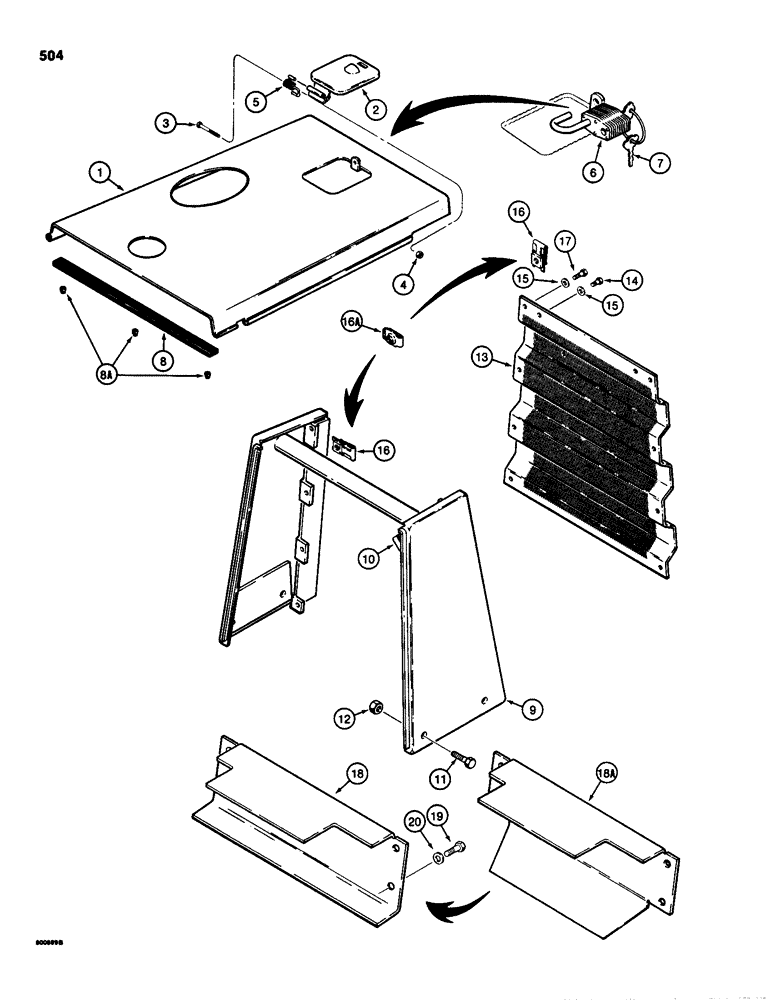

Запчасти Case 580SD (504) - HOOD AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

1

D125954

HOOD

- engine, used with D93451 grommet on Figure 014, used with air cleaner with top intake

1шт.

1

D91513

HOOD - engine, noise reduction, used with air cleaner with front intake, not shown

1шт.

2

D92446

DOOR

- access, radiator cap, includes decal, see Figure 602

1шт.

3

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

4

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

5

D121677

SPRING

- radiator access door

1шт.

6

D93753

PADLOCK

- radiator access door, Includes: Ref. 7

1шт.

7

R29555

KEY

- for Master padlock only

2шт.

7

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

8

D91138

STRIP

- rubber, rear of hood, if used, see Ref. 8A

1шт.

8a

L60224

BUMPER

- rubber, if used, see Ref. 8

3шт.

9

D88842

GUARD

SHROUD - radiator

1шт.

10

REF

INSTRUCTION

SUPPORT - horizontal tube, welds to shroud, see Figure 014, Ref. 4

1шт.

11

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

12

129-108

NUT,3/4"-10, G5

4шт.

13

D91062

GUARD

GRILLE - radiator

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

15

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

10шт.

16

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

10шт.

16a

D122307

NUT

NUT - U-type, 3/8" - 16 NC, if used

10шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

18

D82534

GUARD

- pump, models with two wheel drive

1шт.

18a

D122145

GUARD ASSY.

GUARD - pump, models with four wheel drive

1шт.

19

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

4шт.

20

195-545

WASHER,3/4", SAE

- flat, 3/4", plated

4шт.
