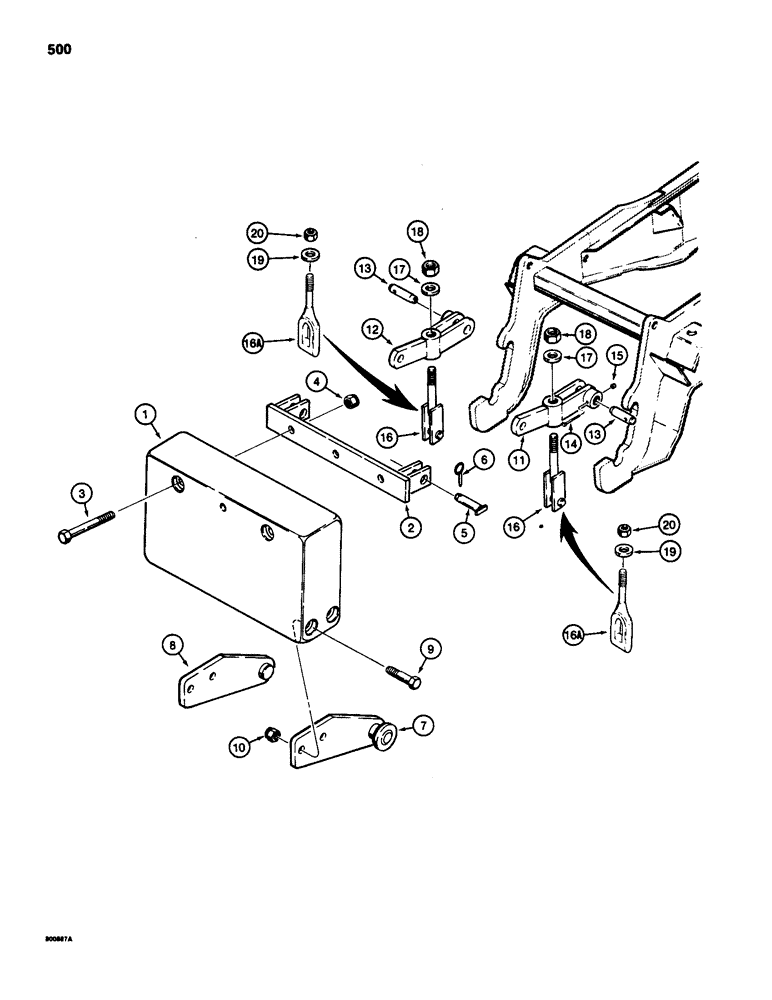

Запчасти Case 580SD (500) - REAR COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lbs. (634.2 kg)

1шт.

2

D50818

BRACKET

- counterweight mounting

1шт.

3

15-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex head, 1" - 8 NC x 10-1/2"

2шт.

4

131-698

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, plated

2шт.

5

D54957

PIN

- bracket mounting

2шт.

6

D33805

PIN

RETAINING PIN - self-locking

2шт.

7

D91161

ARM

SUPPORT - lower, right-hand

1шт.

8

D91162

ARM

SUPPORT - lower, left-hand

1шт.

9

113-929

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex head, 1" - 8 NC x 6-1/2", plated

4шт.

10

131-698

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, plated

4шт.

11

D91107

LINK

- upper, right-hand

1шт.

12

D90984

LINK

- upper, left-hand

1шт.

13

D90825

PIN

-, Serial Range: link-chassis

2шт.

14

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

15

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

16

D90999

ROD

- tension, welded assembly, no longer available, order D123960 rod

2шт.

16a

D123960

ROD

- tension, cast

2шт.

17

D64968

WASHER

- hardened, 1-1/4", used with Ref. 18, if used

2шт.

18

131-454

LOCK NUT,1 1/4"-7

NUT - hex, self-locking, 1-1/4" - 7 NC, 1-11/16" thick, if used

2шт.

19

D36434

WASHER

- hardened, 1-1/4", used with Ref. 20, if used

2шт.

20

131-479

LOCK NUT,1 1/4"-7

NUT - hex, self-locking, 1-1/4" - 7 NC, 1-1/8" thick, plated, if used

2шт.
