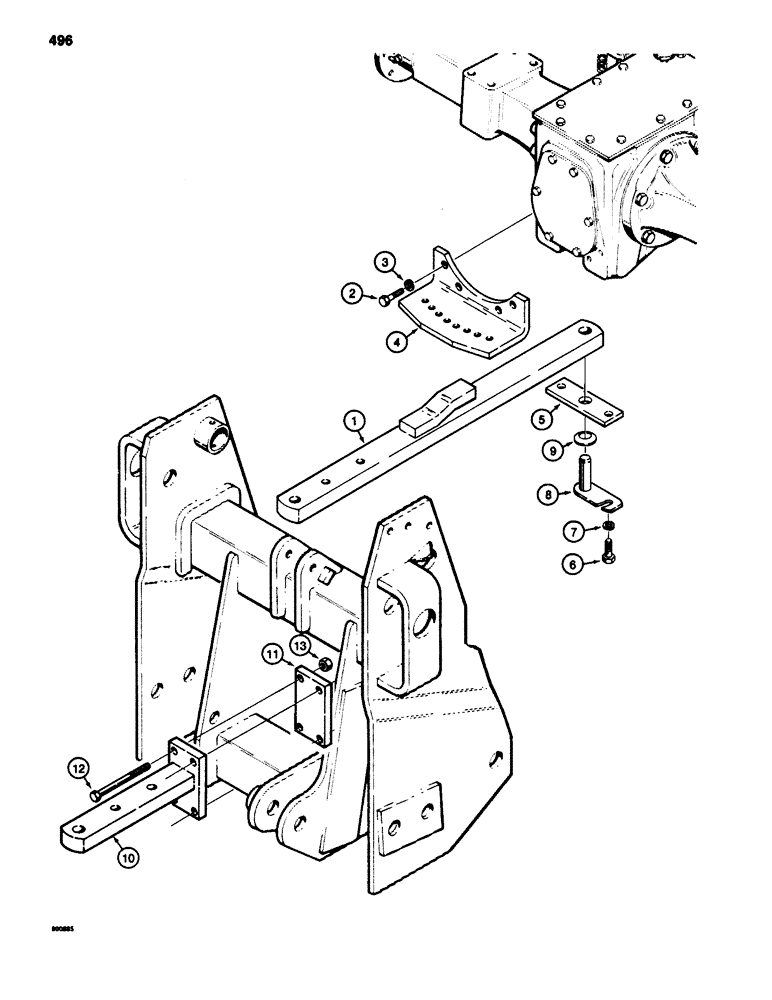

Запчасти Case 580SD (496) - DRAWBAR, SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SWINGING DRAWBAR

1шт.

1

A37809

BAR

DRAWBAR - swinging, tractor, if used

1шт.

2

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

G30266

SUPPORT

GUIDE - rear, drawbar

1шт.

Drawbar guide and #8 drawbar mtg pin - The old transmission housing (part nbr A157659) had 4 holes to mount the drawbar guide (Ref. 4) plus an underside hole to insert the drawbar mtg pin (Ref. 8). When this transmission housing was replaced by a heavier, beefed-up version (part nbr A159416) these holes were eliminated. However the underside of the new housing still has the pad to allow drilling of these holes at a macine shop if a drawbar is required

1шт.

5

G10617

SUPPORT

PLATE - front, drawbar retaining

1шт.

6

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

G14403

PIN

- drawbar mounting

1шт.

9

A185068

WASHER

BELLEVILLE SPRING - washer

1шт.

REF

INSTRUCTION

RIGID DRAWBAR - USED WITH 3-POINT HITCH

1шт.

10

D73232

DRAWBAR

- rigid, tractor

1шт.

11

D73231

LARGE PLATE

PLATE - mounting

1шт.

12

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

13

129-107

NUT,5/8"-11, G5

4шт.
