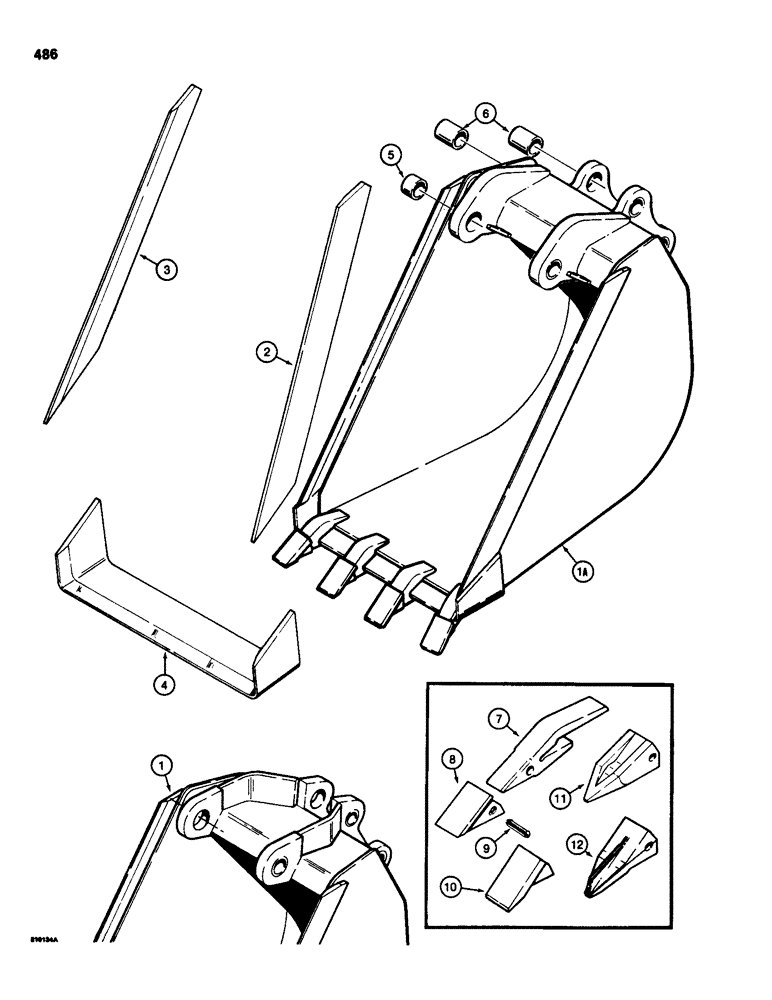

Запчасти Case 580SD (486) - BACKHOE BUCKETS, 24 INCH (610 MM) HIGH CAPACITY TRENCHING BUCKET, USED ON SOME SUPER D MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

L59873

BUCKET ASSEMBLY - 24 inch (610 mm), machinery item - order L107618 bucket, see Figure 002 for orderingbucket, Includes: Ref. 2 - 6

1шт.

1a

L107618

BUCKET

ASSEMBLY - 24 inch (610 mm), machinery item - see Figure 002 for ordering, Includes: Ref. 2 - 6

1шт.

2

L70084

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

L70083

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D41673

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

REF

INSTRUCTION

BUCKET TEETH - INCLUDED WITH BUCKET

1шт.

L43266

TOOTH

ASSEMBLY - high capacity bucket, bucket teeth - included with bucket, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth - included with bucket

1шт.

8

D39093

TOOTH

POINT - tooth,bucket teeth - included with bucket

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth - included with bucket

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, bucket teeth - included with bucket.

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option, bucket teeth-included with bucket

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option, bucket teeth-included with bucket

1шт.
