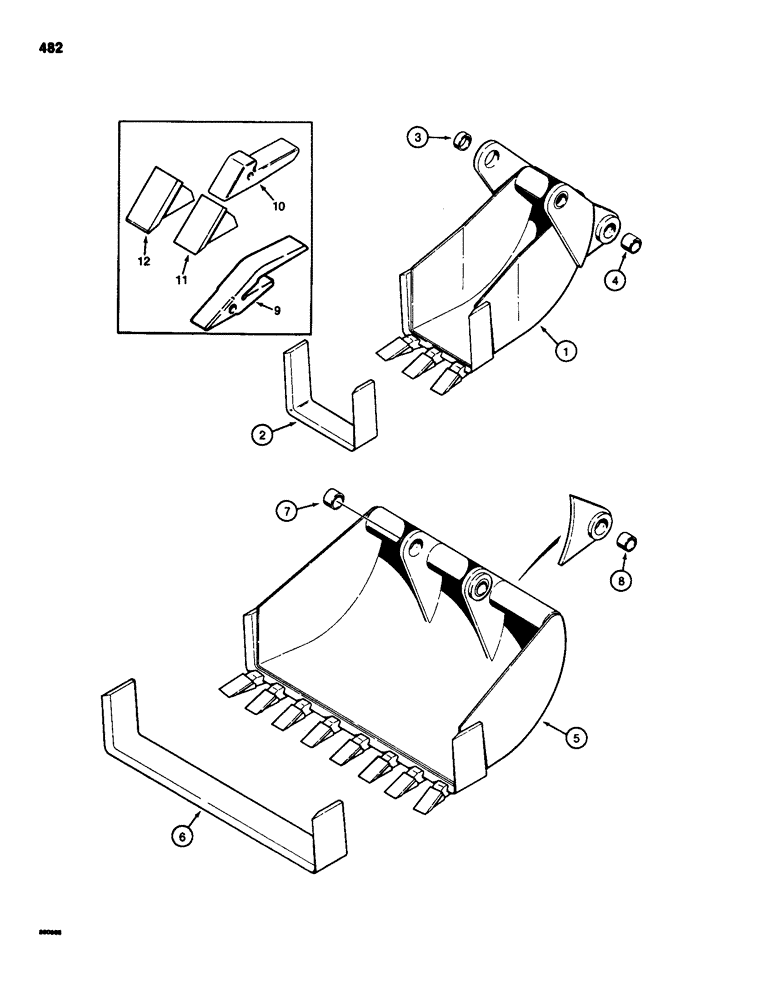

Запчасти Case 580SD (482) - BACKHOE BUCKETS, BELLHOLE BUCKETS & GRAVEYARD BUCKETS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

BELLHOLE BUCKETS

1шт.

1

D41547

BUCKET

ASSEMBLY - 12 inch (305 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 2 - 4

1шт.

2

D37490

KNIFE

CUTTING EDGE - bucket

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

1

D41548

BUCKET

ASSEMBLY - 16 inch (406 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 2 - 4

1шт.

2

D37518

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

1

D41549

BUCKET

ASSEMBLY - 30 inch (762 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 2 - 4

1шт.

2

D37515

EDGE

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

REF

INSTRUCTION

COMBINATION BELLHOLE AND GRAVEYARD BUCKET

1шт.

5

D41550

BUCKET

ASSEMBLY - 36 inch (914 mm) machinery item - see Figure 002 for ordering, combination bellhole and graveyard bucket, Includes: Ref. 6 - 8

1шт.

6

NLS

NO LONGER SERVICED

CUTTING EDGE - bucket, combination bellhole and graveyard bucket

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, combination bellhole and graveyard bucket

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, combination bellhole and graveyard bucket

2шт.

REF

INSTRUCTION

BUCKET TEETH

1шт.

9

D58499

SUPPORT

SHANK - tooth, service option, bucket teeth

1шт.

10

D26368

SUPPORT

SHANK - tooth, original equipment, bucket teeth

1шт.

11

D27748

TOOTH

POINT - tooth, interchangeable with D58576 or D58577, bucket teeth

1шт.

12

D36720

TOOTH

POINT - tooth, heavy duty service option, interchangeable with D58592 or D58593, bucket teeth

1шт.
