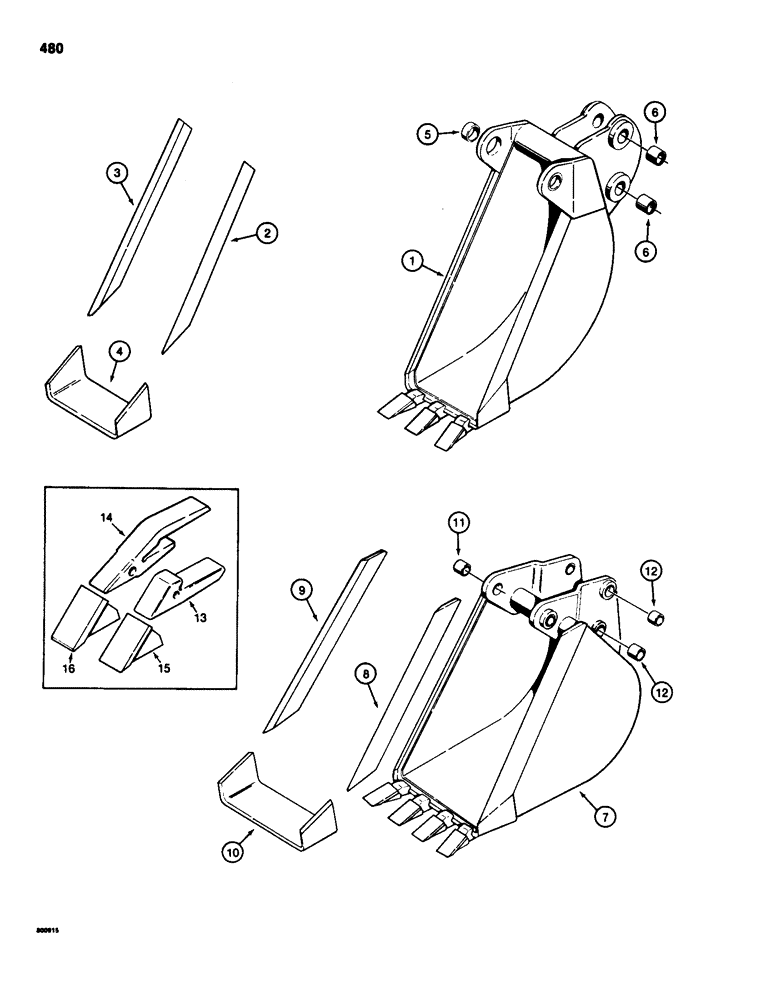

Запчасти Case 580SD (480) - BACKHOE BUCKETS, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY - 12 inch (305 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

7

D37473

BUCKET

ASSEMBLY - 18 inch (457 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37642

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37474

BUCKET

ASSEMBLY - 24 inch (610 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37507

EDGE

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37475

BUCKET

ASSEMBLY - 30 inch (762 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 8 -12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37505

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37476

BUCKET

ASSEMBLY - 36 inch (914 mm) machinery item - see Figure 002 for ordering, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37471

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

REF

INSTRUCTION

BUCKET TEETH

1шт.

13

D26368

SUPPORT

SHANK - tooth, original equipment

1шт.

14

D58499

SUPPORT

SHANK - tooth, service option

1шт.

15

D27748

TOOTH

POINT - tooth, interchangeable with D58576 or D58577

1шт.

16

D36720

TOOTH

POINT - tooth, heavy duty service option, interchangeable with D58592 or D58593

1шт.
