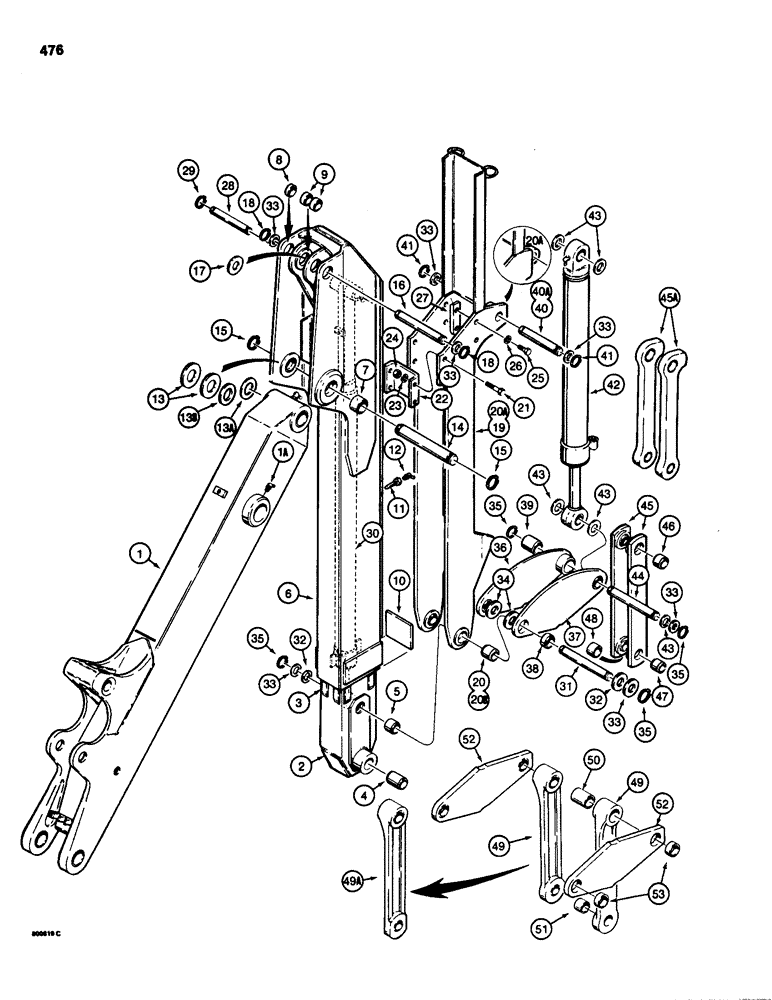

Запчасти Case 580SD (476) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 466

1шт.

1a

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT

2шт.

2

D55727

ARM

DIPPER ASSEMBLY - extension, Includes: Ref. 3 - 5

1шт.

3

D55688

STRIP

WEAR STRIP - dipper slide, steel

8шт.

4

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper, at bucket

2шт.

5

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper, at bucket link

2шт.

D73826

COVER

DIPPER HOUSING ASSEMBLY - backhoe, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - dipper

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

8

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- at dipper cylinder, left-hand side plate, if used

1шт.

9

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- dipper cylinder, inner plate

2шт.

10

D61708

BLOCK

- stop

1шт.

11

219-107

NOZZLE CAP

NOZZLE - extension, grease fitting, used with item 12 to lubricate dipper slide

1шт.

12

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used with item 11 to lubricate dipper slide

1шт.

13

D127471

SPACER

- 5/16" (8 mm) thick, dipper, Serial Range: housing-boom

4шт.

13a

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

(.78 mm), Spacer .035" Thk

1шт.

13b

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 1/8" (3.2 mm) thick, between boom and dipper

1шт.

14

D45034

PIN

- dipper, Serial Range: housing-boom

1шт.

15

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

16

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - dipper cylinder to dipper housing

1шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat

2шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

19

D61744

ARM

EXTENSION ASSEMBLY - dipper, uses Refs. 25-27 and Ref. 40, no longer available, for service order D124163 extension (Ref. 20A) and D38907 pin (Ref. 40A), Includes: Ref. 20

1шт.

20

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

- bucket link pin

2шт.

20a

D124163

ARM

EXTENSION ASSEMBLY - dipper, does not use Refs. 25-27 and uses Ref. 40A pin, Includes: Ref. 20B

1шт.

20b

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- bucket link pin

2шт.

21

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

D61701

BRACE

PLATE - guide

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with Ref. 19 only Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with Ref. 19 only 1/2"

4шт.

27

D54095

BLOCK

- guide, used with Ref. 19 only

2шт.

28

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-housing

1шт.

29

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

30

G101183

CYLINDER

- dipper extension, parts list Figure 416

1шт.

31

D53818

PIN,44.45mm OD x 278.89mm L

- dipper and dipper extension to bucket links

1шт.

32

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (3.2 mm) thick, bucket link to extension

1шт.

33

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - 1/16" (1.6 mm) thick, spacer

1шт.

34

D77725

WASHER

- 5/16" (7.9 mm) thick, spacer

2шт.

35

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

36

D61088

LINK

- dipper and extension to dump links, left-hand, welded assembly, used with Ref. 45 or 45A

1шт.

Ref. 36 and 37 and Ref. 45 or 45A welded links must be used together on the same backhoe.

1шт.

37

D61087

LINK

- dipper and extension to dump links, right-hand, welded assembly, used with Ref. 45 or 45A, Includes: Ref. 38 and 39

1шт.

Ref. 36 and 37 and Ref. 45 or 45A welded links must be used together on the same backhoe.

1шт.

38

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper

1шт.

39

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket cylinder

1шт.

40

D37602

PIN

- bucket cylinder to dipper extension, 9-13/16" long, used with Ref. 19 only

1шт.

40a

D38907

PIN,1.75" OD x 5 5/16 L

- bucket cylinder to dipper extension, 5-5/16" long, used with Ref. 20A only

1шт.

41

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

42

REF

INSTRUCTION

CYLINDER - bucket, for correct assembly and components, see Figure 412 or 414

1шт.

43

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, bucket cylinder to links

1шт.

44

D53818

PIN,44.45mm OD x 278.89mm L

- bucket cylinder

1шт.

45

D61244

LINK

- bucket cylinder to bucket, used with all buckets except L59873 High Capacity Backhoe Bucket, welded assembly, used with items 36 and 37

2шт.

Ref. 36 and 37 and Ref. 45 or 45A welded links must be used together on the same backhoe.

1шт.

45a

D50157

LINK

- bucket cyinder to bucket, used with L59873 High Capacity Backhoe Bucket only, used with Refs. 36 and 37, Includes: Ref. 46 and 47

2шт.

Ref. 36 and 37 and Ref. 45 or 45A welded links must be used together on the same backhoe.

1шт.

46

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at cylinder, part of Ref. 45 or 45A

1шт.

47

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket, part of Ref. 45 or 45A

1шт.

48

D93227

BUSHING

SPACER - bucket link

1шт.

49

D120755

LINK

- bucket cylinder to bucket, used with Ref. 52, cast type, no longer used, order D126492 link

2шт.

Ref. 49 or 49A cast links and Ref. 52 link must be used together on the same backhoe.

1шт.

49a

D126492

LINK

- bucket cylinder to bucket, used with Ref. 52, cast type, Includes: Ref. 50 and 51

2шт.

Ref. 49 or 49A cast links and Ref. 52 link must be used together on the same backhoe.

1шт.

50

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder, D120755 or D126492 link

1шт.

51

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket, D120755 or D126492 link

1шт.

52

D89620

LINK

- bucket cylinder to dipper, used with Ref. 49 and 49A, Includes: Ref. 53

2шт.

Ref. 49 or 49A cast links and Ref. 52 link must be used together on the same backhoe.

1шт.

53

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.
