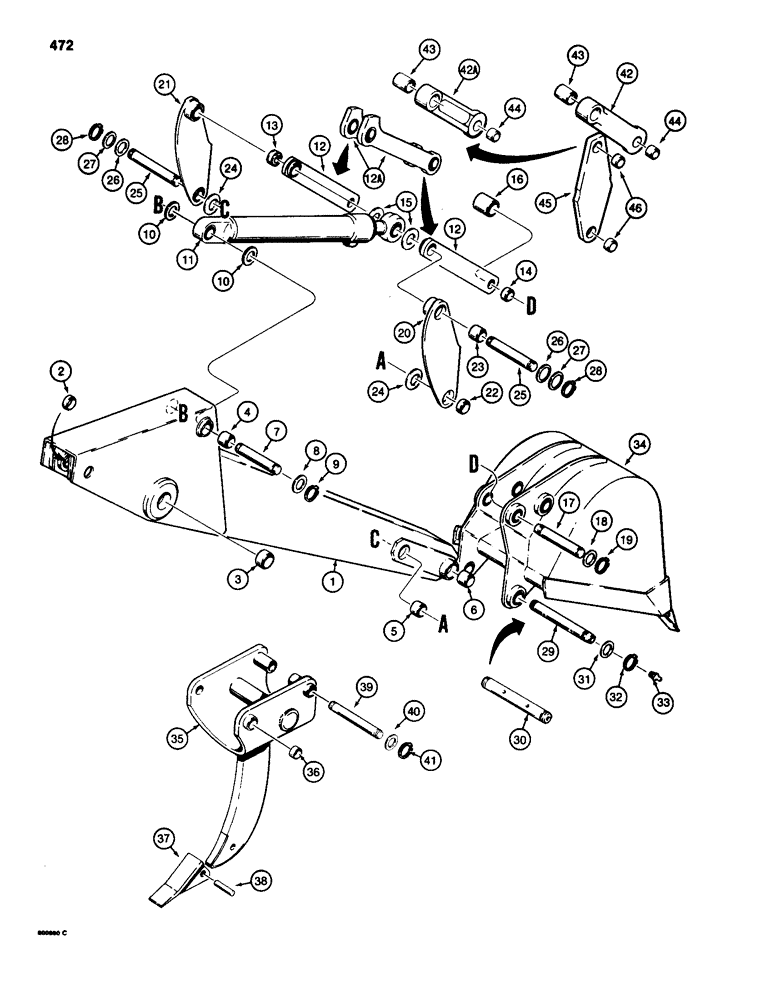

Запчасти Case 580SD (472) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

D77895

BOOM

DIPPER ASSEMBLY - backhoe, uses D34340 bushing (Ref. 4) at bucket cylinder mounting, no longer used, order D128946 dipper

1шт.

D128946

ARM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- dipper, at dipper cylinder

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper, at boom

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper, at bucket cylinder, D77895 dipper only

2шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper, at bucket links

2шт.

6

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- dipper, at bucket

2шт.

7

D52522

PIN,44.45mm OD x 211.84mm L

- bucket cylinder dipper

1шт.

8

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

- flat, 1/16" (1.6 mm) thick

1шт.

9

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

10

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (3.2 mm) thick

2шт.

11

REF

INSTRUCTION

CYLINDER - backhoe bucket, for correct assembly and components, see Figure 412 or 414

1шт.

12

D61244

LINK

- bucket cylinder to bucket, used with all buckets except L59873 High Capacity Backhoe Bucket, welded assembly, used with Refs. 20 and 21

2шт.

Ref. 12 or 12A links and Ref. 20 and 21 must be used together on the same backhoe. For backhoes using cast bucket links, see Ref. 42 - 46.

1шт.

12a

D50157

LINK

- bucket cylinder to bucket, used with L59873 High Capacity Backhoe Bucket, only, used with Refs. 20 and 21, Includes: Ref. 13 and 14

2шт.

Ref. 12 or 12A links and Ref. 20 and 21 must be used together on the same backhoe. For backhoes using cast bucket links, see Ref. 42 - 46.

1шт.

13

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at bucket cylinder, part of Ref. 12 or 12A link

1шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket, part of Ref. 12 or 12A link

1шт.

15

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (3.2 mm) thick

2шт.

16

D93227

BUSHING

SPACER - bucket links bucket

1шт.

17

D37614

PIN,38mm Od x 246mm L

- bucket links bucket

1шт.

18

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

2шт.

19

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

20

D61087

LINK

- bucket cylinder to dipper, right-hand, welded assembly, used with Refs. 12 or 12A link, also see Ref. 45

1шт.

Ref. 12 or 12A links and Ref. 20 and 21 must be used together on the same backhoe. For backhoes using cast bucket links, see Ref. 42 - 46.

1шт.

21

D61088

LINK

- bucket cylinder to dipper, left-hand, welded assembly, used with Refs. 12 or 12A link, also see Ref. 45, Includes: Ref. 22 and 23

1шт.

Ref. 12 or 12A links and Ref. 20 and 21 must be used together on the same backhoe. For backhoes using cast bucket links, see Ref. 42 - 46.

1шт.

22

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper

1шт.

23

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket cylinder

1шт.

24

D77725

WASHER

- special, 3/8" (9.5 mm) thick

2шт.

25

D53818

PIN,44.45mm OD x 278.89mm L

- bucket linkage dipper

2шт.

26

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (3.2 mm) thick

1шт.

27

30575

SPRING

- flat, 1/16" (1.6 mm) thick

1шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

29

D64799

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, all buckets except 12" (305 mm) buckets

1шт.

30

D55584

PIN,44.45mm OD x 327.15mm L

- dipper to bucket, 12" (305 mm) buckets only

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (3.2 mm) thick

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

34

REF

INSTRUCTION

BUCKET - backhoe, see pages 481-487 for options

1шт.

D54136

SUPPORT ASSY.

FROST POINT ASSEMBLY - backhoe, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

36

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

37

D83306

POINT

- tooth

1шт.

38

D43417

PIN

- tooth point

1шт.

39

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

40

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16" ID

2шт.

41

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

42

D120755

LINK

- bucket cylinder to bucket, used with Ref. 45, cast type, no longer used, order D126492 link

2шт.

Ref. 42 and 42A links and Ref. 45 links must be used together on the same backhoe and will work with all buckets. For backhoes using welded bucket links, see Ref. 12, 12A, 20 and 21.

1шт.

42a

D126492

LINK

- bucket cylinder to bucket, used with Ref. 45, cast type, Includes: Ref. 43 and 44

2шт.

Ref. 42 and 42A links and Ref. 45 links must be used together on the same backhoe and will work with all buckets. For backhoes using welded bucket links, see Ref. 12, 12A, 20 and 21.

1шт.

43

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder, D120755 or D126492 link

1шт.

44

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket, D120755 or D126492 link

1шт.

45

D89620

LINK

- bucket cylinder to dipper, used with Ref. 42 and 42A, Includes: Ref. 46

2шт.

Ref. 42 and 42A links and Ref. 45 links must be used together on the same backhoe and will work with all buckets. For backhoes using welded bucket links, see Ref. 12, 12A, 20 and 21.

1шт.

46

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.
