(470) - BOOM LATCH

Запчасти Case 580SD (470) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS

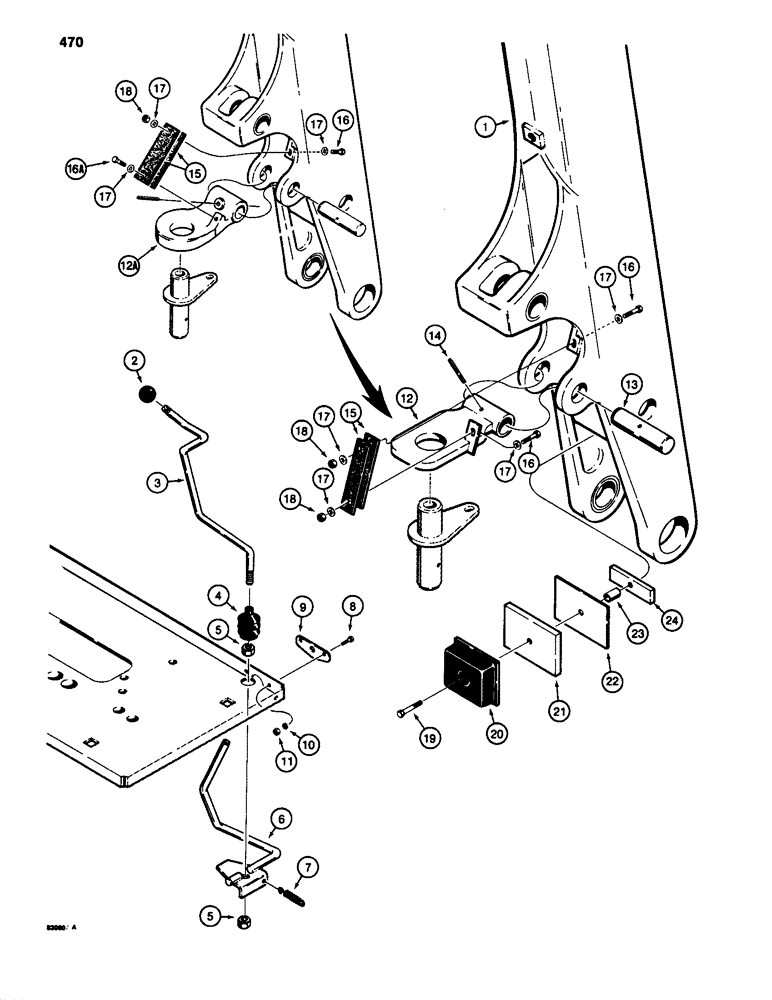

Схема запчастей Case 580SD - (470) - BOOM LATCH (09) - CHASSIS/ATTACHMENTS
17
22
17
24
18
14
19
23
8
6
16
12a
17
3
16a
16
7
4
10
18
16
5
1
5
15
18
17
12
15
17
11
13
17
2
9
21
17
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BOOM - backhoe, parts list Figure 466

1шт.

2

D59912

KNOB

- lever, latch release

1шт.

3

D91102

LEVER

- boom latch release

1шт.

4

D85869

BELLOWS

BOOT - rubber, lever

1шт.

5

129-125

NUT,1/2"-20, G5

2шт.

6

D91098

ROD

- latch release

1шт.

7

D91097

SPRING

- rod

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

9

D90398

PLATE

- rod support

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

2шт.

12

D90687

LATCH

- backhoe boom, no longer used, for service order D125775 latch and 113-217 bolt

1шт.

12a

D125775

LATCH

- backhoe boom

1шт.

13

D89366

PIN,38.1mm OD x 145mm L

- boom latch

1шт.

14

138-144

LOCK PIN,1/4" x 2 1/2", Slotted

PIN, 1/4" x 2 1/2", Slotted

1шт.

15

L73300

STRAP

- boom latch

2шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1-2шт.

16a

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

17

95-6

WASHER,3/8"

- flat, 3/8"

3-4шт.

18

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

1-2шт.

19

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

D90990

GUARD

BUMPER - rubber, boom

1шт.

21

D90970

PLATE

- boom stop, support

1шт.

22

D92254

SHIM

- plate, boom stop

1шт.

23

R46103

SPACER

- plate

1шт.

24

D90971

PLATE

- support

1шт.
