Запчасти Case 580SD (466) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

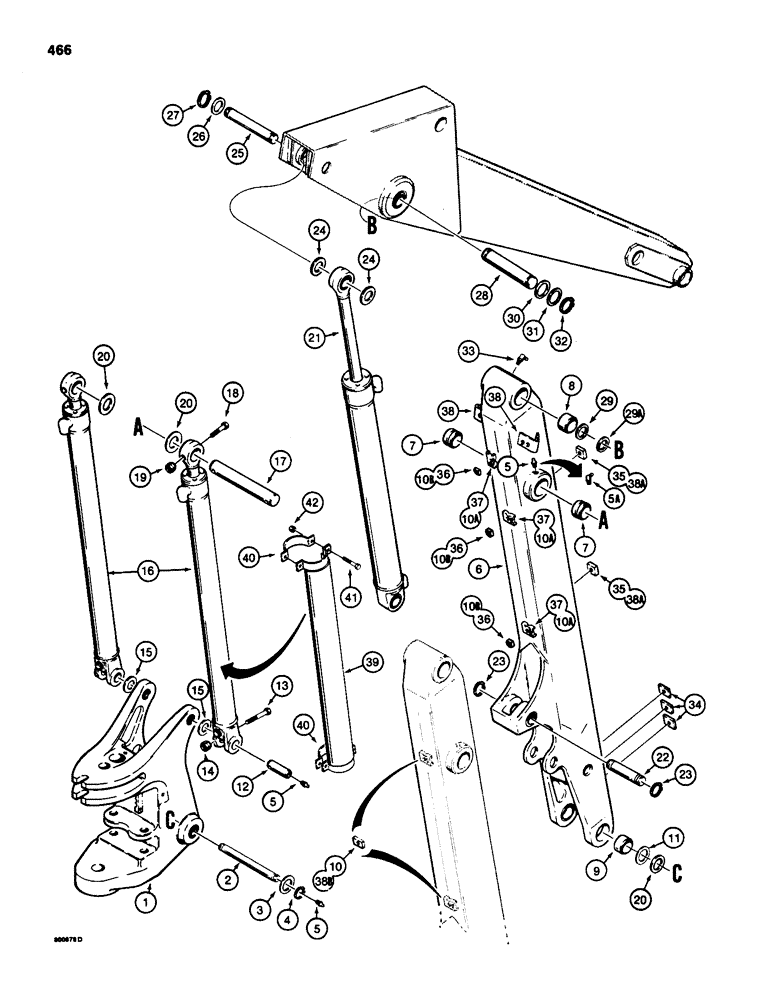

Схема запчастей Case 580SD - (466) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS
39
13
26
17
2
36
10
5a
3
37
1
10b
37
38a
5
32
11
36
8
7
20
10a
20
15
29a
24
31
24
7
20
23
10a
35
5
34
21
33
38b
38a
42
41
10a
25
40
10b
28
29
5
19
4
18
37
35
27
36
12
40
38
10b
14
6
15
38
22
16
23
9
30

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

SWING TOWER - see Figure 464 for bushings

1шт.

2

D91240

PIN,50.8mm OD x 402mm L

- boom to swing tower

1шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2" (51 mm) ID

2шт.

4

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4-6шт.

5a

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used on models with extendable dipper, if used

2шт.

6

D121393

LOWER LINK

BOOM - backhoe, Inlcudes: Ref. 7 - 10

1шт.

7

D95362

BUSHING

- boom cylinder mounting, top

2шт.

8

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper pivot

2шт.

9

D50698

BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L

- boom pivot

2шт.

10

D50004

BLOCK

- tapped, Serial Range: welded-boom

2шт.

10a

D88417

CAGE ASSY.

CAGE - weld to boom for retaining Ref. 10B, if used

1шт.

10b

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC, if used

1шт.

11

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, between swing tower and boom .035" Thk

1шт.

12

D49866

PIN,38.1mm OD x 96.52mm L

- boom cylinder to swing tower

2шт.

13

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

14

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

15

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer, flat, 1-1/2" (38 mm) ID

1шт.

17

D49865

PIN,50.8mm OD x 304.8mm L

- boom, Serial Range: cylinder-boom

1шт.

18

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

19

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

20

195-2155

WASHER,2 1/16" x 3" x .109"

- spacer, flat, 2" (51 mm) ID

1шт.

21

REF

INSTRUCTION

CYLINDER - dipper, for correct assembly and components, see parts list Figures 406, 408 or 410

1шт.

22

D72359

PIN,44.45mm OD x 142.24mm L

- dipper, Serial Range: cylinder-boom

1шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

24

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4" (44 mm) ID

2шт.

25

D52522

PIN,44.45mm OD x 211.84mm L

- dipper, Serial Range: cylinder-dipper

1шт.

26

86977693

NUT,Serrated, #8 - 32, Gr 5

- spacer, 1-3/4" (44 mm) ID

1шт.

27

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

28

D45523

PIN,50.8mm OD x 276.35mm L

-, Serial Range: boom-dipper

1шт.

29

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer, 2" (51 mm) ID .035" Thk

1шт.

29a

195-2155

WASHER,2 1/16" x 3" x .109"

- 2" (51 mm) ID x 1/8" (3.2 mm) thick

1шт.

30

72990

WASHER

- 2" (51 mm) ID x 1/16" (1.6 mm) thick

2шт.

31

195-2155

WASHER,2 1/16" x 3" x .109"

- 2" (51 mm) ID x 1/8" (3.2 mm) thick

2шт.

32

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

33

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

REF

INSTRUCTION

USED WITH EXTENDABLE DIPPER

1шт.

34

D83825

BLOCK

- tapped, Serial Range: welded-boom

3шт.

35

25-288

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

- square, 1/2" - 13 NC, welded to boom, if used

2шт.

36

25-226

SQUARE NUT,Sq, 3/8"-16

- square, 3/8" - 16 NC

3шт.

37

D88417

CAGE ASSY.

CAGE - welded to boom, if used

3шт.

38

D45559

BRACKET

- tube clamp, Serial Range: welded-boom

2шт.

38a

D52843

BLOCK

- tapped, welded to boom, if used, see Ref. 35

2шт.

38b

D50004

BLOCK

- tapped, welded to boom, if used

2шт.

REF

INSTRUCTION

USED WITH BOOM CYLINDER GUARDS

1шт.

39

D62468

GUARD

- boom cylinder, if used

2шт.

40

D62467

BRACKET

- guard mounting, if used

4шт.

41

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex head, 5/16" - 18 NC x 3-1/4", plated

8шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

8шт.

Выбрано товаров: 49
