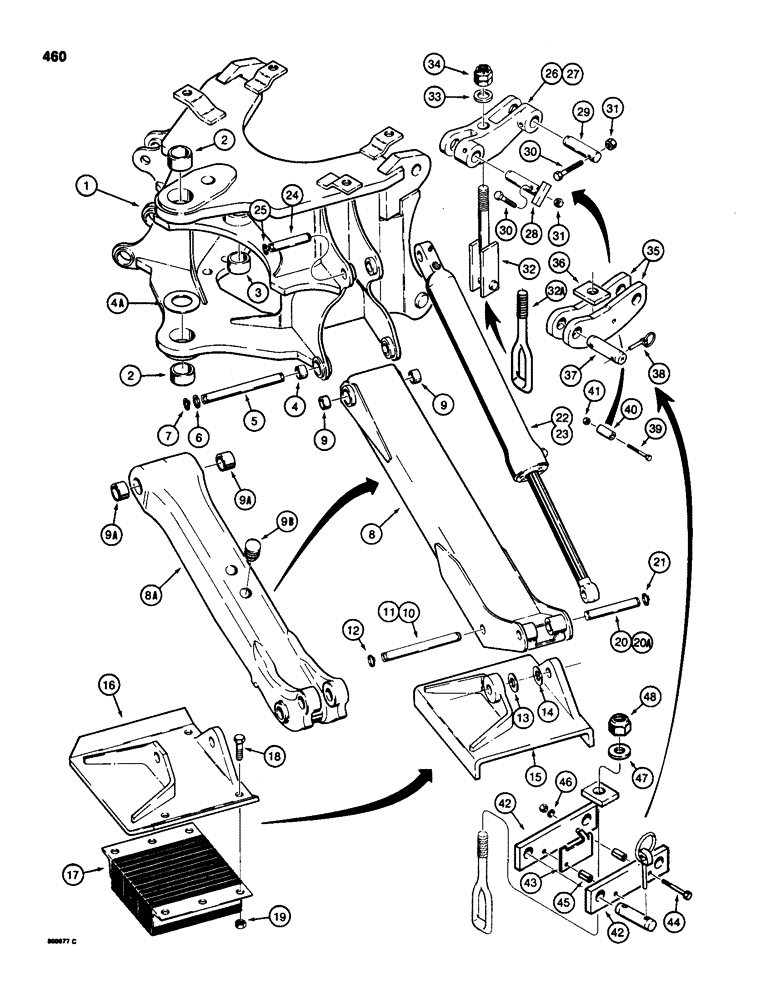

Запчасти Case 580SD (460) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

D90810

FRAME

- backhoe mounting, Includes: Ref. 2 - 4A

1шт.

2

D90722

BUSHING,57.38mm ID x 76.2mm OD x 43mm L

- swing tower mounting, upper and lower

2шт.

3

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- swing cylinder plate

2шт.

4

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- stabilizers

4шт.

4a

D73848

WASHER,60mm ID x 120mm OD x 4mm L

- bearing, Serial Range: welds-frame

1шт.

5

D89838

PIN,44.45mm OD x 320mm L

- stabilizer leg to mounting frame

2шт.

6

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer, 1-3/4" (44 mm) ID

4шт.

7

D25280

SNAP RING,#175, Ext

Ring, Snap, , D89838 pin #175, Ext

4шт.

8

D87732

STABILIZER

LEG - stabilizer, welded design, Includes: Ref. 9, no longer available, order D94215 leg

1шт.

8a

D94215

STABILIZER

LEG - stabilizer, cast design, Includes: Refs. 9, 9A and 9B

2шт.

9

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- leg to frame, Ref. 8 only

2шт.

9a

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- leg to frame, Ref. 8A only

2шт.

9b

D120450

PLUG

- leg, Ref. 8A only

4шт.

10

D28648

PIN,1.5" OD x 10 7/16" L

- D88427 stabilizer, Serial Range: plate-leg

2шт.

11

D50696

PIN,38.1mm OD x 225.55mm L

- D61376 stabilizer, Serial Range: plate-leg

2шт.

12

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

13

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- shim, 2-1/2" (64 mm) OD x 7/64" (3 mm) thick

1шт.

14

D31312

WASHER

- shim, 2-3/4" (70 mm) OD x 1/16" (1.6 mm) thick

1шт.

15

D88427

PLATE

- stabilizer, cleated, if used

2шт.

16

D61376

STABILIZER

PLATE - stabilizer, street or cemetery pad, if used, uses D61368 pad

2шт.

17

D61368

PAD

Rubber, D61376 stabilizer plate, if used

2шт.

18

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

19

129-108

NUT,3/4"-10, G5

8шт.

20

D50695

PIN,38.1mm OD x 195.33mm L

- stabilizer cylinder to leg, used with Ref. 8

2шт.

20a

D26002

PIN,38.1mm OD x 187.32mm L

- stabilizer cylinder to leg, used with Ref. 8A

2шт.

21

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

22

REF

INSTRUCTION

CYLINDER - stabilizer, right-hand, parts list Figure 396

1шт.

23

REF

INSTRUCTION

CYLINDER - stabilizer, left-hand, parts list Figure 396, not shown

1шт.

24

D32930

PIN,38.1mm OD x 127mm L

- stabilizer, Serial Range: cylinder-frame

2шт.

25

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

26

D91020

LINK

- frame to chassis, upper, left-hand, not shown, one piece design, no longer available, order D101397 kit, (1) D120163_plate (item 36), (4) D33805 pins (item 38), and (2) D49812 pins (item 37)

1шт.

27

D91021

LINK

- frame to chassis, upper, right-hand, one piece design, no longer available, order D101397 kit, (1) D120163 plate (item 36), (4) D33805 pins (item 38), and (2) D49812 pins (item 37)

1шт.

28

D90826

PIN

- backhoe frame to link, used with Refs. 26 and 27

2шт.

29

D90825

PIN

- link to chassis, used with Refs. 26 and 27

2шт.

30

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

If used Hex, 1/2"-13 x 3 1/2", G5

4шт.

31

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated, if used

4шт.

32

D90999

ROD

- tension, welded assembly, no longer available, order D123960 rod

2шт.

32a

D123960

ROD

- tension, cast

2шт.

33

D64968

WASHER

- hardened, 1-1/4", used with Refs. 26, 27, and 35 links

2шт.

34

131-454

LOCK NUT,1 1/4"-7

NUT - hex, self-locking, 1-1/4" - 7 NC, used with Refs. 26, 27, and 35 links

2шт.

35

D120162

TRUSS ROD

LINK - curved, frame to chassis, no longer available, order D101397 Kit, see below

4шт.

36

D120163

PLATE

- link, used with Ref .35 or 42 links

2шт.

37

D49812

PIN,38.1mm OD x 137.16mm L

- link, used with Ref. 35 or 42 links

4шт.

38

D33805

PIN

- self-locking, if used

8шт.

39

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

If used Hex, 3/8"-16 x 3 1/2", G5

2шт.

D101397

KIT

- backhoe mounting link, must order two kits when servicing both sides of backhoe frame, Includes: Ref. 40 - 48

1шт.

40

D94121

BUSHING

SPACER - link

1шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

42

D123569

LINK

- flat bar type, Serial Range: frame-chassis

2шт.

43

D124421

CLIP,ELECTRICAL

RETAINER - links, used with Ref. 42

1шт.

44

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

45

D64745

SPACER

- link, used with Ref. 42

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

47

D36434

WASHER

- hardened, 1-1/4", used with Ref. 42

1шт.

48

131-479

LOCK NUT,1 1/4"-7

NUT - hex, self-locking, 1-1/4" - 7 NC, plated, used with Ref. 42

1шт.
