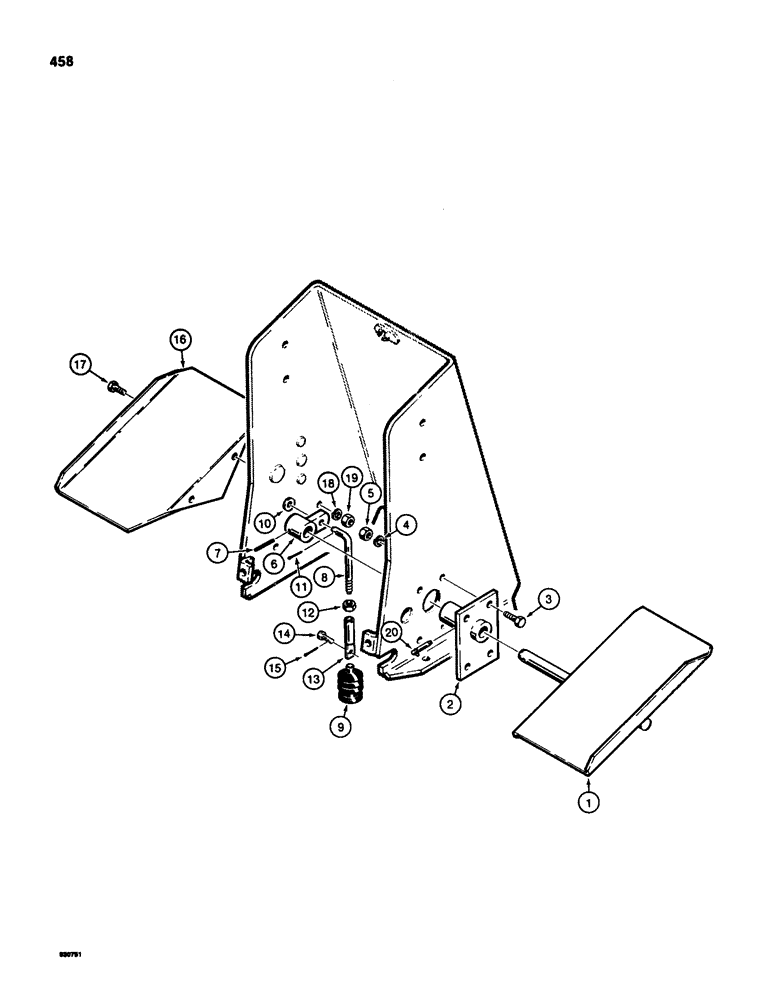

Запчасти Case 580SD (458) - BACKHOE EXTENDABLE DIPPER CONTROL, HAND SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

D87866

PEDAL

- extendable dipper control

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D87860

LEVER

- pivot

1шт.

7

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

8

D87867

ROD

- control

1шт.

9

D85869

BELLOWS

BOOT - control rod

1шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

129-123

NUT,3/8"-24, G5

1шт.

13

D87857

LINK

-, Serial Range: rod-valve

1шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

15

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

16

D87863

PLATFORM

- left-hand foot

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT

1шт.
