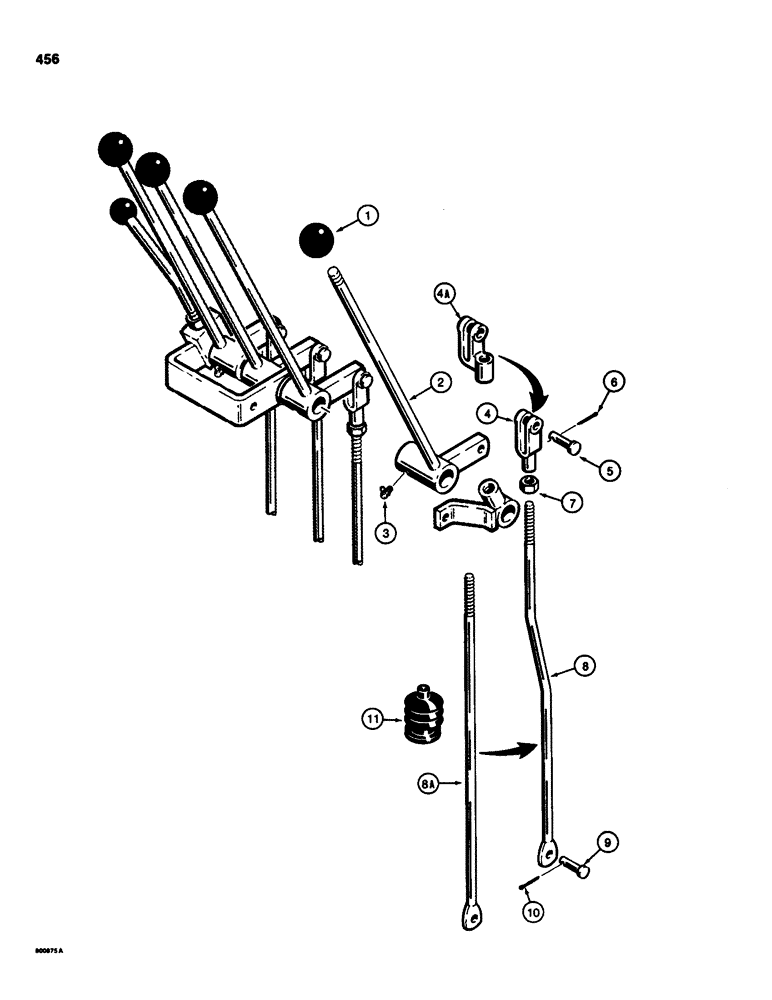

Запчасти Case 580SD (456) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

D87528

LEVER

CONTROL LEVER - extendable dipper

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

1шт.

4

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated, straight, if used 3/8"-24

1шт.

4a

L11182

YOKE,3/8" - 24

CLEVIS - 3/8", offset, if used

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

129-123

NUT,3/8"-24, G5

1шт.

8

D85919

ROD

- extendable dipper control, bent, uses straight clevis, if used

1шт.

8a

D30821

ROD

- extendable dipper control, straight, uses offset clevis, if used

1шт.

9

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

D85869

BELLOWS

BOOT - rod, if used

1шт.
