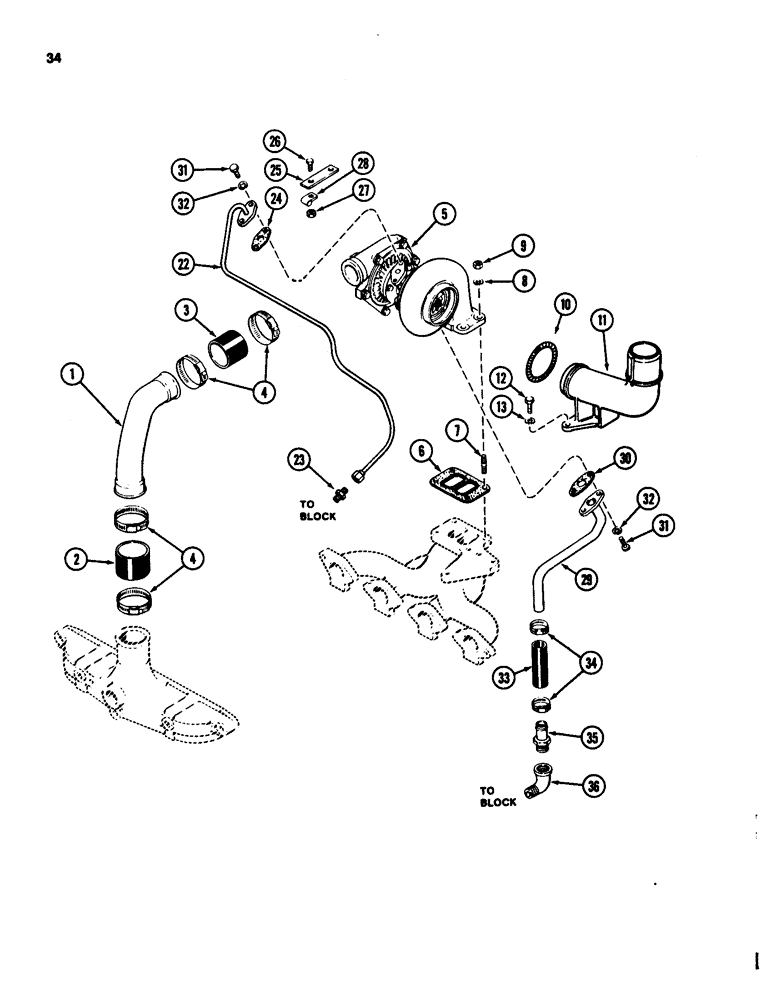

Запчасти Case 580SD (034) - TURBOCHARGER SYSTEM, 207 TURBOCHARGED DIESEL ENGINE (02) - ENGINE

1

A153557

TUBE

- air intake

1шт.

2

A153559

INTAKE AIR HOSE,2.25" ID x 1.75"

HOSE - Tube to intake manifold 2.25" ID x 1.75"

1шт.

3

A153558

HOSE,2.00" ID x 1.75"

- Tube to Turbocharger 2.00" ID x 1.75"

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46 to 70 mm) #36, 1.81/2.75 Type F Worm

4шт.

5

A154200

TURBOCHARGER

ASSEMBLY - new

1шт.

5

A157005

REMAN-TURBOCHARGER

TURBOCHARGER ASSEMBLY - remanufactured

1шт.

5

A157004

CORE-TURBOCHARGER

RETURN NUMBER - use this part no. to return turbocharger core for credit

1шт.

6

A155267

GASKET

-, Serial Range: turbocharger-manifold

1шт.

7

G11204

STUD

- turbocharger mounting, 3/8 NC x 1-1/2 inch (Order G102128)

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

131-903

NUT,3/8"-16

NUT - hex, Seez pruf, 3/8 inch NC

4шт.

10

A155972

RING

- seal, turbocharger outlet

1шт.

11

A156320

ELBOW

- exhaust outlet

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

A156534

TUBE

- turbocharger oil supply (Replaces A155062)

1шт.

23

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF

1шт.

24

A153578

GASKET

-, Serial Range: tube-turbocharger

1шт.

25

A155115

BRACKET - tube clamp

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

28

49845

CLAMP

CLIP - tube retaining

1шт.

29

A155063

TUBE ASSY.

TUBE - turbocharger oil drain

1шт.

30

A58892

GASKET,1.59mm Thk

- tube flange

1шт.

31

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm fine

4шт.

32

92-5

LOCK WASHER,5/16"

4шт.

33

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube (Replaces A58893)

1шт.

34

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4 inch (30 x 44 mm)

2шт.

35

A155084

CONNECTOR, ELEC

FITTING - drain

1шт.

36

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.
