Запчасти Case 580SD (452) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

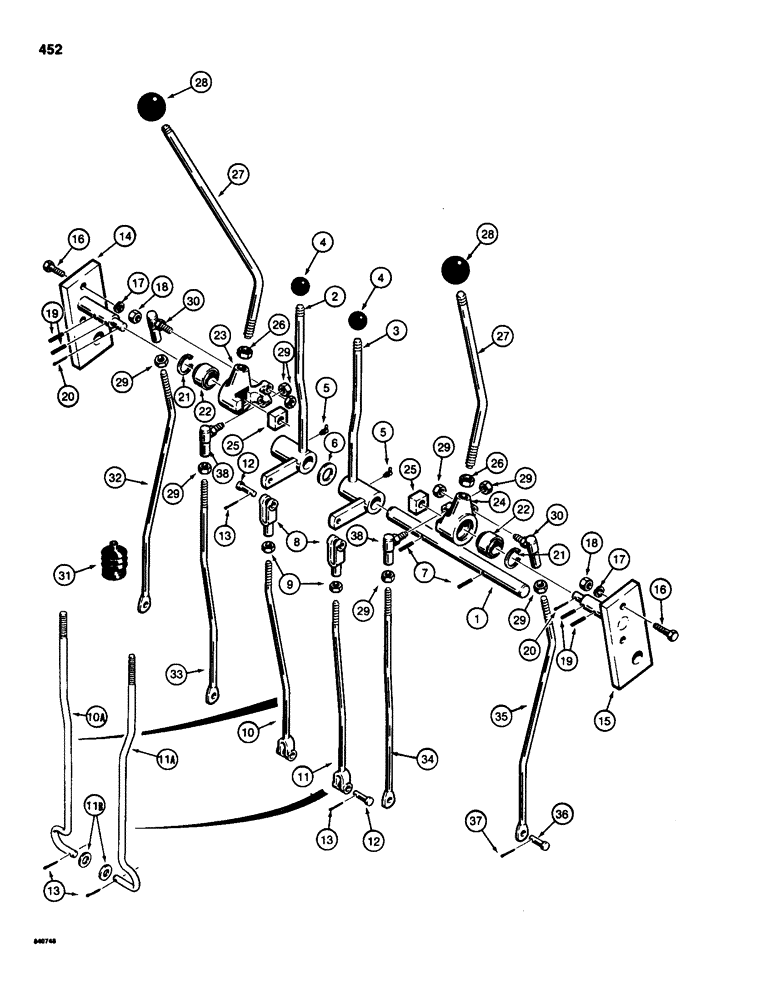

Схема запчастей Case 580SD - (452) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS
37
13
28
21
29
7
32
29
5
25
23
1
16
3
11
26
29
17
11b
5
4
35
13
27
36
14
21
19
10a
31
13
26
11a
8
29
29
17
22
12
20
27
16
30
38
2
33
38
15
28
12
4
30
19
24
18
20
18
29
10
9
22
6
29
25
34

Артикул

Название

Примечание

Количество

1

D91195

SHAFT

- stabilizer control levers

1шт.

2

D91169

LEVER

CONTROL LEVER - stabilizer, left-hand

1шт.

3

D91170

LEVER

CONTROL LEVER - stabilizer, right-hand

1шт.

4

D59912

KNOB

- stabilizer control lever

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

6

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, used as a shim

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

8

H44198

YOKE

CLEVIS - 5/16", plated

2шт.

9

129-122

NUT,5/16"-24, G5

2шт.

10

D91182

ROD

- left-hand stabilizer, no longer used, order D126335 rod

1шт.

10a

D126335

ROD

- left-hand stabilizer

1шт.

11

D91181

ROD

- right-hand stabilizer, no longer used, order D126336 rod

1шт.

11a

D126336

ROD

- right-hand stabilizer

1шт.

11b

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2-4шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

14

D91534

SUPPORT

- backhoe controls, left-hand

1шт.

15

D91185

SUPPORT

- backhoe controls, right-hand

1шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

21

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, brg

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BEARING - self-aligning

2шт.

23

D38302

ADAPTER

LEVER - pivot, left-hand

1шт.

24

D38303

ADAPTER

LEVER - pivot, right-hand

1шт.

25

D38305

BLOCK

- wear

2шт.

26

129-127

NUT,5/8"-18, G5

2шт.

27

D94184

LEVER

CONTROL LEVER - boom and swing, dipper and bucket

2шт.

28

D39118

KNOB

- control levers

2шт.

29

129-123

NUT,3/8"-24, G5

8шт.

30

D38296

JOINT

BALL JOINT - 3/8"

2шт.

31

D85869

BELLOWS

BOOT - rods, if used

6шт.

32

D91177

ROD

- boom control

1шт.

33

D91178

ROD

- swing control

1шт.

34

D91179

ROD

- bucket control

1шт.

35

D91180

ROD

- dipper control

1шт.

36

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

37

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

38

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

- 3/8", special

2шт.

Выбрано товаров: 41
