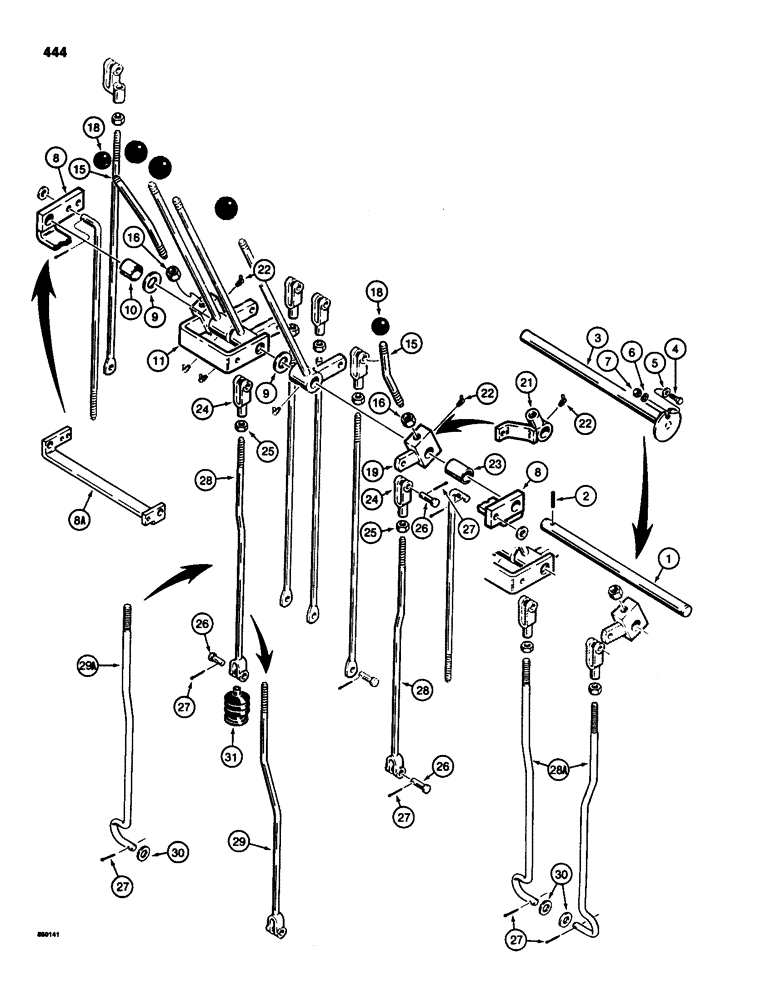

Запчасти Case 580SD (444) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D79526

ROD

SHAFT - control levers, used with D84083 control tower, see Figure 442, if used

1шт.

2

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Used with D79526 shaft, Ref. 1 1/4" x 1 1/4", Slotted

1шт.

3

D123224

SHAFT

- control levers, used with D123189 control tower, see Figure 442, if used

1шт.

4

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

5

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4", black, if used

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

1шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

1шт.

8

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

8a

D129392

BRACKET

- swing pivot

1шт.

9

195-545

WASHER,3/4", SAE

- flat, plated, used as a shim

1шт.

10

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

11

D92993

BRACKET

- left-hand stabilizer pivot

1шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

L108004

LEVER

CONTROL LEVER - stabilizer

2шт.

16

129-125

NUT,1/2"-20, G5

Used with Ref. 15 1/2"-20, G5

2шт.

17

RESERVED

1шт.

18

D59912

KNOB

- stabilizer control levers

2шт.

19

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

20

RESERVED

1шт.

21

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

22

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

3шт.

23

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

24

H44198

YOKE

CLEVIS - 5/16", metal, plated, replaces fiberglass clevis on some models

2шт.

25

129-122

NUT,5/16"-24, G5

2шт.

26

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2-4шт.

27

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

28

D85934

ROD

- stabilizer control, two used on models without extendable dipper, no longer used, order D126331 rod and (2) 195-102 washers

1-2шт.

28a

D126331

STEM

ROD - stabilizer control, two used on models without extendable dipper

1-2шт.

29

D87482

ROD

- left-hand stabilizer control on models with extendable dipper, if used

1шт.

29a

D126334

ROD

- left-hand stabilizer control on models with extendable dipper, if used

1шт.

30

195-102

WASHER,1/4"

- flat, , plated, if used 1/4"

2шт.

31

D85869

BELLOWS

BOOT - rods, if used

2шт.
