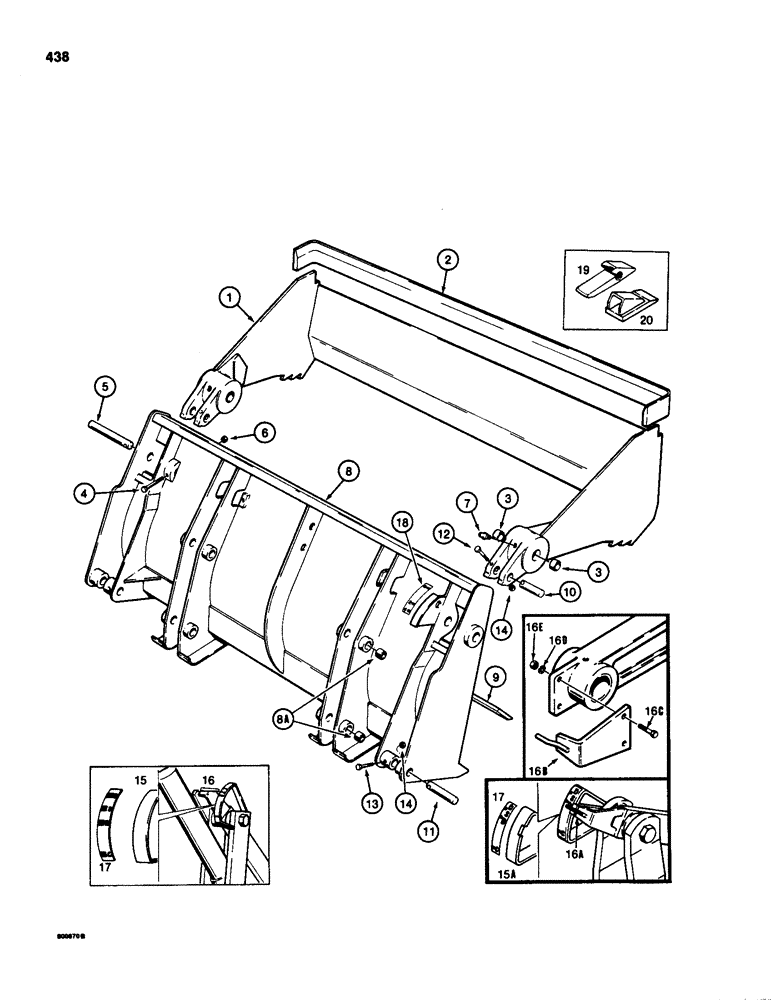

Запчасти Case 580SD (438) - CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

D75644

BUCKET ASSEMBLY - clam, 82" (2083 mm) wide, machinery item, see Figure 002 for ordering, Includes: Ref. 1 - 14

1шт.

D75633

SHELL

CLAM ASSEMBLY - bucket, Includes: Ref. 1 - 3

1шт.

Compaction plate for this bucket is D75630.

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

2

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

CUTTING EDGE - clam

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam pivot

4шт.

4

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

6

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

D79843

BLADE

ASSEMBLY - clam bucket, Includes: Ref. 8, 8A and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

8a

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

- bucket ear

8шт.

9

D75636

EDGE, CUTTING

CUTTING EDGE - blade

1шт.

10

D51392

PIN,31.72mm OD x 101.6mm L

- cylinder mounting, upper

2шт.

11

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

12

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

Upper mounting pin Hex, 3/8"-16 x 3 1/2", G5

2шт.

13

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Lower mounting pin Hex, 3/8"-16 x 2 3/4", G5

2шт.

14

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

15

D51816

PLATE

GAUGE - bucket position, used with straight bucket cylinder links

1шт.

See Figure 432 to identify straight and offset bucket links.

1шт.

15a

D120544

BAR

GAUGE - bucket position, used with offset bucket cylinder links

1шт.

See Figure 432 to identify straight and offset bucket links.

1шт.

16

D51726

PIN

POINTER - bucket position, used with straight bucket cylinder links and welded bucket links

1шт.

16a

D120546

INDICATOR

POINTER - bucket position, used with offset bucket cylinder links and welded bucket links

1шт.

See Figure 432 to identify straight and offset bucket links.

1шт.

16b

D123157

SUPPORT

POINTER - bucket position, used with offset bucket cylinder links and cast type bucket links

1шт.

See Figure 432 to identify straight and offset bucket links.

1шт.

16c

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

16d

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16e

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

REF

INSTRUCTION

DECAL - bucket position, see Figure 604 for decal number

1шт.

18

REF

INSTRUCTION

DECAL - clam position, see Figure 604 for decal number

1шт.

19

D58499

SUPPORT

SHANK - bucket tooth, if used

9шт.

20

D27748

TOOTH

POINT - tooth, interchangeable with D58576 or D58577

9шт.
