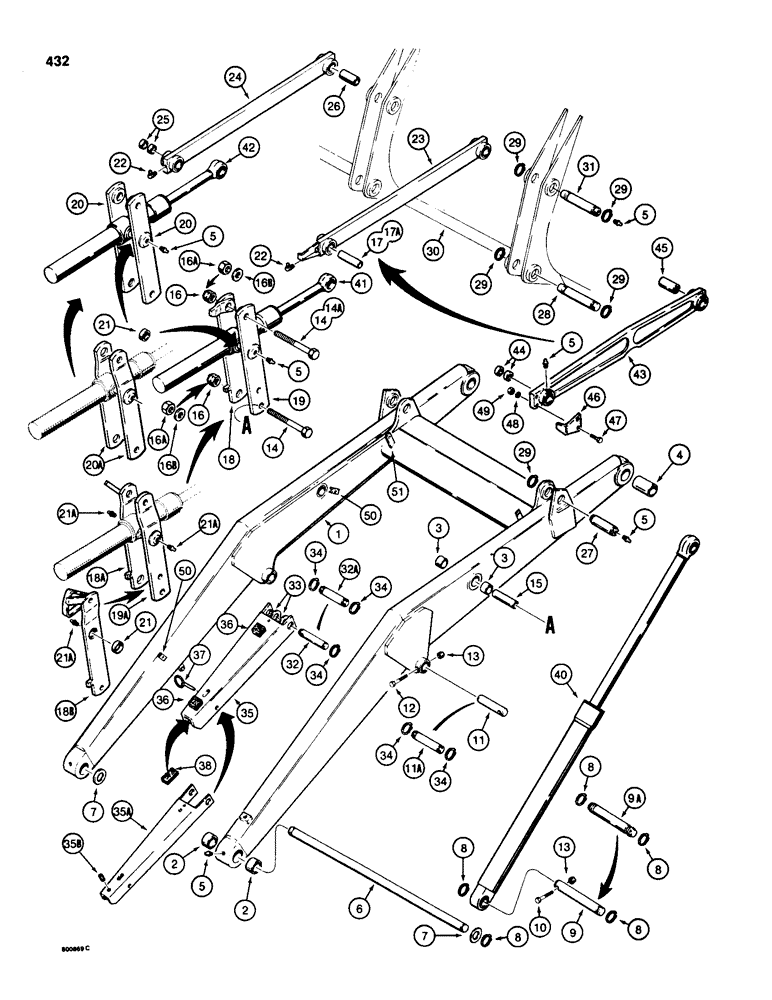

Запчасти Case 580SD (432) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D90960

ARM

LOADER FRAME - lift, Includes: Ref. 2 - 4

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- loader frame pivot

4шт.

3

D37763

BUSHING

- bucket cylinder link pivot

4шт.

4

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- bucket mounting

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

8-12шт.

6

D129819

SHAFT

- pivot

1шт.

7

D62194

WASHER

- flat

1шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4-8шт.

9

D62193

PIN

- lift cylinder pivot, uses Refs. 10 and 13, if used

2шт.

9a

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - lift cylinder pivot, uses Ref. 8 only, if used

2шт.

10

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

If used Hex, 3/8"-16 x 3 1/4", G5

2шт.

11

D67357

PIN

- lift cylinder to frame, right-hand, if used

1шт.

11a

D44881

PIN,38.1mm OD x 136.4mm L

- lift cylinder to frame, right-hand, if used

1шт.

12

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

If used Hex, 3/8"-16 x 2 3/4", G5

2шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated, if used

2-4шт.

14

113-929

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

- hex head, 1" - 8 NC x 6-1/2", plated

2-4шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

14a

113-927

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

- hex head, 1" - 8 NC x 5-1/2", plated, used at top of offset links only

2шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

15

D31219

BUSHING,26.67mm ID x 38.08mm OD x 101.6mm L

SPACER - bushing

2шт.

16

131-698

LOCK NUT,1"-8, GB

NUT - hex, self-locking, 1" - 8 NC, plated, if used

4шт.

16a

129-110

NUT,1"-8, G5

If used 1"-8, G5

4шт.

16b

195-553

WASHER,1", SAE

- flat, 1", plated, if used

4шт.

17

D45904

BUSHING,26.67mm ID x 38.07mm OD x 99.21mm L

SPACER - bushing, used with straight links only

2шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

17a

D90422

BUSHING

SPACER - bushing, used with offset links only

2шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

18

D72287

LINK

- bucket cylinder, inner, right-hand, straight

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

18a

D124047

LINK

- bucket cylinder, inner, right-hand, offset, models without clam bucket, see Ref. 18B

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

18b

D124046

LINK

- bucket cylinder, inner, right-hand, models with clam bucket

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

19

D44996

DRAG LINK

LINK - bucket cylinder, outer, right-hand, straight, has extra hole

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

19a

D124045

LINK

- bucket cylinder, outer, right-hand, offset, with extra hole for antirollback rod

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

20

NSS

NOT SOLD SEPARAT

LINK - bucket cylinder, inner and outer, left-hand, straight, order Ref. 19 for service

2шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

20a

NSS

NOT SOLD SEPARAT

LINK - bucket cylinder, left-hand, offset, order Ref. 19A for service, Includes: Ref. 21 and 21A

2шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

21

D31512

BUSHING,47.75mm ID x 57.15mm OD x 19.05mm L

- link, one each in all links listed above

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

21a

219-86

LUBE NIPPLE,1/8" NPTF

GREASE FITTING - straight, 1/8", self-tapping, one per each D124047 and D124045 link, used in production, may be replaced for service with 219-1, Ref. 5 above

1шт.

Straight links, Refs. 18, 19 and 20 were used before tractor PIN 9054592 and on PIN 9058518 through 9058726. Offset links, Refs. 18A, 18B, 19A, and 20A are used on tractor Pin 9054592 and after, except for PIN 9058518 through 9058726.

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Used with Refs. 23 and 24 90º, 1/8" NPT x .84" lg

2шт.

23

D30945

DRAG LINK

LINK - bucket, right-hand, welded assembly, if used, see Ref. 43

1шт.

24

D30947

SUN VISOR

LINK - bucket, left-hand, welded assembly, if used, see Ref. 43, Inlcudes: Ref. 25 and 26

1шт.

25

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at link

2шт.

26

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- at bucket

1шт.

27

D89321

PIN

- bucket cylinder mounting

2шт.

28

D126717

PIN,38.1mm OD x 179.83mm L

- bucket mounting, lower

2шт.

28

D126718

PIN,38.1mm OD x 179.83mm L

- bucket mounting, lower - grease able

2шт.

29

D25279

SNAP RING,M35, Int

- retaining

12шт.

30

REF

INSTRUCTION

BUCKET - loader, see Figures 436 and 438 for buckets

1шт.

31

D126718

PIN,38.1mm OD x 179.83mm L

- bucket mounting, upper

2шт.

32

D80739

PIN

- lift cylinder to frame, left-hand, uses Ref. 12 bolt and Ref. 13 nut, plus one snap ring, if used

1шт.

32a

D28649

PIN

- lift cylinder to frame, left-hand, uses two snap rings, if used

1шт.

33

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

34

D25279

SNAP RING,M35, Int

- retaining

2-4шт.

35

D77765

STRUT

- support, loader frame, uses Refs. 36 and 38 only, no longer available, order D121846 strut and (2) D121047 grommet

1шт.

35a

D121846

STRUT

- support, loader frame, uses Refs. 35B only

1шт.

35b

D121047

GROMMET

- rubber, used with Ref. 35A only

2шт.

36

D79692

PAD

- strut, used with Ref. 35 only

2шт.

37

L78801

AXLE PIN

PIN - lock, 1/2" (13 mm) diameter

1шт.

38

D89691

STRIP

PAD - rubber, cylinder rod protection, used with Ref. 35 only

1шт.

39

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surface, not shown

1шт.

40

REF

INSTRUCTION

CYLINDER - loader lift, parts list Figure 390

2шт.

41

G101186

CYLINDER

- loader bucket, right-hand, parts list Figure 392

1шт.

42

G101187

CYLINDER

- loader bucket, left-hand, parts list Figure 392

1шт.

43

D120494

DRAG LINK

LINK - bucket, cast type, if used, see Refs. 23 and 24, Includes: Ref. 44 and 45

2шт.

44

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at link

2шт.

45

D30931

BUSHING,38.33mm ID x 47.63mm OD x 69.85mm L

- at bucket

1шт.

46

D121194

POINTER

- right-hand link, cast type links

1шт.

47

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

48

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

D88417

CAGE ASSY.

CAGE - nut, welded to left-hand lift arm

2шт.

51

D78059

BRACKET

- tube mounting, welded to lift arm

1шт.
