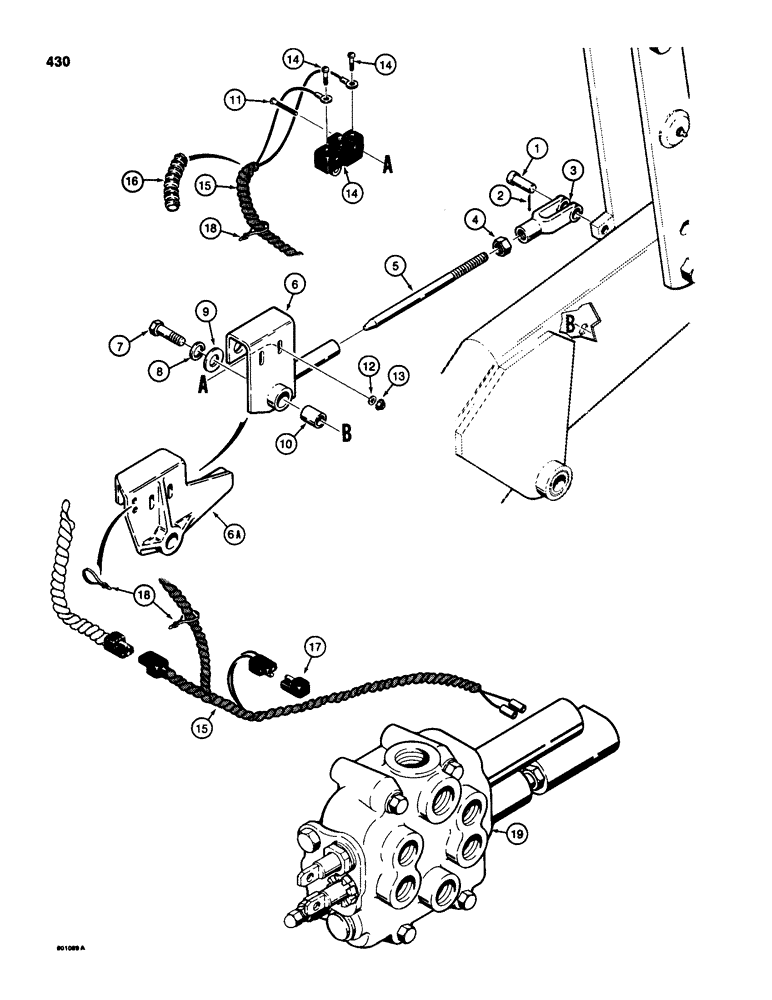

Запчасти Case 580SD (430) - LOADER RETURN-TO-DIG CONTROL (09) - CHASSIS/ATTACHMENTS

1

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

2

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

3

213-41

ADJUSTABLE CLEVIS,3/8"-24

return-to-dig rod, metal, plated, replaces fiberglass clevis on some models 3/8"-24

1шт.

4

129-123

NUT,3/8"-24, G5

If used 3/8"-24, G5

1шт.

4

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated, if used

1шт.

5

D75722

ROD

- return-to-dig

1шт.

6

D75724

BRACKET

- return-to-dig switch mounting, no longer used, order D94534 bracket and (1) L18337 tie strap

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

10

D76175

BUSHING

SPACER - guide

1шт.

11

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- pan head slotted, No. 6 - 32 NC x 1-1/4"

2шт.

12

195-507

WASHER,#6

- flat, No. 6, plated

2шт.

13

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER - No. 6 - 32 NC, plated

2шт.

14

D40921

SWITCH

- return-to-dig, includes terminal screws

1шт.

15

D87986

HARNESS

- return-to-dig

1шт.

16

D88053

SLEEVE

GUARD - wire, no longer used, not required

1шт.

17

L71879

DIODE ELEMENT,400V, 3A

DIODE - valve protecting

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see parts list Figures 310, 312, 326, 328

1шт.
