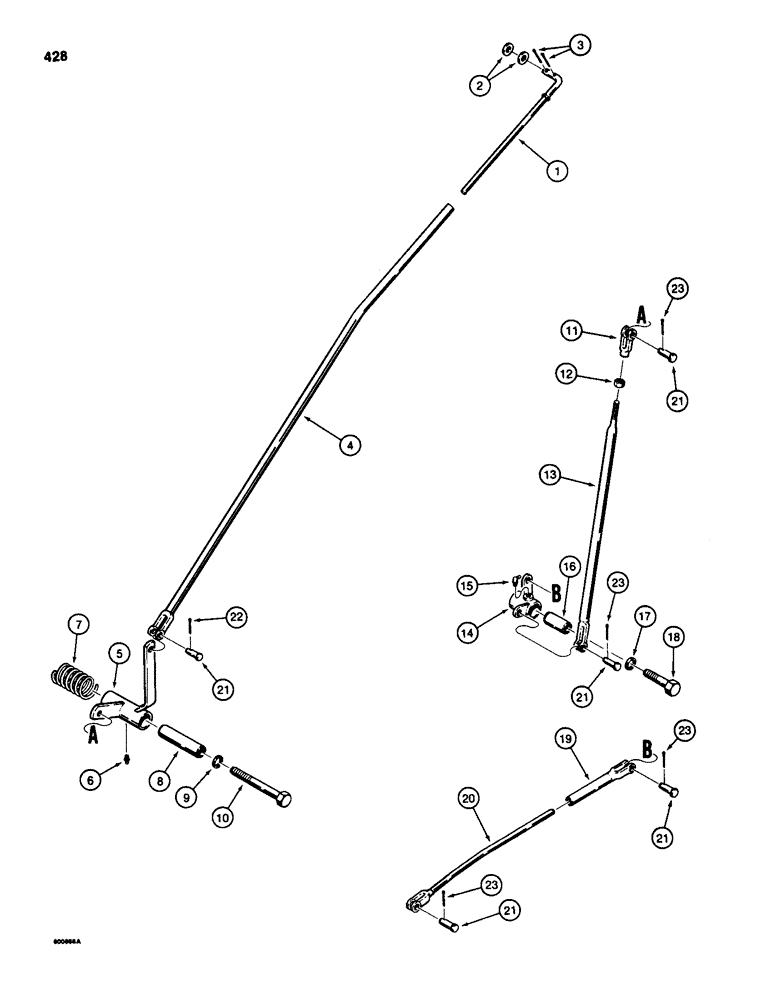

Запчасти Case 580SD (428) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D73911

ROD

- at bucket cylinder link

1шт.

2

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

D89316

GUIDE

- upper rod

1шт.

5

D86677

CRANK LEVER

BELLCRANK - bucket

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

1шт.

7

D72099

SPRING

- return

1шт.

8

D86652

SLEEVE

- lever

1шт.

9

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special, hardened

1шт.

10

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

1шт.

11

213-41

ADJUSTABLE CLEVIS,3/8"-24

vertical rod, metal, plated, replaces fiberglass clevis on some models 3/8"-24

1шт.

12

129-123

NUT,3/8"-24, G5

1шт.

13

D88907

ROD

- vertical, Serial Range: lever-bellcrank

1шт.

14

D86624

CRANK

BELLCRANK - lower

1шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

16

D86653

BUSHING

SLEEVE - bellcrank

1шт.

17

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

1шт.

18

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

19

D86667

GUIDE

- lower rod

1шт.

20

D88905

ROD

- antirollback, lower, used with two and three spool Parker valves and two spool Hydreco valves

1шт.

20

D92174

ROD

- antirollback, lower, used with three spool Hydreco valve

1шт.

21

141-54

CLEVIS PIN,3/8" x 1 1/16"

5шт.

22

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

23

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.
