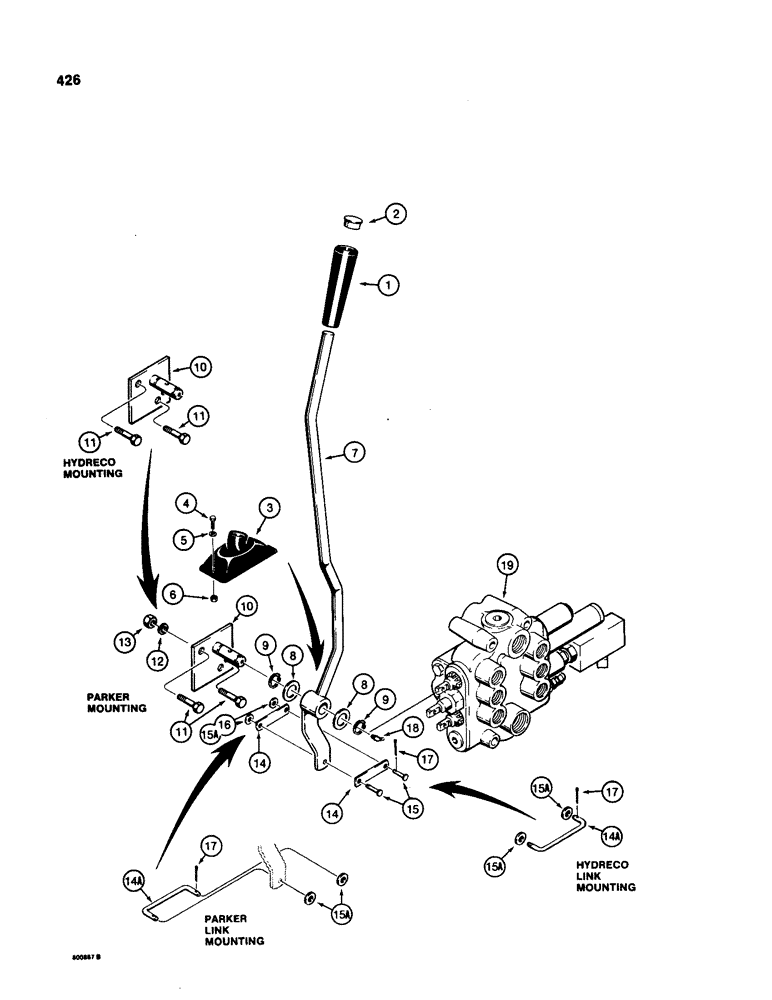

Запчасти Case 580SD (426) - LOADER CONTROLS, CLAM SPOOL (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB - control lever

1шт.

2

353-406

PLUG,Dome, .625" hole, Nylon

- control lever

1шт.

3

D72302

BOOT

- control lever

1шт.

4

163-15

SCREW,Hex, #10 - 24 x 5/8"

MACHINE SCREW - hex head, No. 10 - 24 NC x 5/8", plated

2шт.

5

195-513

WASHER,#10

- flat, No. 10, plated

2шт.

6

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER - No. 10 - 24 NC, plated

2шт.

7

D89889

LEVER

CONTROL LEVER - loader clam

1шт.

8

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spacer

2шт.

9

D95097

RING, SNAP

SNAP RING - control lever retaining

2шт.

10

D92134

BRACKET

- see Figure 424 for control valve mounting plate and related parts

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 3/4", plated

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

D64747

STRAP

LINK - control lever to spool, bar type, if used

2шт.

14a

D122541

LINK

- control lever to spool, rod type, if used

1шт.

15

141-53

CLEVIS PIN,5/16" x .940"

plated, links, used with item 14 5/16" x .940"

2шт.

15a

195-102

WASHER,1/4"

- flat, , plated, used with Ref. 14A, two used with Parker, four used with Hydreco control valve 1/4"

2-4шт.

16

195-21

WASHER,5/16"

- flat, , Clevis pin, Used with Ref. 14 5/16"

2шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

18

219-38

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.

19

REF

INSTRUCTION

CONTROL VALVE - loader, for correct assembly and components, see parts list Figure 312 or 328, for mounting see Figure 424

1шт.
