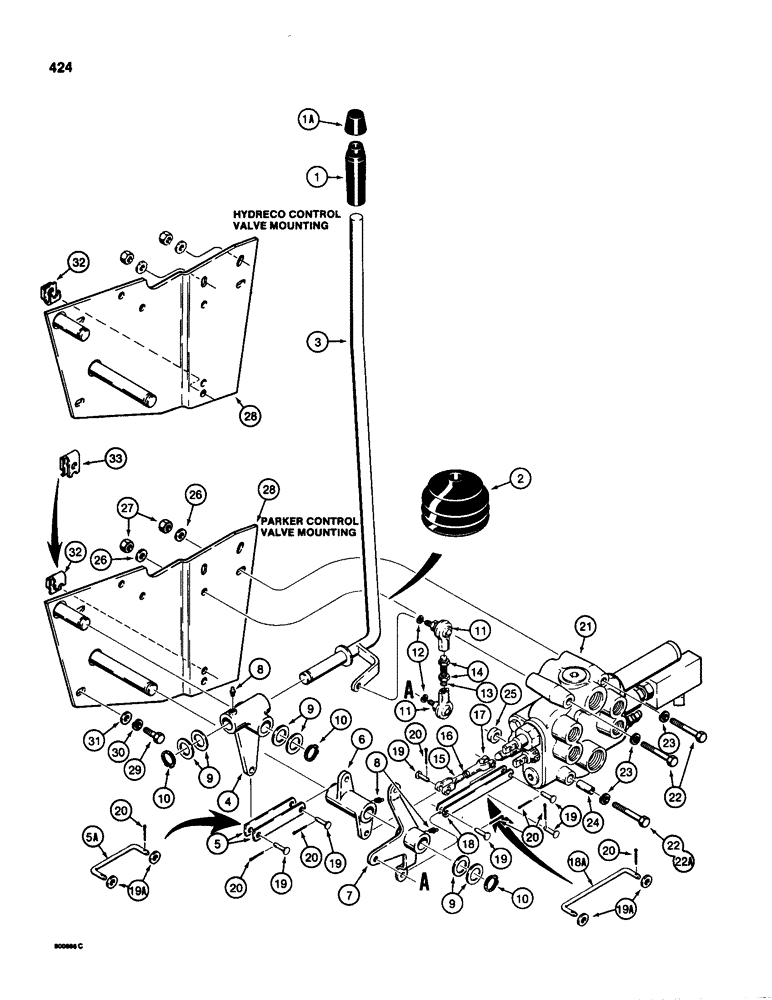

Запчасти Case 580SD (424) - LOADER CONTROLS, LIFT AND BUCKET SPOOLS (09) - CHASSIS/ATTACHMENTS

1

D91439

TUBE

KNOB - control lever, see Figure 112 for clutch cutout switch and wire

1шт.

1a

D125880

BOOT

COVER - switch, see Figure 112 for switch and cover

1шт.

2

D86664

BOOT

- control lever

1шт.

3

D86502

LEVER

CONTROL LEVER - loader lift and bucket

1шт.

4

D86520

LEVER

- pivot, loader lift

1шт.

5

D64746

LINK

- lever to bellcrank, bar type, if used

2шт.

5a

D121193

LINK

- lever to bellcrank, rod type, if used

1шт.

6

D86484

CRANK

BELLCRANK - loader lift

1шт.

7

D86491

CRANK

BELLCRANK - loader bucket

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat, spacer

1шт.

10

D95097

RING, SNAP

SNAP RING - retaining

3шт.

11

D64925

JOINT

BALL JOINT - bucket control

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

D86680

ROD

- threaded

1шт.

14

129-123

NUT,3/8"-24, G5

2шт.

15

D93270

CLEVIS

- male, loader lift

1шт.

16

129-122

NUT,5/16"-24, G5

1шт.

17

H44198

YOKE

CLEVIS - female, metal, plated, replaces fiberglass clevis on some models

1шт.

18

D86508

LINK

- bucket spool, bar type, if used

2шт.

18a

D121838

LINK

- bucket spool, rod type, if used

1шт.

19

D88430

PIN,7.9mm OD x 26.47mm L

CLEVIS PIN - lift and bucket control

2-6шт.

19a

195-102

WASHER,1/4"

- flat, , plated, used with Refs. 5A and 18A 1/4"

4шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

21

REF

INSTRUCTION

CONTROL VALVE - loader, Parker, for correct assembly and components, see Figures 311, 313, 327, or 329

1шт.

22

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Used with Parker two or three spool control valve Hex, 3/8"-16 x 4", G5

2-3шт.

22

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

Used with Hydreco control valves only Hex, 3/8"-16 x 4 1/2", G5

2-3шт.

22a

113-253

BOLT,Hex, 3/8" - 16 x 5", Gr 5

Lower mounting hole only on some Hydreco valves Hex, 3/8"-16 x 5", G5

1шт.

22a

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

Lower mounting hole only on some Parker valves Hex, 3/8"-16 x 4 1/2", G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

D82546

SPACER - long, used with Hydreco control valve only

3шт.

25

D43408

SPACER

- short, used with Hydreco control valve only

3шт.

26

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2-3шт.

28

D92132

PLATE

- valve mounting

1шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

31

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

32

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

1шт.

33

D122307

NUT

NUT - U-type, 3/8" - 16 NC, if used

1шт.
