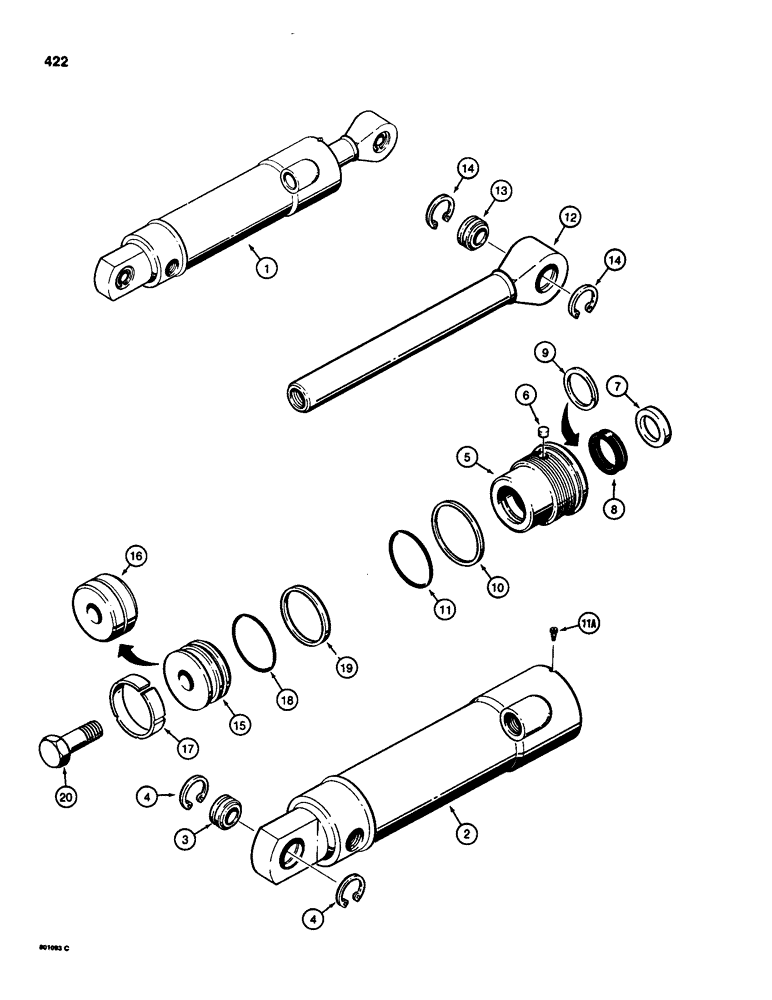

Запчасти Case 580SD (422) - G33128 THREE-POINT HITCH PITCH CYLINDER (08) - HYDRAULICS

1

G33128

JACK BODY

CYLINDER ASSEMBLY - pitch, 2-1/2" (64 mm) ID x 7" (178 mm) stroke, see footnote, Includes: Ref. 2 - 20

1шт.

2

G33129

TUBE,14.69" L

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- tube, self-aligning

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

G104915

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G109476

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G109476

1шт.

8

G100775

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109476

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G109476

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109476

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G33134

ROD

ASSEMBLY - piston, 1-1/4" (32 mm) diameter

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

- piston rod, self-aligning

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, bushing

2шт.

15

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

- cylinder, double groove, uses G100714 wear ring, no longer available, order G104098 piston

1шт.

16

G104098

PISTON

- cylinder, single groove, replaces G33138 piston

1шт.

17

G100714

RING

- wear, used with G33138 piston only

1шт.

Part of Seal Kit P/N G109476

1шт.

18

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N G109476

1шт.

19

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL - piston

1шт.

Part of Seal Kit P/N G109476

1шт.

20

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G109476

GASKET KIT

KIT - seal, Includes: Ref. 7, 8 -D36968, 9-11 and 17-19, plus a wear ring not used in this cylinder

1шт.
