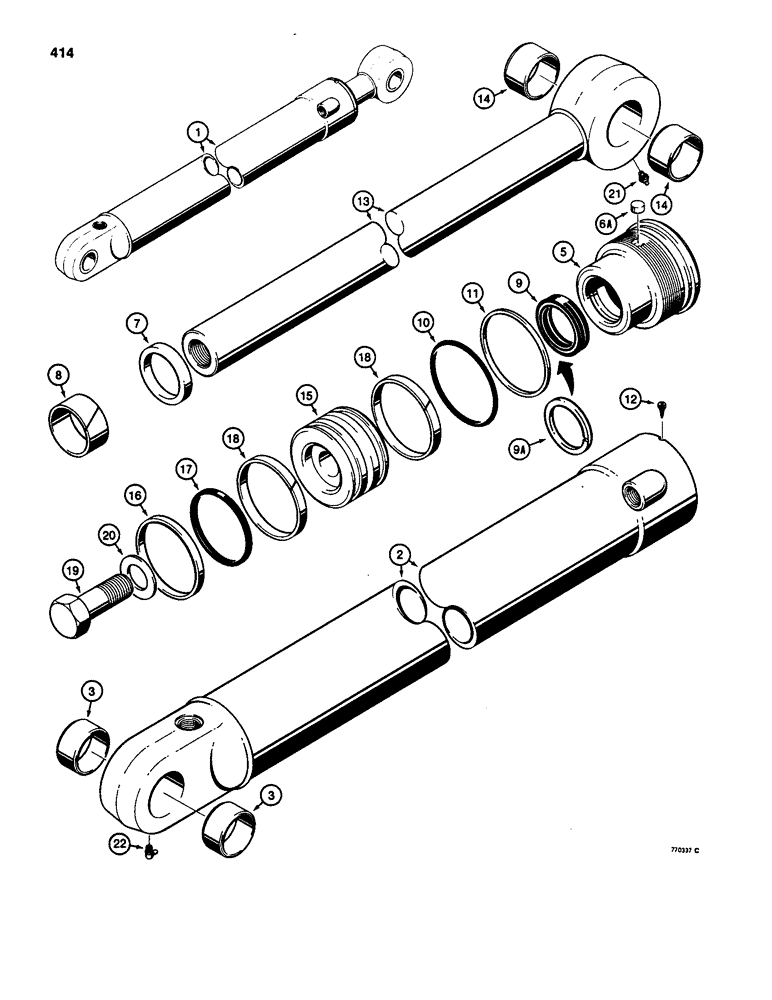

Запчасти Case 580SD (414) - G103350 AND G109434 BACKHOE BUCKET CYLINDER, USED ON SUPER D MODELS (08) - HYDRAULICS

1

G103350

CYLINDER

ASSEMBLY - bucket, 3-1/2" (89 mm) ID x 30-9/16" (776 mm) stroke, see footnote, with bushing in cylinder tube eye, no longer available, order G109434 cylinder, Includes: Ref. 2 - 22ø

1шт.

1

G109434

CYLINDER

ASSEMBLY - bucket, 3-1/2" (89 mm) ID x 30-9/16" (776 mm) stroke, see footnote, without bushing in cylinder tube eye, Inlcudes: Ref. 2- 22

1шт.

2

G109097

TUBE

ASSEMBLY - G103350 cylinder, with bushing, no longer available, order G109435 tube, Includes: Ref. 3

1шт.

2

G109435

TUBE,88.67mm Bore Dia

ASSEMBLY - G109434 cylinder, without bushing, not shown, Inlcudes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- G109097 tube only

2шт.

4

RESERVED

1шт.

G104268

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

RESERVED

1шт.

6a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G109504

1шт.

8

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G109504

1шт.

9

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109504

1шт.

9

G100780

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9a

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109504

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G109504

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G109504

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

13

G103351

ROD

ASSEMBLY - piston, 2-1/2" (64 mm) diameter, Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

15

G103357

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G109504

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G109504

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit P/N G109504

1шт.

19

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

20

G105980

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109504

KIT

- seal, Includes: Ref. 7-9 -G109228, 9A, 10, 11 and 16-18

1шт.
