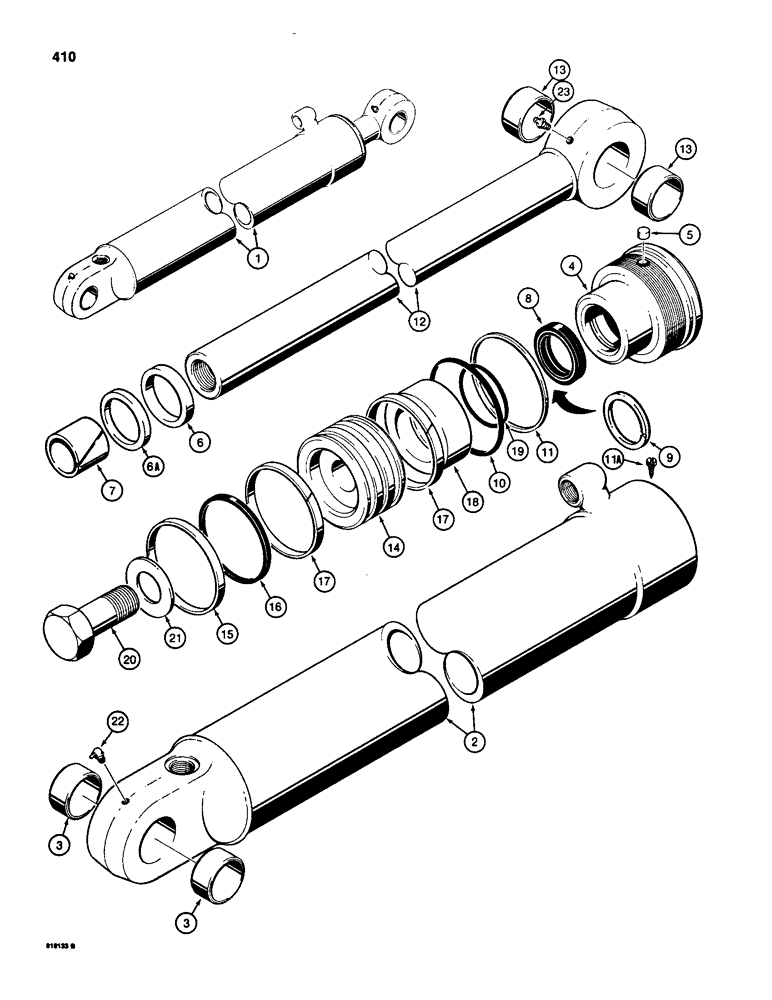

Запчасти Case 580SD (410) - G104691 BACKHOE DIPPER CYLINDER, USED ON SUPER D MODELS (08) - HYDRAULICS

1

G104691

CYLINDER ASSY.

CYLINDER ASSEMBLY - dipper, 4" (102 mm) ID x 33-7/8" (860 mm) stroke, Includes: Ref. 2 - 23

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G107986

TUBE,101.37mm Bore Dia

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G104292

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of P/N G109424 Seal Kit

1шт.

6a

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing, if used

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of P/N G109424 Seal Kit

1шт.

8

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of P/N G109424 Seal Kit

1шт.

8

G100778

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of P/N G109424 Seal Kit

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of P/N G109424 Seal Kit

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of P/N G109424 Seal Kit

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G105055

ROD

ASSEMBLY - piston, 2-1/2" (64 mm) diameter, Includes: Ref. 13

1шт.

13

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

14

G104688

PISTON

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of P/N G109424 Seal Kit

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of P/N G109424 Seal Kit

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of P/N G109424 Seal Kit

1шт.

18

G105085

SPACER - stroke limiter

1шт.

19

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- spacer to piston rod

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

21

G104990

WASHER

- hardened

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G109424

GASKET KIT

KIT seal, Includes Ref. 6 - 11 except 6A and G100778, and 15 - 17

1шт.
