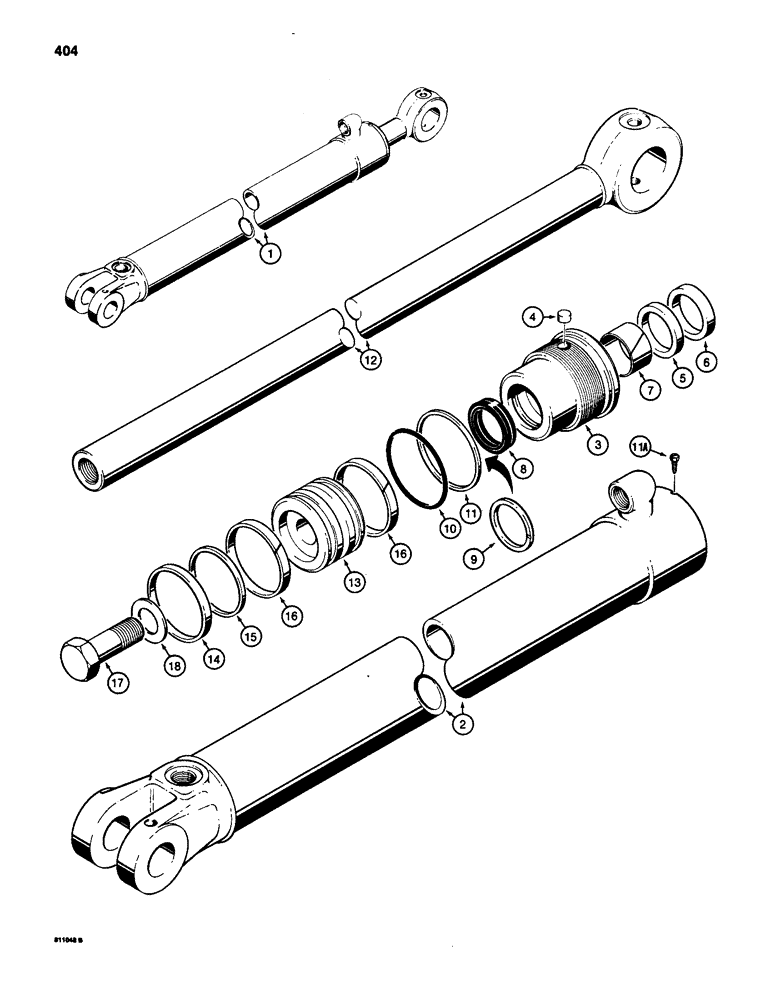

Запчасти Case 580SD (404) - G105400 AND G106168 BACKHOE BOOM CYLINDERS (08) - HYDRAULICS

1

G105400

CYLINDER

ASSEMBLY - boom, 3-1/4" (83 mm) ID x 41-27/32" (1063 mm) stroke, see footnote, no longer used, for service order G106168 cylinder Figure 408, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

G106168R

REMAN-HYD CYLINDER

580D CASE CONSTRUCTION KING LOADER BACKHOE, 580SD CASE SUPER-D CONSTRUCTION KING LOADER BACKHOE, Both ASSEMBLY, boom, Reman for New PN G105400

1шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

1шт.

1

G106168

CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke

ASSEMBLY - boom, 3-1/4" (83 mm) ID x 42-27/32" (1063 mm), stroke, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

G106168R

REMAN-HYD CYLINDER

580D CASE CONSTRUCTION KING LOADER BACKHOE, 580SD CASE SUPER-D CONSTRUCTION KING LOADER BACKHOE, both ASSEMBLY, boom

1шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

1шт.

2

G105401

TUBE,3.25" DIA x 51.49" L

- G105400 cylinder

1шт.

2

G106169

TUBE,3.25" DIA x 51.49" L

- G106168 cylinder

1шт.

G106164

GLAND

ASSEMBLY - G105400 cylinder, Includes: Ref. 3 - 11

1шт.

G107671

GLAND

ASSEMBLY - G106168 cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of P/N G109417 Seal Kit

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of P/N G109417 Seal Kit

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of P/N G109417 Seal Kit

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of P/N G109417 Seal Kit

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Part of P/N G109417 Seal Kit

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of P/N G109417 Seal Kit

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

12

G33885

ROD

- piston, 1-3/4" (44 mm) diameter

1шт.

13

G100642

PISTON

- cylinder

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of P/N G109417 Seal Kit

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

BACKUP RING - piston seal

1шт.

Part of P/N G109417 Seal Kit

1шт.

16

S109445

RING,82.55mm OD, Ext

- wear, piston

2шт.

Part of P/N G109417 Seal Kit

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G109417

GASKET KIT

KIT seal, includes Ref.6 - 11 except G100777 and 14 - 16

1шт.
