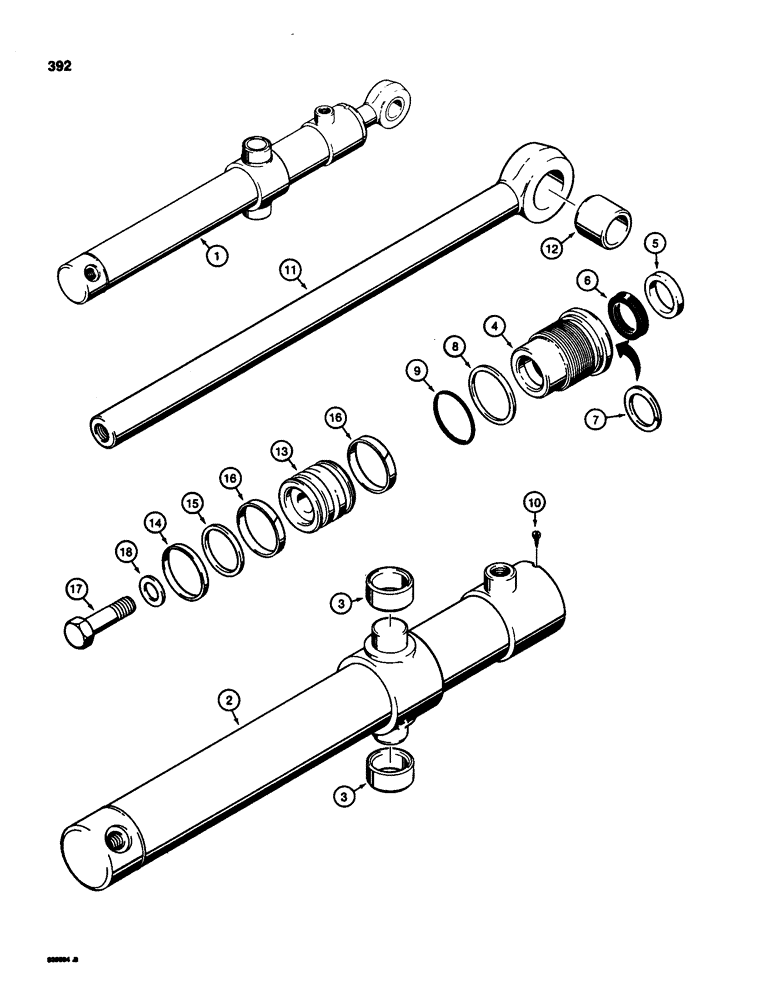

Запчасти Case 580SD (392) - G101186 AND G101187 LOADER BUCKET CYLINDERS (08) - HYDRAULICS

1

G101186

CYLINDER

ASSEMBLY - bucket, right-hand, 2-1/2" (64 mm) ID x 20" (508 mm) stroke, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

G101187

CYLINDER

ASSEMBLY - bucket, left-hand, 2-1/2" (64 mm) ID x 20" (508 mm) stroke, Includes: Ref. 2 - 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

D31098

TUBE

ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

2

D31099

TUBE

ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

3

G103411

BUSHING,38mm ID x 47.4mm OD x 20.57mm L

- tube trunnion, interchangeable with D31511 bushing

2шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used, not shown

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of P/N G109456 Seal Kit

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of P/N G109456 Seal Kit

1шт.

6

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

7

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of P/N G109456 Seal Kit

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of P/N G109456 Seal Kit

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of P/N G109456 Seal Kit

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G33422

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- rod

1шт.

13

G100706

PISTON

- cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of P/N G109456 Seal Kit

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of P/N G109456 Seal Kit

1шт.

16

G100714

RING

- wear, piston

2шт.

Part of P/N G109456 Seal Kit

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G109456

GASKET KIT

KIT seal, Includes Ref. 5, 6, 7 - 9 and 14 - 16

1шт.
