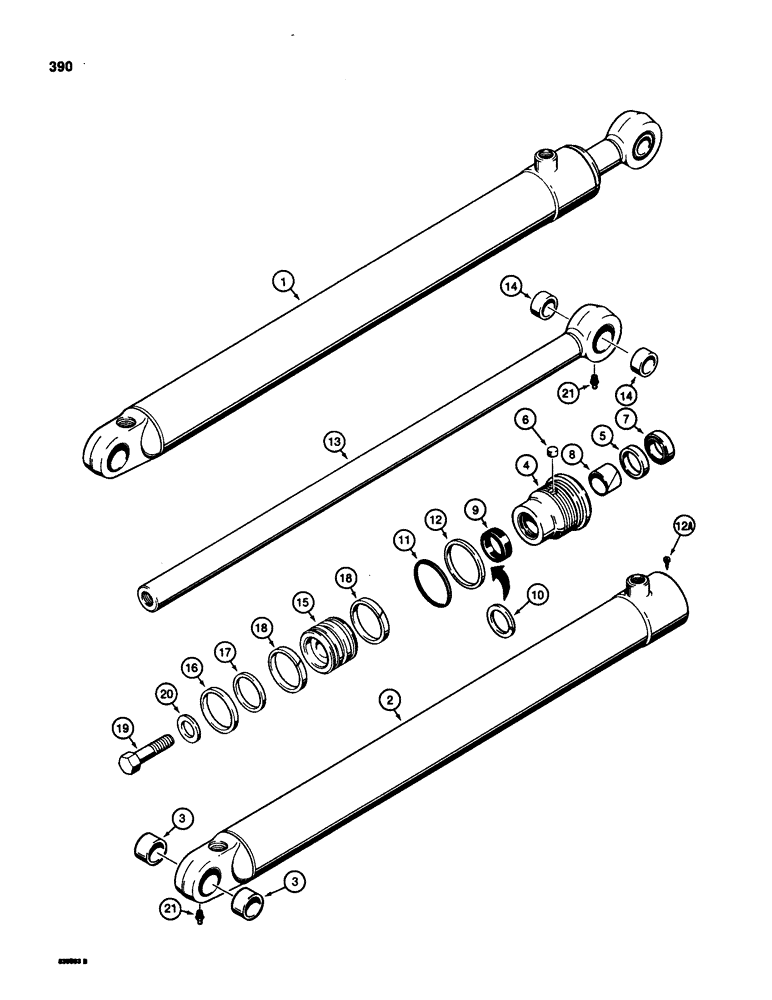

Запчасти Case 580SD (390) - G101184 AND G105756 LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G101184

CYLINDER

ASSEMBLY - lift, right-hand and left-hand, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, does not use bushings in tube, see footnote, no longer used, for service order G105756 cylinder, Includes: Ref. 2 - 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

G105756

CYLINDER

ASSEMBLY - lift, right-hand and left-hand, 3" (76 mm) ID x 31-1/2" (800 mm) stroke, includes bushings in cylinder tube, Includes: Ref. 2 - 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G101514

CYLINDER

TUBE ASSEMBLY - does not use bushings, Includes: Ref. 3

1шт.

2

G105757

TUBE,3" DIA x 39.68" L

ASSEMBLY - includes bushings, Includes: Ref. 3

1шт.

3

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

- G105757 tube only

2шт.

G104240

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G34600

RING

RETAINING RING - bushing

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of P/N G109460 Seal Kit

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of P/N G109460 Seal Kit

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - with O-ring, piston rod, wide

1шт.

Part of P/N G109460 Seal Kit

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

10

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of P/N G109460 Seal Kit

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of P/N G109460 Seal Kit

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of P/N G109460 Seal Kit

1шт.

12a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

13

G35332

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 14

1шт.

14

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- piston rod

2шт.

15

G100704

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of P/N G109460 Seal Kit

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of P/N G109460 Seal Kit

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of P/N G109460 Seal Kit

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G109460

GASKET KIT

KIT seal, Includes Ref. 7 - 9, 10 - 12 and 16 - 18

1шт.
