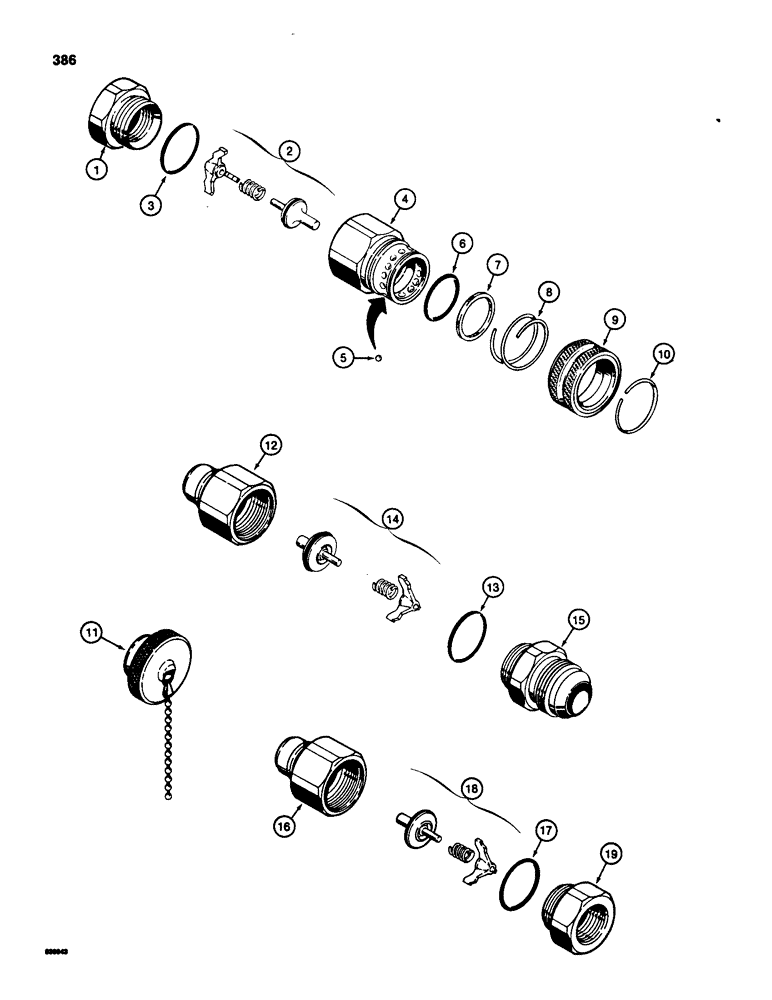

Запчасти Case 580SD (386) - HYDRAULIC QUICK DISCONNECT COUPLINGS (08) - HYDRAULICS

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, used with backhoe and three-point hitch, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

- end, coupling

1шт.

2

D53915

VALVE

ASSEMBLY - coupling

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling

1шт.

4

D53916

BODY

- coupling

1шт.

5

211-256

BALL

- steel, 7/32" diameter

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

O-RING - body, coupling

1шт.

7

D54276

RING

BACKUP RING - O-ring

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining

1шт.

10

D31981

RING

- retaining

1шт.

11

D39924

PLUG

- dust, for female coupling

1шт.

D90260

FITTING

QUICK DISCONNECT - coupling, male, used with backhoe, D90260 male coupling, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - coupling, male, D90260 male coupling

1шт.

N6906

SET

KIT - valve and seal, coupling, D90260 male coupling, Includes: Ref. 13 and 14

1шт.

13

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling, D90260 male coupling

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - coupling, D90260 male coupling

1шт.

15

NSS

NOT SOLD SEPARAT

FITTING - end, coupling, D90260 male coupling

1шт.

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, used with three-point hitch, D52694 male coupling, Includes: Ref. 16 - 19

1шт.

16

D31971

BODY

- coupling, D52694 male coupling

1шт.

17

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body, coupling, D52694 male coupling

1шт.

18

D53915

VALVE

ASSEMBLY - coupling, D52694 male coupling

1шт.

19

D31975

FITTING

CONNECTOR - hydraulic coupling, D52694 male coupling

1шт.
