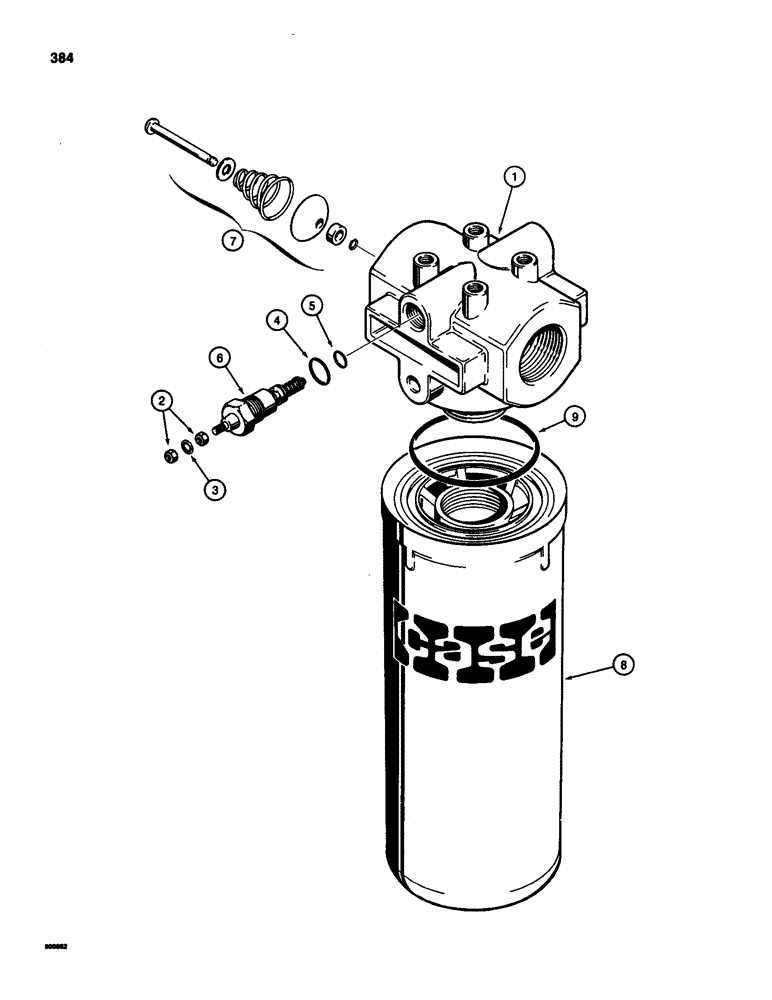

Запчасти Case 580SD (384) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D122362

FILTER

ASSEMBLY - hydraulic oil, interchangeable with D89908 filter, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

RESTRICTION INDICATOR ASSEMBLY - electric, Includes: Ref. 2 - 6

1шт.

N6941

KIT

- restriction indicator repair, Includes: Ref. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner

1шт.

6

NSS

NOT SOLD SEPARAT

RESTRICTION INDICATOR - electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

D94236

FILTER, ELEMENT

ELEMENT ASSEMBLY - filter, interchangeable with D89909 element, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- filter to head

1шт.
