Запчасти Case 580SD (380) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT, AND IMPLEMENT SECTIONS (08) - HYDRAULICS

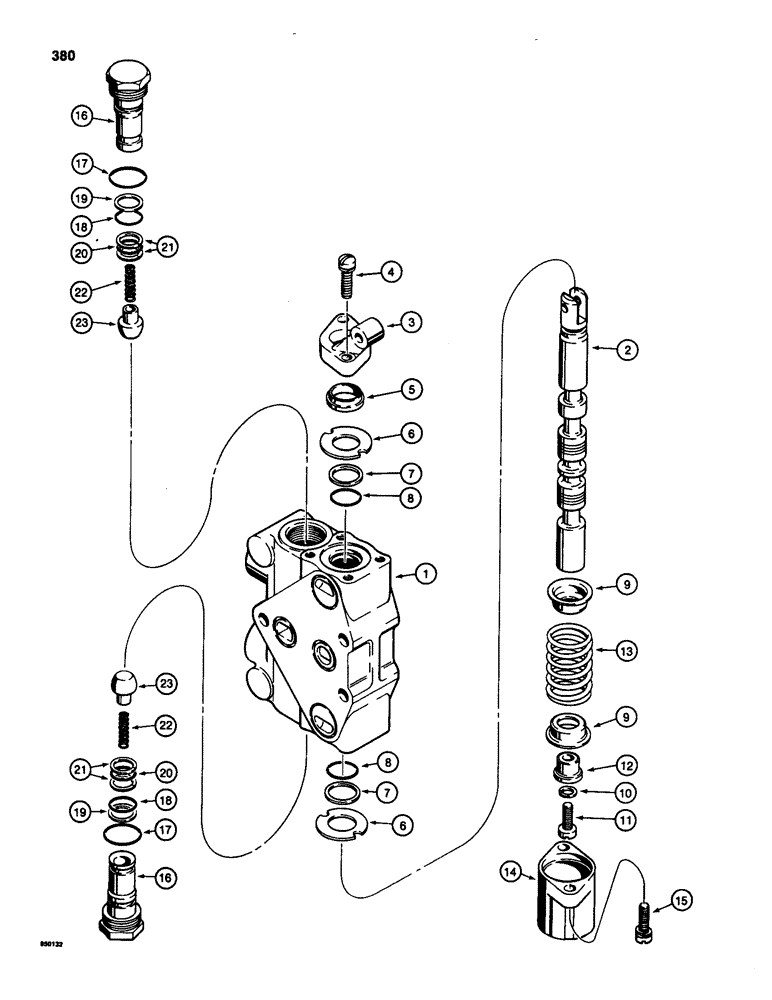

Схема запчастей Case 580SD - (380) - THREE-POINT HITCH CONTROL VALVE, PITCH, TILT, AND IMPLEMENT SECTIONS (08) - HYDRAULICS
13
19
23
9
22
1
17
4
20
6
14
21
5
8
11
9
8
18
16
15
12
19
20
22
21
3
2
16
23
7
17
18
10
6
7

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CONTROL VALVE WITH FLOW CONTROL REGULATOR KNOB

1шт.

N8691

KNIFE SECTION

SECTION - hitch pitch, tilt, and implement, D124205 control valve, Includes: Ref. 1 - 23

3шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - slotted Fillister head, 1/4" - 20 NC x 7/8", plated

2шт.

5

N7029

SCRAPER

WIPER - spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

2шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - O-ring

2шт.

8

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

2шт.

9

H267591

SPRING SEAT

SEAT - centering spring

2шт.

10

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

169-160

SCREW,Sl Fil Hd, 5/16" - 18 x 3/4"

- slotted Fillister head, 5/16" - 18 NC x 3/4", plated

1шт.

12

H267609

REAR FENDER

COLLAR - spool

1шт.

13

D87306

SPRING

CENTERING SPRING - spool

1шт.

14

H267583

FITTING

CAP - valve spool

1шт.

15

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - slotted Fillister head, 1/4" - 20 NC x 7/8", plated

2шт.

D87307

VALVE

LOAD CHECK VALVE - valve section, Inlcudes: Ref. 17 - 23

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

18

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

19

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

20

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

21

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

22

H268730

SPRING

- poppet

1шт.

23

D28576

VALVE POPPET

POPPET - load check valve

1шт.
