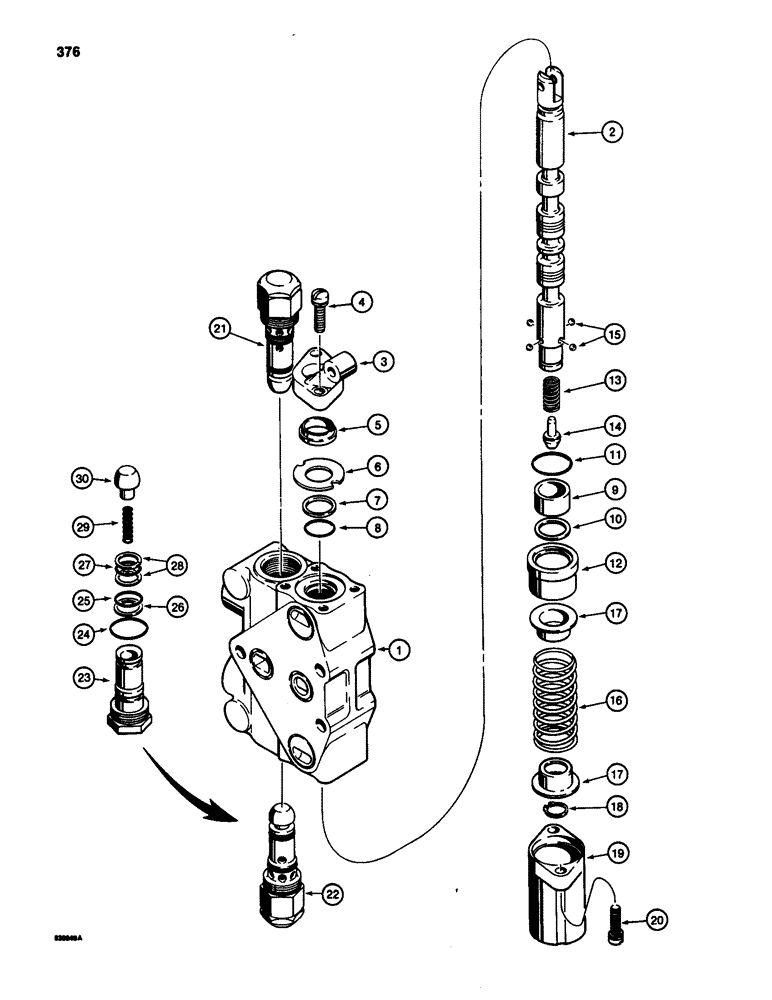

Запчасти Case 580SD (376) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION WITH TWO CIRCUIT RELIEF VALVES (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE WITH FLOW CONTROL REGULATOR KNOB

1шт.

N8692

KNIFE SECTION

SECTION - hitch lift, contains two circuit relief valves, D124204 and D124205 control valves, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

N7114

BRACKET

RETAINER AND BRACKET - section

1шт.

4

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - slotted Fillister head, 1/4" - 20 NC x 7/8", plated

2шт.

5

N7029

SCRAPER

WIPER - spool

1шт.

6

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

1шт.

7

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool seal O-ring

1шт.

8

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

1шт.

9

N7038

SLEEVE

- spool

1шт.

10

N7036

SEALING RING

SEAL - ring, spool seal

1шт.

11

D39717

O-RING,1.051" ID x 1.191" OD

- detent sleeve to section housing

1шт.

12

N7034

SLEEVE VALVE

SLEEVE - detent

1шт.

13

N7037

SPRING

- detent

1шт.

14

N7035

VALVE POPPET

PLUNGER - ball retaining

1шт.

15

211-256

BALL

- steel

4шт.

16

N7032

SPRING

CENTERING SPRING - spool

1шт.

17

N7033

SEAT

- centering spring

2шт.

18

NLS

NO LONGER SERVICED

Ring, Snap, #62, Ext, seat

1шт.

19

N7031

COVER

CAP - valve spool

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCKWASHER - slotted Fillister head, 1/4" - 20 NC x 7/8", plated

2шт.

21

H593228

VALVE

CIRCUIT RELIEF VALVE - upper port, parts list Figure 382

1шт.

22

D122552

VALVE, PRESSURE RELI

CIRCUIT RELIEF VALVE - lower port, parts list Figure 382

1шт.

D87307

VALVE

LOAD CHECK VALVE - valve section, if used, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

25

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

26

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

27

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

28

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

29

H268730

SPRING

- poppet

1шт.

30

D28576

VALVE POPPET

POPPET - load check valve

1шт.
