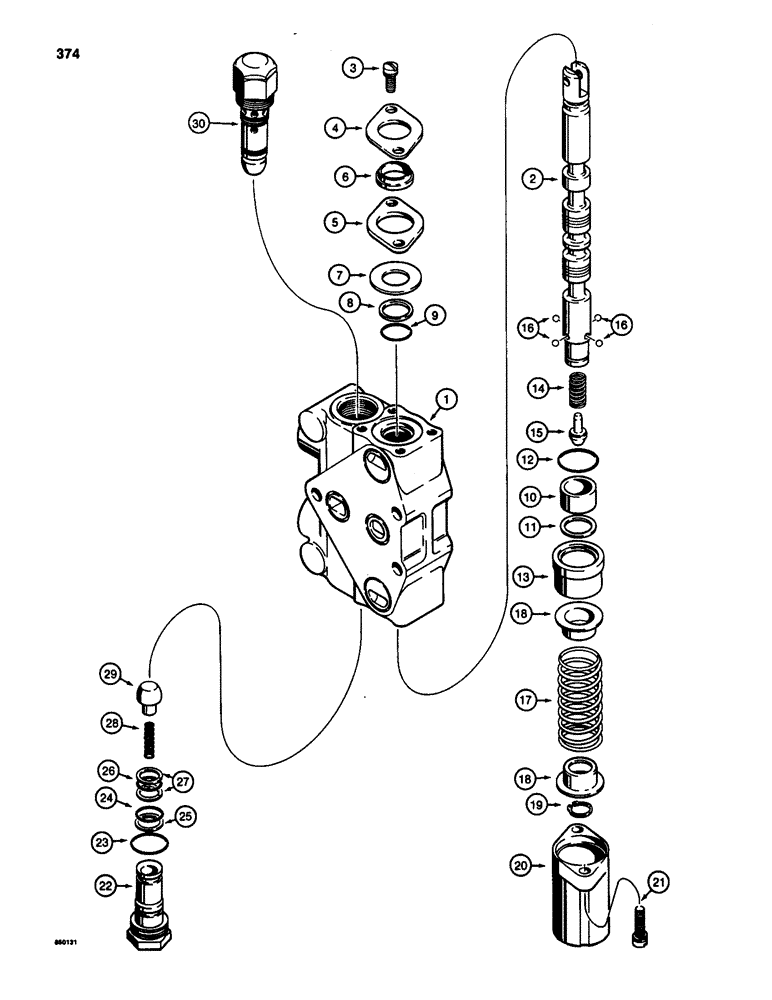

Запчасти Case 580SD (374) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE WITHOUT FLOW CONTROL REGULATOR KNOB

1шт.

N7027

LARGE PLATE

SECTION - hitch lift, D93603 and D93604 control valves, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

AND LOCK WASHER - slotted Fillister head, 1/4" - 20 NC x 5/8", plated

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.

6

N7029

SCRAPER

WIPER - spool

1шт.

7

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - seal

1шт.

8

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

1шт.

9

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

- spool seal

1шт.

10

N7038

SLEEVE

- spool

1шт.

11

N7036

SEALING RING

SEAL - ring, spool seat

1шт.

12

D39717

O-RING,1.051" ID x 1.191" OD

- detent sleeve to section housing

1шт.

13

N7034

SLEEVE VALVE

SLEEVE - detent

1шт.

14

N7037

SPRING

- detent

1шт.

15

N7035

VALVE POPPET

PLUNGER - ball retaining

1шт.

16

211-256

BALL

-7/32", grade 50, chrome alloy steel

4шт.

17

N7032

SPRING

CENTERING SPRING - spool

1шт.

18

N7033

SEAT

- spring

2шт.

19

103-1162

SNAP RING,#62, Ext

Ring, Snap, , CLAMP - tube, R.H., boom cylinder hydraulics #62, Ext

1шт.

20

N7031

COVER

CAP - valve spool

1шт.

21

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

AND LOCK WASHER - slotted Fillister head, 1/4" - 20 NC x 7/8", plated

2шт.

D87307

VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 22 - 29

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - load check valve

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- outer

1шт.

24

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

25

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

BACKUP RING - center O-ring

1шт.

26

16905

O-RING,0.551" ID x 0.07" Width

O-RING - inner

1шт.

27

D88725

BACK-UP RING

BACKUP RING - inner O-ring

2шт.

28

H268730

SPRING

- poppet

1шт.

29

D28576

VALVE POPPET

POPPET - load check valve

1шт.

30

H593228

VALVE

CIRCUIT RELIEF VALVE - upper port, parts list Figure 382

1шт.
