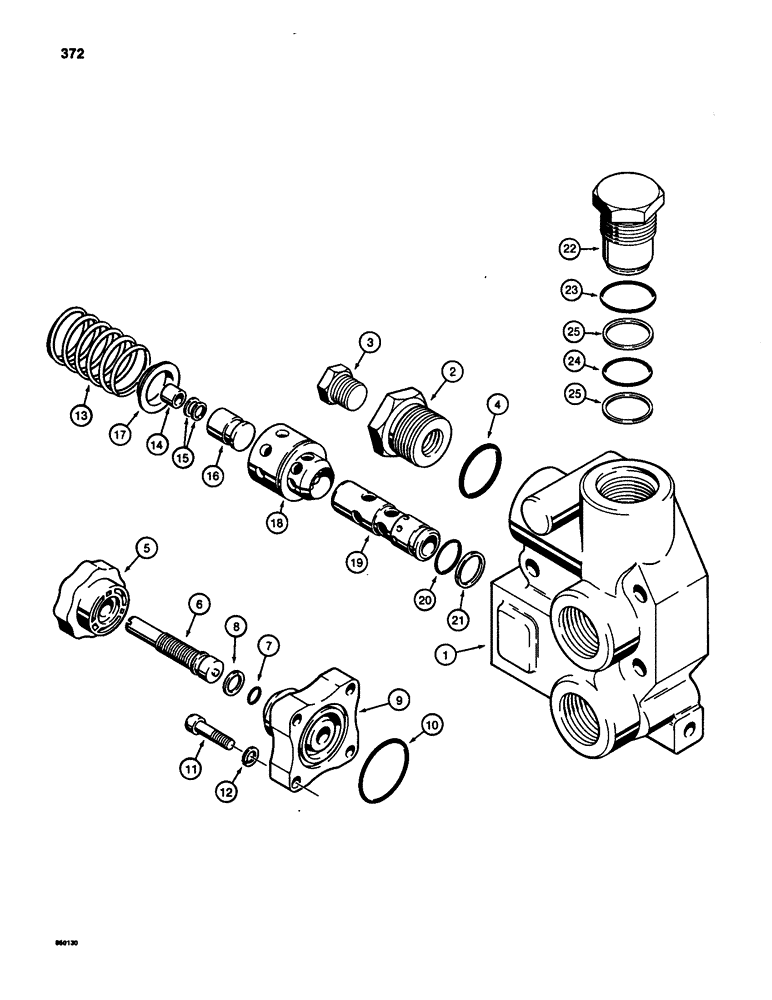

Запчасти Case 580SD (372) - THREE-POINT HITCH CONTROL VALVE, INLET-OUTLET SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
CONTROL VALVE WITH FLOW CONTROL REGULATOR KNOB
1шт.
D122551
VALVE
SECTION - inlet-outlet, D124204 and D124205 control valves, Includes: Ref. 1 - 25
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - inlet-outlet section
1шт.
N7109
PLUG
ASSEMBLY - section port, Includes: Ref. 2 - 4
1шт.
2
NSS
NOT SOLD SEPARAT
PLUG - section port
1шт.
3
221-841
PLUG
- hex socket head, 1/4" NPT
1шт.
4
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug
1шт.
N7111
GOVERNOR
REGULATOR ASSEMBLY - flow control, Includes: Ref. 5 - 12
1шт.
5
D54188
KNOB
- regulator assembly
1шт.
6
NSS
NOT SOLD SEPARAT
SCREW - adjusting
1шт.
7
D54290
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
- adjusting
1шт.
8
C11865
RING
BACKUP RING - O-ring
1шт.
9
NSS
NOT SOLD SEPARAT
COVER - regulator
1шт.
10
A16755
O-RING
- cover
1шт.
11
61-414
HEX SOC SCREW,1/4"-20 x 7/8"
BOLT - hex socket head, 1/4" - 20 NC x 7/8"
4шт.
12
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
4шт.
N7110
CONTROL
ASSEMBLY - flow, Includes: Ref. 13 - 21
1шт.
13
L35302
SPRING
- flow control
1шт.
14
NSS
NOT SOLD SEPARAT
SLEEVE - piston
1шт.
15
NSS
NOT SOLD SEPARAT
SHIM - sleeve
1шт.
16
NSS
NOT SOLD SEPARAT
PISTON - flow control
1шт.
17
L35301
CUPEL
COLLAR - metering sleeve
1шт.
18
NSS
NOT SOLD SEPARAT
SLEEVE - metering
1шт.
19
NSS
NOT SOLD SEPARAT
GUIDE - sleeve, flow control
1шт.
20
D26265
O-RING,1.78mm Thk x 14mm ID, 70 Duro
- guide
1шт.
21
L35297
RING,16.18mm ID x 19.07mm OD x 1.42mm Thk
BACKUP RING - O-ring
1шт.
D87301
PLUG
ASSEMBLY - main relief port, Includes: Ref. 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
PLUG - main relief port
1шт.
23
D39717
O-RING,1.051" ID x 1.191" OD
- plug, large
1шт.
24
D39718
O-RING,0.989" ID x 1.129" OD
- plug, small
1шт.
25
D87303
BACK-UP RING
BACKUP RING - small O-ring
2шт.
Выбрано товаров: 31
