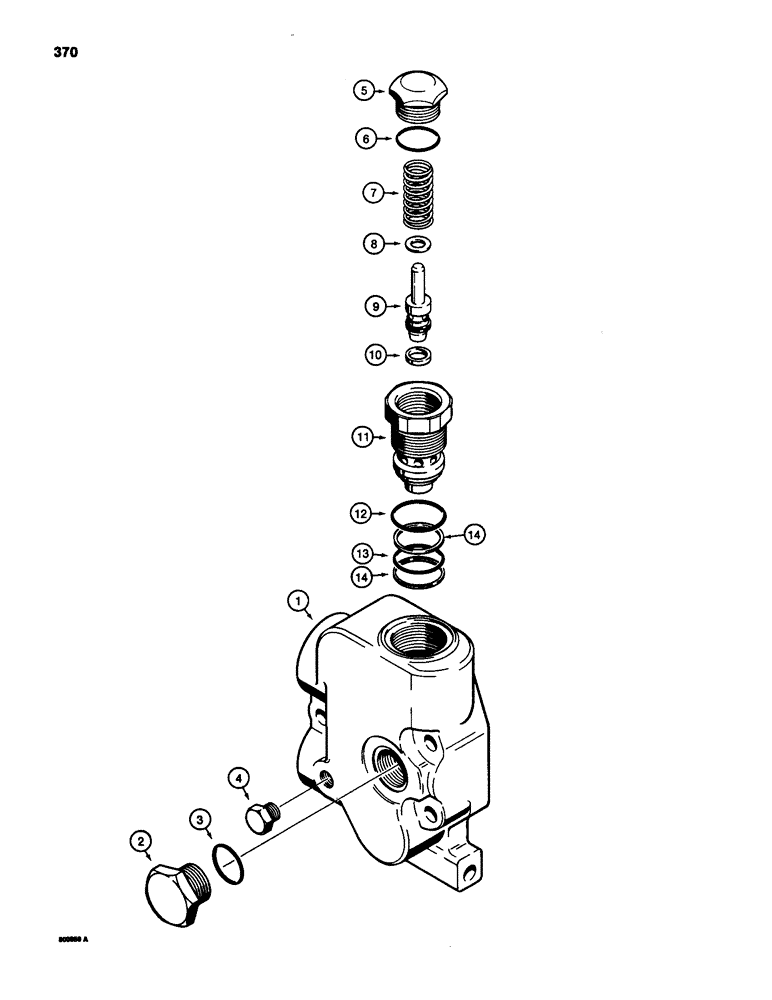

Запчасти Case 580SD (370) - THREE-POINT HITCH CONTROL VALVE, INLET-OUTLET SECTION (08) - HYDRAULICS

REF

INSTRUCTION

CONTROL VALVE WITHOUT FLOW CONTROL REGULATOR KNOB

1шт.

N7025

BACK PLATE

SECTION - inlet-outlet, D93603 and D93604 control valves, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - inlet

1шт.

2

D87304

PLUG

- end ports, Includes: Ref. 3

1-2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

4

221-841

PLUG

- gauge port, 1/4" NPT

1шт.

N7040

VALVE

MAIN RELIEF VALVE - hitch valve, Includes: Ref. 5 - 14

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - main relief valve

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- cap

1шт.

7

D51540

VALVE SPRING

SPRING - main relief valve

1шт.

8

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

8

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

8

D39712

SHIM

- .010" (0.254 mm) thick

1шт.

D66490

VALVE POPPET

PLUNGER ASSEMBLY - main relief, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER - main relief valve

1шт.

10

D39714

RING

SEAL - plunger

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

12

D39717

O-RING,1.051" ID x 1.191" OD

- large

1шт.

13

D39718

O-RING,0.989" ID x 1.129" OD

- small

1шт.

14

D87303

BACK-UP RING

BACKUP RING - used with small O-ring

2шт.
