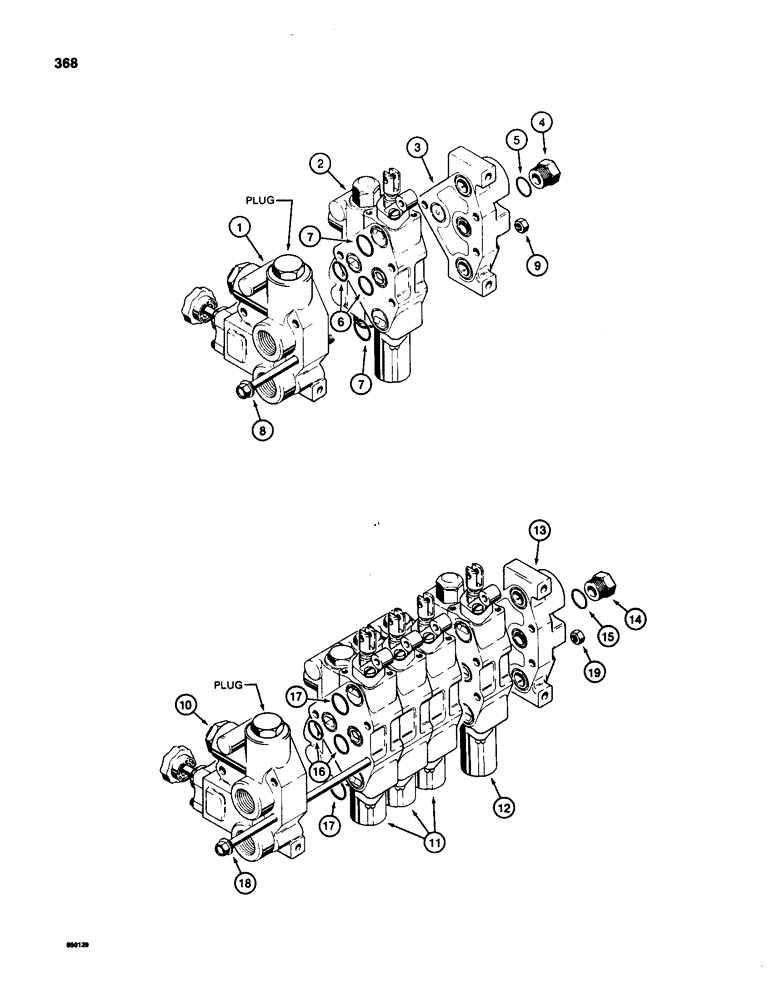

Запчасти Case 580SD (368) - THREE-POINT HITCH CONTROL VALVES, WITH FLOW CONTROL REGULATOR KNOB (08) - HYDRAULICS

REF

INSTRUCTION

ONE SPOOL VALVE ASSEMBLY

1шт.

D124204

VALVE

CONTROL VALVE - hitch, one-spool, Ref. 1 has a plugged main relief port, with flow control regulator knob, Includes: Ref. 1 - 9

1шт.

1

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 372

1шт.

2

N8692

KNIFE SECTION

SECTION - lift, parts list Figure 376

1шт.

D122553

PLATE

END SECTION - cover plate, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- cover plate, 1-1/16" - 12 NC, Includes: Ref. 5

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

6

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID

4шт.

7

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

4шт.

8

N7039

BOLT

- tie, 3/8" - 24 NF x 4-1/4"

3шт.

9

129-123

NUT,3/8"-24, G5

3шт.

REF

INSTRUCTION

FOUR SPOOL VALVE ASSEMBLY

1шт.

D124205

VALVE

CONTROL VALVE - hitch, four-spool, Ref. 10 has a plugged main relief port, with flow control regulator knob, Includes: Ref. 10 - 19

1шт.

10

D122551

VALVE

END SECTION - inlet-outlet, parts list Figure 372, four-spool valve assembly

1шт.

11

N8691

KNIFE SECTION

SECTION - implement, pitch and tilt, parts list Figure 380, four-spool valve assembly

3шт.

12

N8692

KNIFE SECTION

SECTION - lift, parts list Figure 376, four-spool valve assembly

1шт.

D122553

PLATE

END SECTION - cover plate, four-spool valve assembly, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - cover, four-spool valve assembly

1шт.

14

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- cover plate, 1-1/16" - 12 NC, four-spool valve assembly, Includes: Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, four-spool valve assembly

1шт.

16

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (21 mm) ID, four-spool valve assembly

10шт.

17

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID, four-spool valve assembly

10шт.

18

D86578

BOLT

- tie, 3/8" - 24 NF x 9-1/2", four-spool valve assembly

3шт.

19

129-123

NUT,3/8"-24, G5

Four-spool valve assembly 3/8"-24, G5

3шт.
