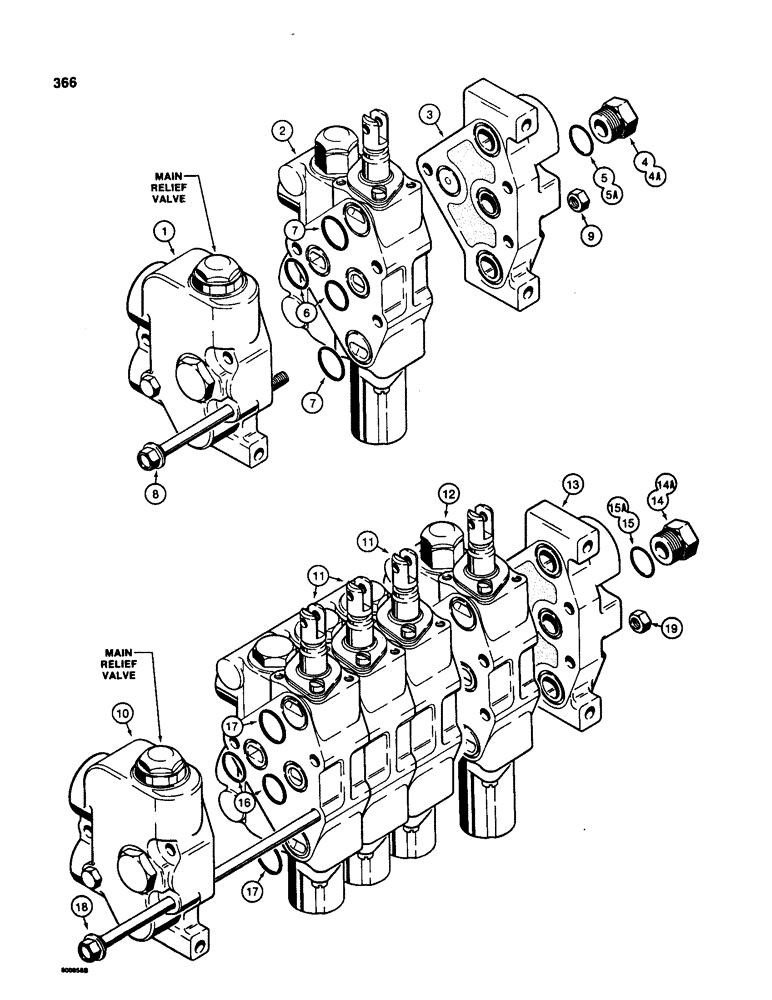

Запчасти Case 580SD (366) - THREE-POINT HITCH CONTROL VALVES, WITHOUT FLOW CONTROL REGULATOR KNOB (08) - HYDRAULICS

REF

INSTRUCTION

ONE SPOOL VALVE ASSEMBLY

1шт.

D93604

CONTROL VALVE - hitch, one spool, Ref. 1 has a main relief valve, without flow control regulator knob, Includes: Ref. 1 - 19

1шт.

1

N7025

BACK PLATE

SECTION - inlet-outlet, parts list Figure 370

1шт.

2

N7027

LARGE PLATE

SECTION - lift, parts list Figure 374

1шт.

D122553

PLATE

END SECTION - cover plate, uses 1-1/16" plug, Includes: Ref. 3 - 5A

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - end

1шт.

4

86512512

PLUG,7/8" - 14 ORB

End plate, N7028 section Hex Hd, 7/8"-14 ORB

1шт.

4a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- end plate, 1-1/16" - 12 NF thread, D122553 section, Includes: Ref. 5 and 5A

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5157 plug

1шт.

5a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5158 plug

1шт.

6

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (206 mm) ID

4шт.

7

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (238 mm) ID

4шт.

8

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- tie, special

3шт.

9

425-106

NUT,3/8"-16, Cl 5

- hex, self-locking, 3/8" - 24 NF, plated

3шт.

REF

INSTRUCTION

FOUR SPOOL CONTROL VALVE

1шт.

D93603

CONTROL VALVE - hitch, four spool, item 10 has a main relief valve, without flow control regulator knob

1шт.

10

N7025

BACK PLATE

SECTION - inlet-outlet, parts list Figure 370, four-spool control valve

1шт.

11

N7026

VALVE BLOCK

SECTION - pitch, tilt, and implement, parts list Figure 378, four-spool control valve

3шт.

12

N7027

LARGE PLATE

SECTION - lift, parts list Figure 374,four-spool control valve

1шт.

N7028

COVER

END SECTION - cover plate, uses 7/8" plug, no longer available, order D122553 section; includes Ref 13 - 15A

1шт.

D122553

PLATE

END SECTION - cover plate, uses 1-1/16" plug, four-spool control valve, Includes: Ref. 13 - 15A

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - end, four-spool control valve

1шт.

14

86512512

PLUG,7/8" - 14 ORB

End plate, N7028 section, four-spool control valve Hex Hd, 7/8"-14 ORB

1шт.

14a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- end plate, 1-1/16" - 12 NF thread, D122553 section, four-spool control valve, Includes: Ref. 15 and 15A

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 218-5157 plug, four-spool control valve

1шт.

15a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5158 plug, four-spool control valve

1шт.

16

A15888

O-RING,0.801" ID x 0.941" OD x 0.07"

- between sections, 13/16" (206 mm) ID, four-spool control valve

10шт.

17

A62239

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (238 mm) ID, four-spool control valve

10шт.

18

D86578

BOLT

- tie, special, four-spool control valve

3шт.

19

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, plated, four-spool control valve

3шт.
